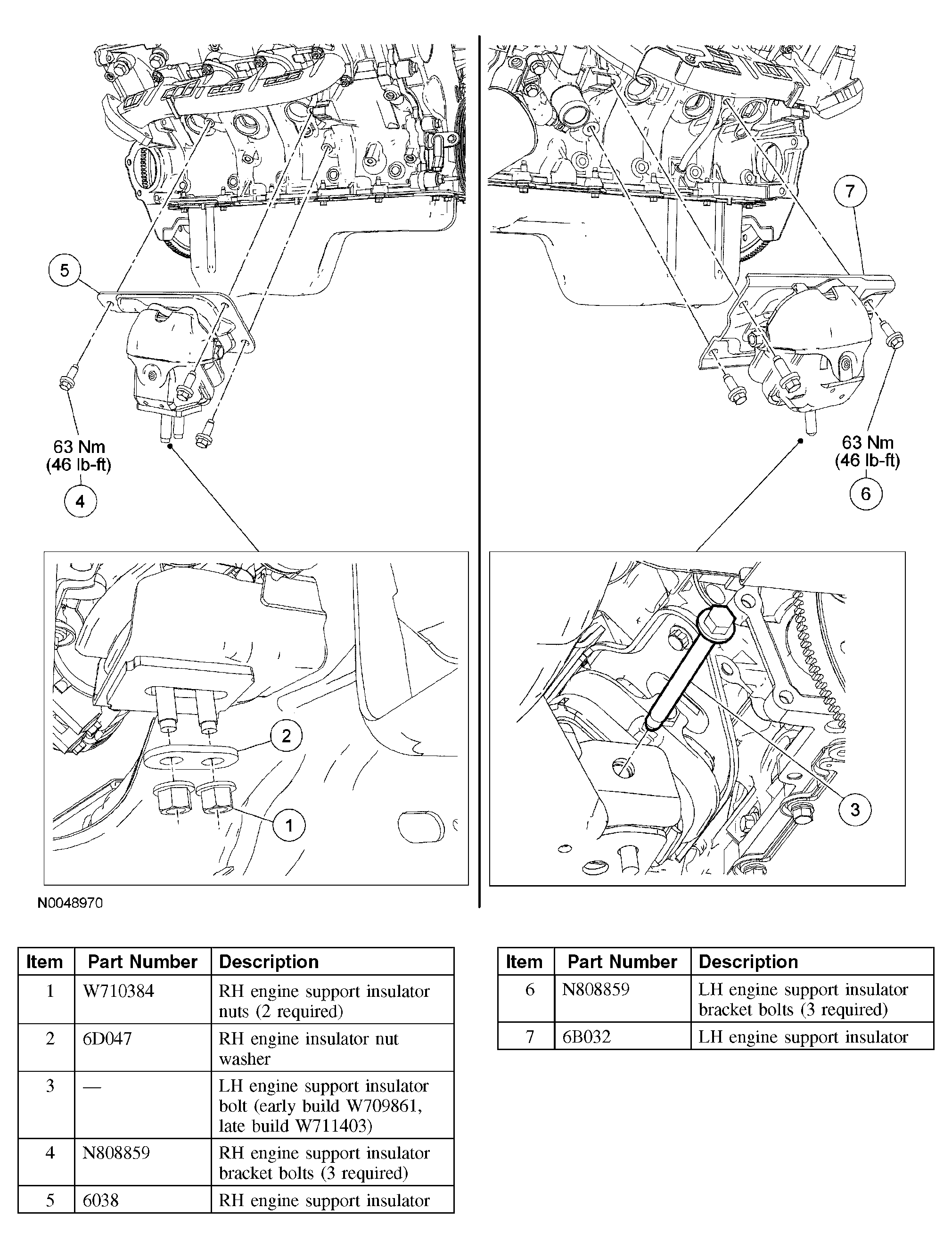

Engine Support Insulators: Notes
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) CHART
|
|
3-Bar Engine Support 303-F070 |
|
|
Support Hook 303-F071 |
|
|
Support Bracket, Engine 303-639 |
MATERIAL ITEM SPECIFICATION
| Item |
Specification |
| Threadlock 262 TA-26 or equivalent |
WSK-M2G351-A6 |
Courtesy of FORD MOTOR CO.
