Engine Front Cover: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) CHART

	Installer, Crankshaft Front Seal 303-335 (T88T-6701-A)
	Remover, Crankshaft Front Seal 303-107 (T74P-6700-A)
	Installer, Crankshaft Front Seal 303-635
	Remover, Crankshaft Vibration Damper 303-009 (T58P-6316-D)
	Installer, Crankshaft Vibration Damper 303-102 (T74P-6316-B)
	Installer, Power Steering Pump Pulley 211-185 (T91P-3A733-A)
	Remover, Power Steering Pump Pulley 211-016 (T69L-10300-B)
	Installer Set, Teflon® Seal 211-D207 (D90P-3517-A) or equivalent

MATERIAL ITEM SPECIFICATION

Item	Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (in Canada Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12) or equivalent	WSS-M2C930-A
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-

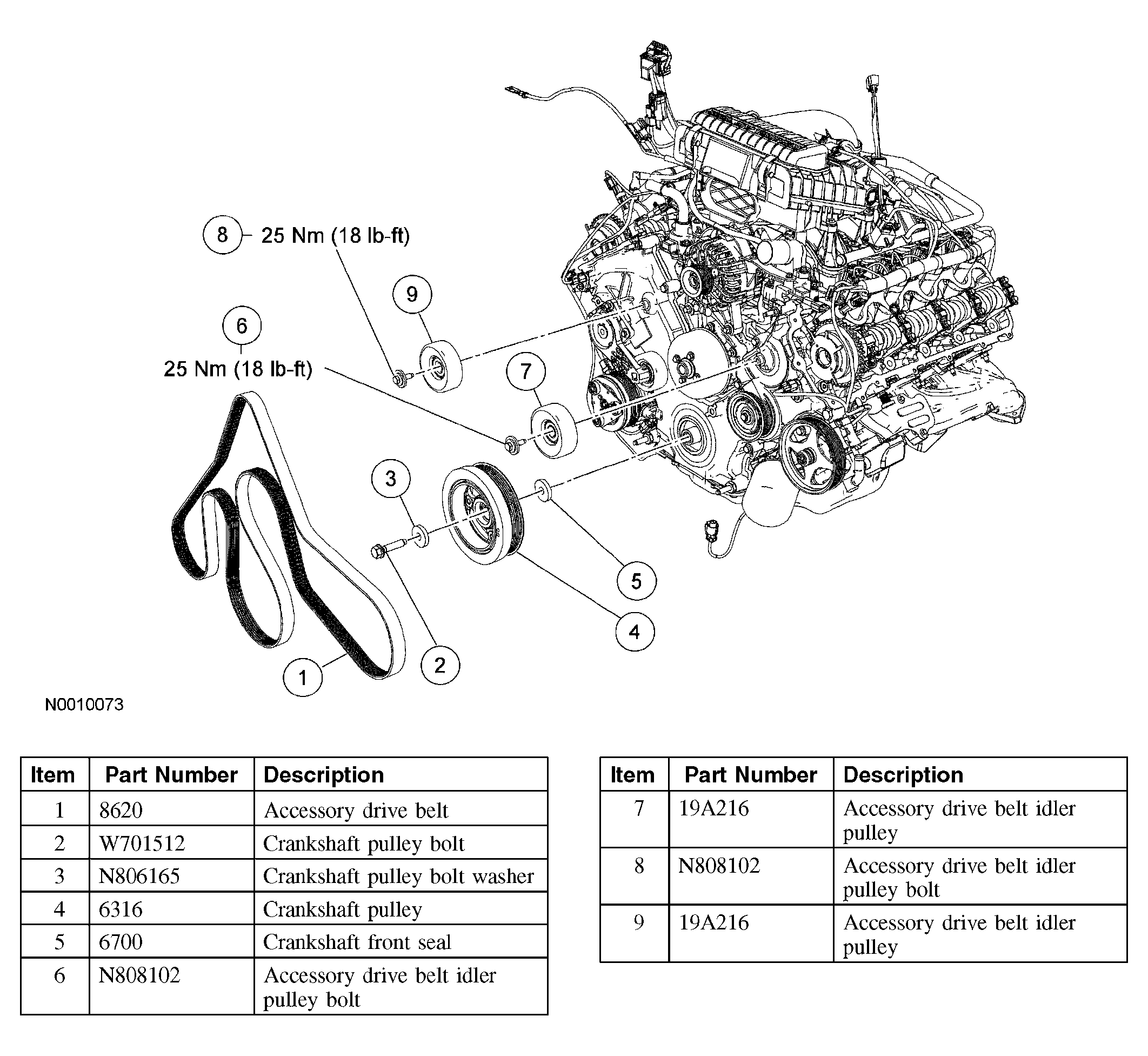

Fig 1: Engine Front Cover (Items 1-9)

Courtesy of FORD MOTOR CO.

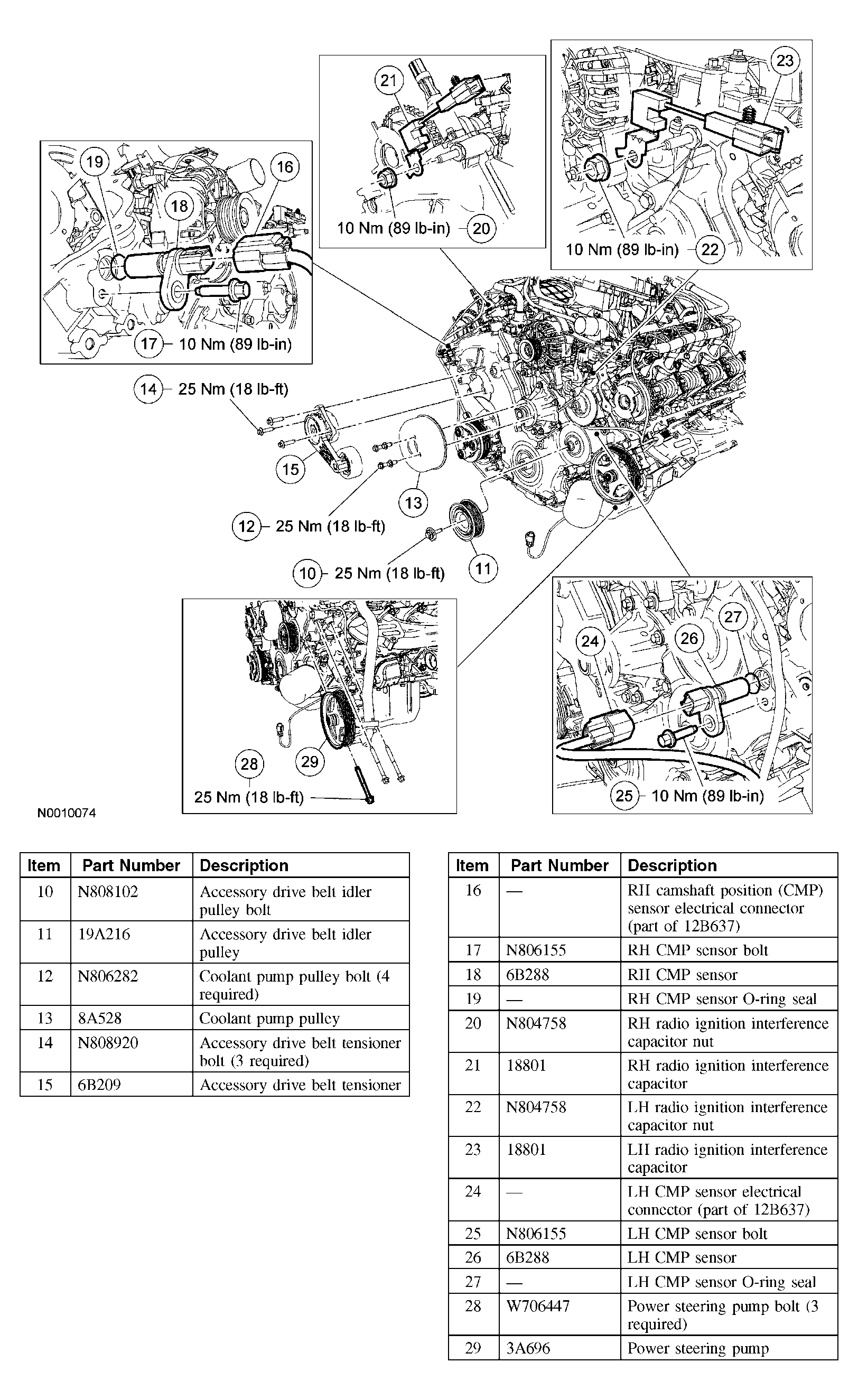

Fig 2: Engine Front Cover (Items 10-29)

Courtesy of FORD MOTOR CO.

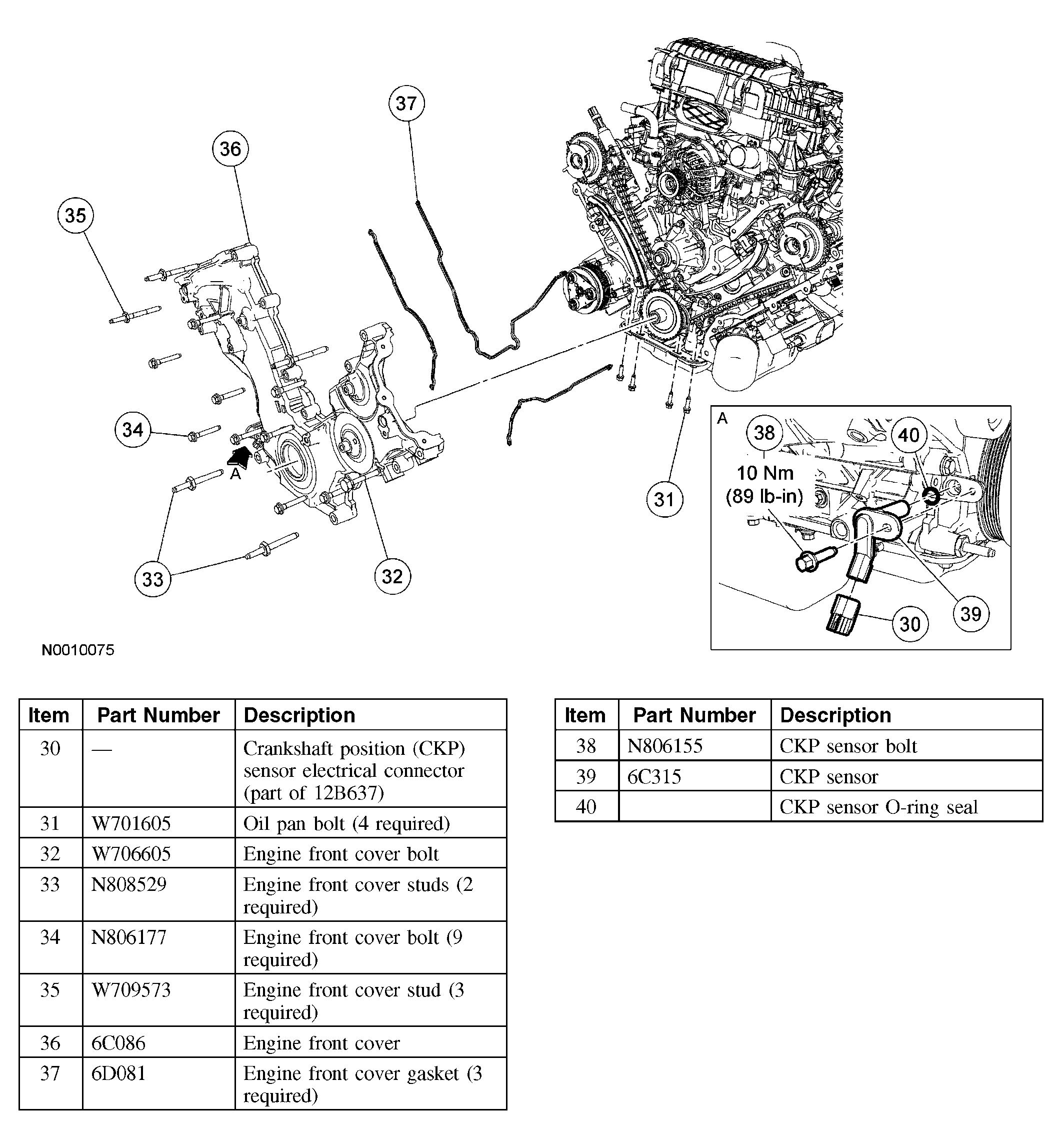

Fig 3: Engine Front Cover (Items 30-40)

Courtesy of FORD MOTOR CO.
