Valve Cover - RH: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIALS

Item Specification
Motorcraft Metal Surface Prep ZC-31 -
Silicone Gasket Remover ZC-30 -
Silicone Gasket and Sealant TA-30 WSE-M4G323-A4
Instant Gel Adhesive TA-19 WSK-M2G402-A4
Fig 1: Identifying Valve Cover Components - RH (Items 1-5)
G03962372Courtesy of FORD MOTOR CO.

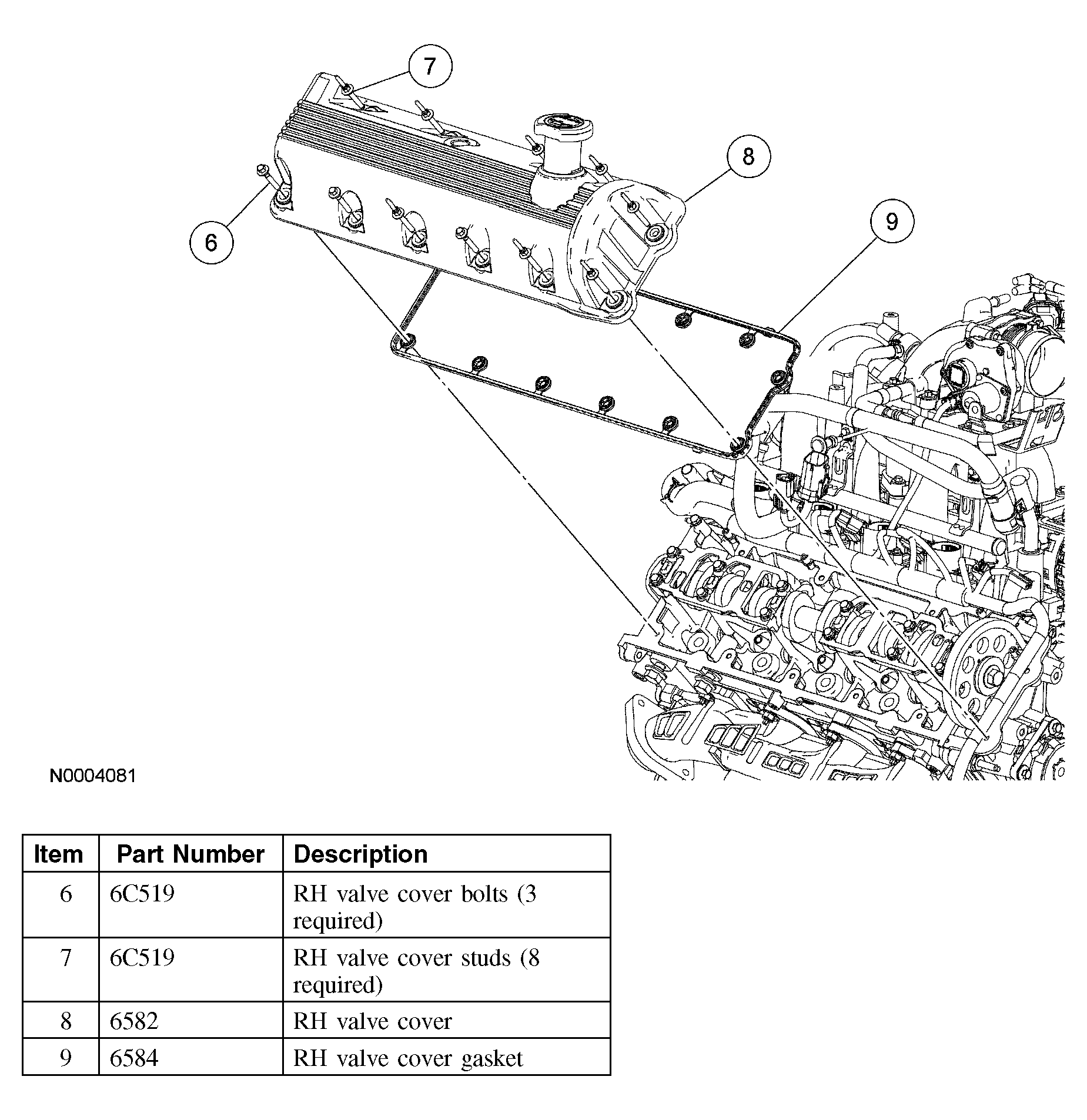

Fig 2: Identifying Valve Cover Components - RH (Items 6-9)
G03962373Courtesy of FORD MOTOR CO.
