Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply instant gel adhesive completely around the gasket groove in the valve cover and install the new valve cover gasket.

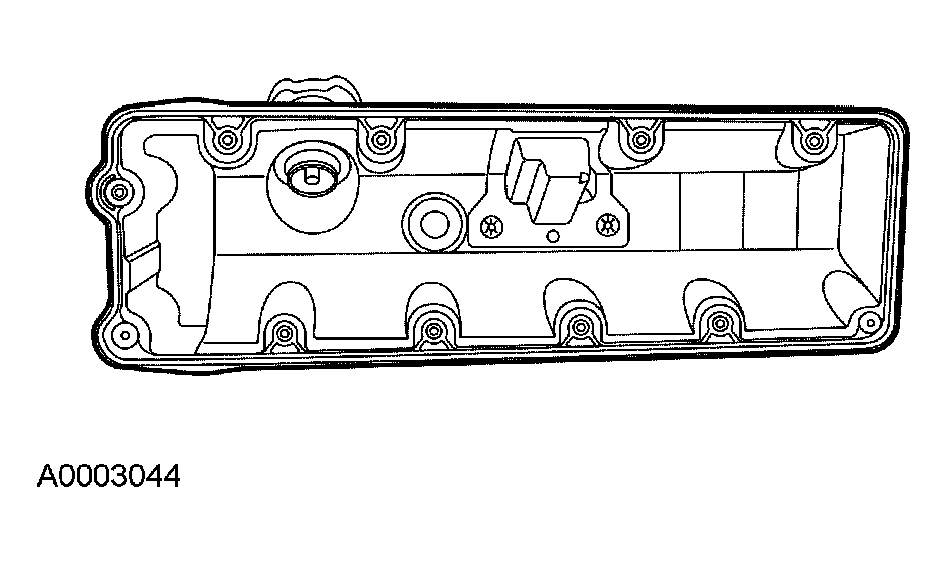

    Fig 1: Applying Instant Gel Adhesive Completely Around Gasket Groove In Valve Cover
    G03962376Courtesy of FORD MOTOR CO.
  2. NOTE: If the valve cover is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 4 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.
    Fig 2: Applying Silicone Gasket And Sealant In 2 Places Where Engine Front Cover Meets The Cylinder Head
    G03947588Courtesy of FORD MOTOR CO.
  3. Apply the silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head.
  4. Install the valve cover and tighten the valve cover bolts in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).
    Fig 3: Tightening Sequence For Valve Cover Bolts
    G03962378Courtesy of FORD MOTOR CO.
  5. Install the suction accumulator and install the nuts.
    • Tighten to 6 Nm (53 lb-in).

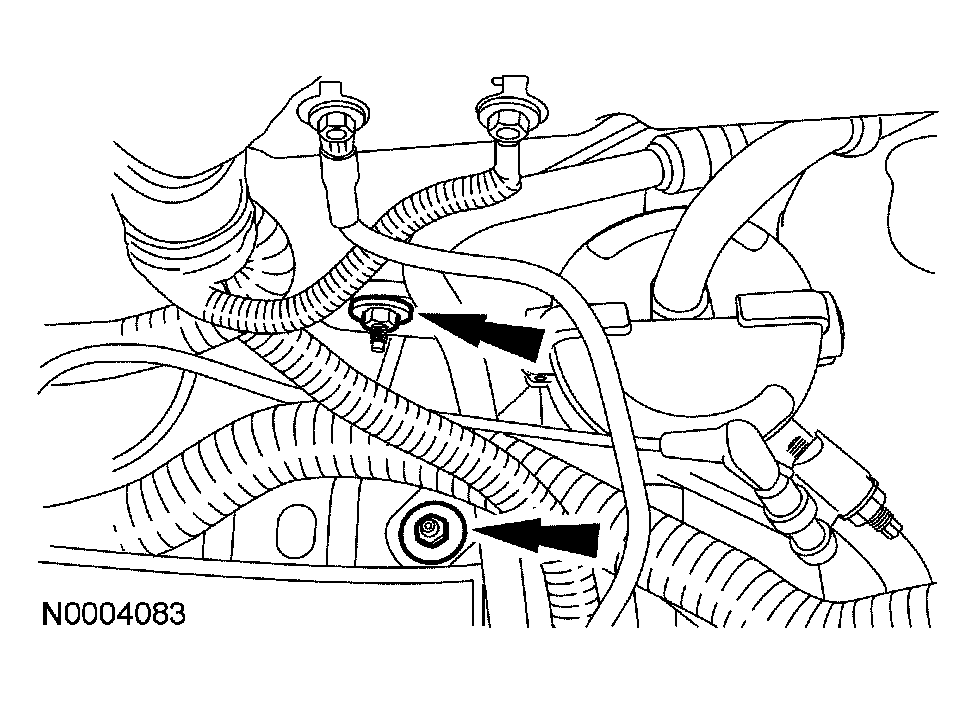

    Fig 4: Installing Suction Accumulator And Installing Nuts
    G03962375Courtesy of FORD MOTOR CO.
  6. Attach the 5 engine wiring harness retainers to the valve cover stud bolts.
  7. Position the transmission fluid level indicator tube and install the bolt.
    • Tighten to 10 Nm (89 lb-in).

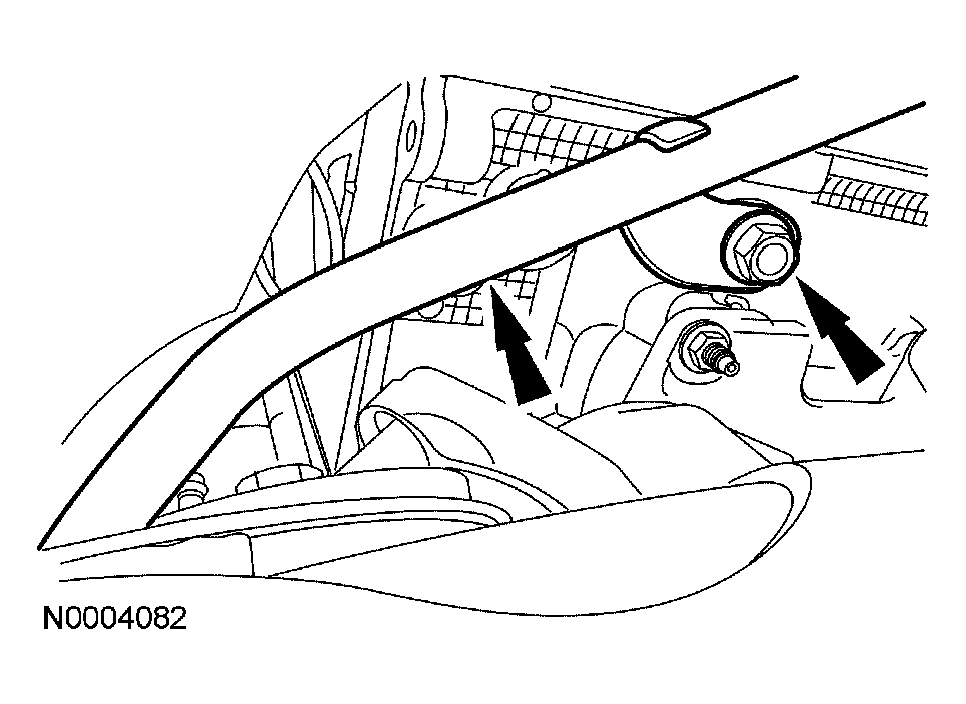

    Fig 5: Positioning Transmission Fluid Level Indicator Tube And Installing Bolt
    G03962374Courtesy of FORD MOTOR CO.
  8. Position the PCV tube and connect the quick connect couplings. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  9. Install the PCM and bracket. For additional information, refer to ELECTRONIC ENGINE CONTROLS .
