Valve Cover - LH: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIALS

Item	Specification
Motorcraft Metal Surface Prep ZC-31	-
Silicone Gasket Remover ZC-30	-
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Instant Gel Adhesive TA-19	WSK-M2G402-A4

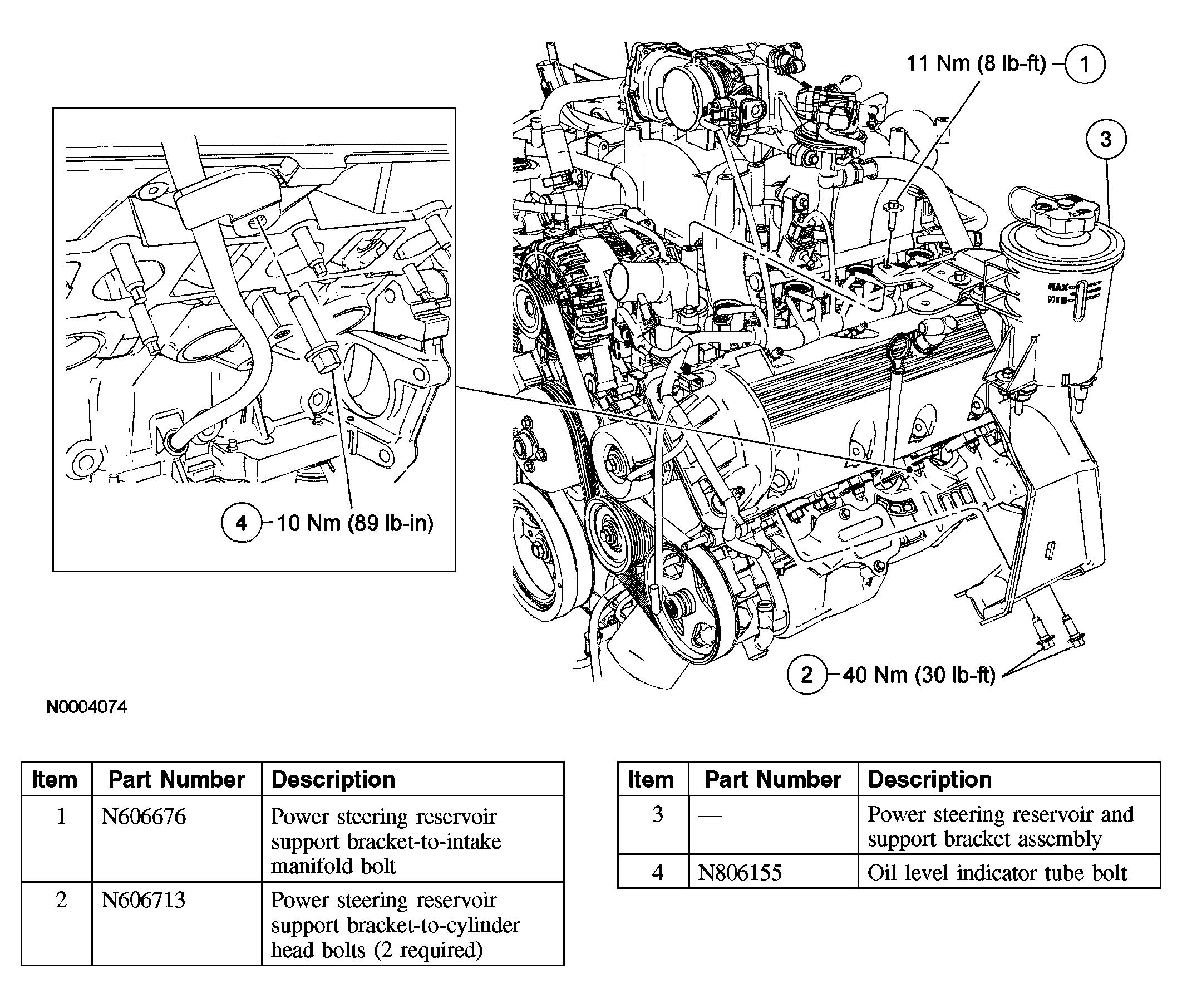

Fig 1: Identifying Valve Cover - LH Components (Items 1-4)

Courtesy of FORD MOTOR CO.

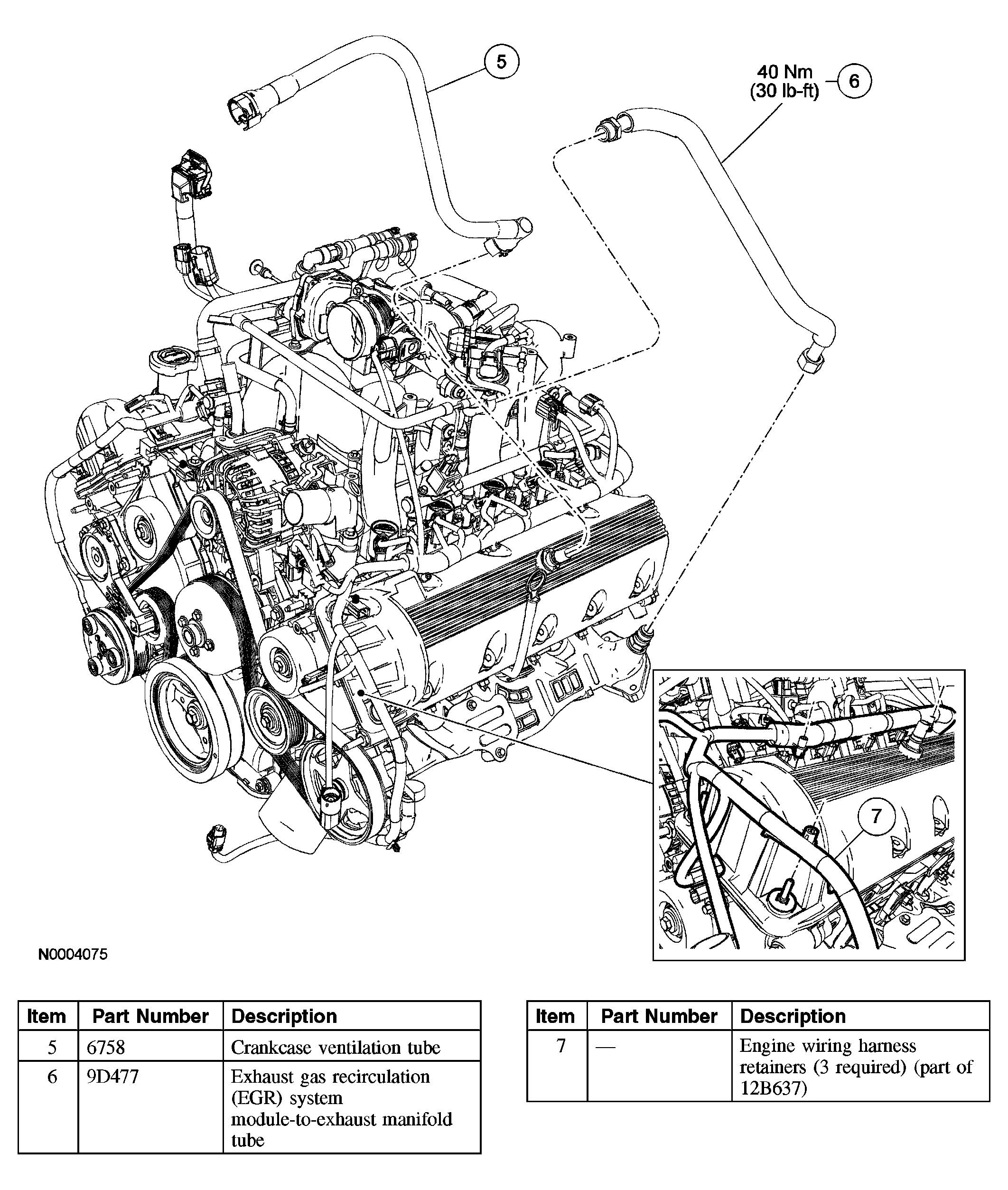

Fig 2: Identifying Valve Cover - LH Components (Items 5-7)

Courtesy of FORD MOTOR CO.

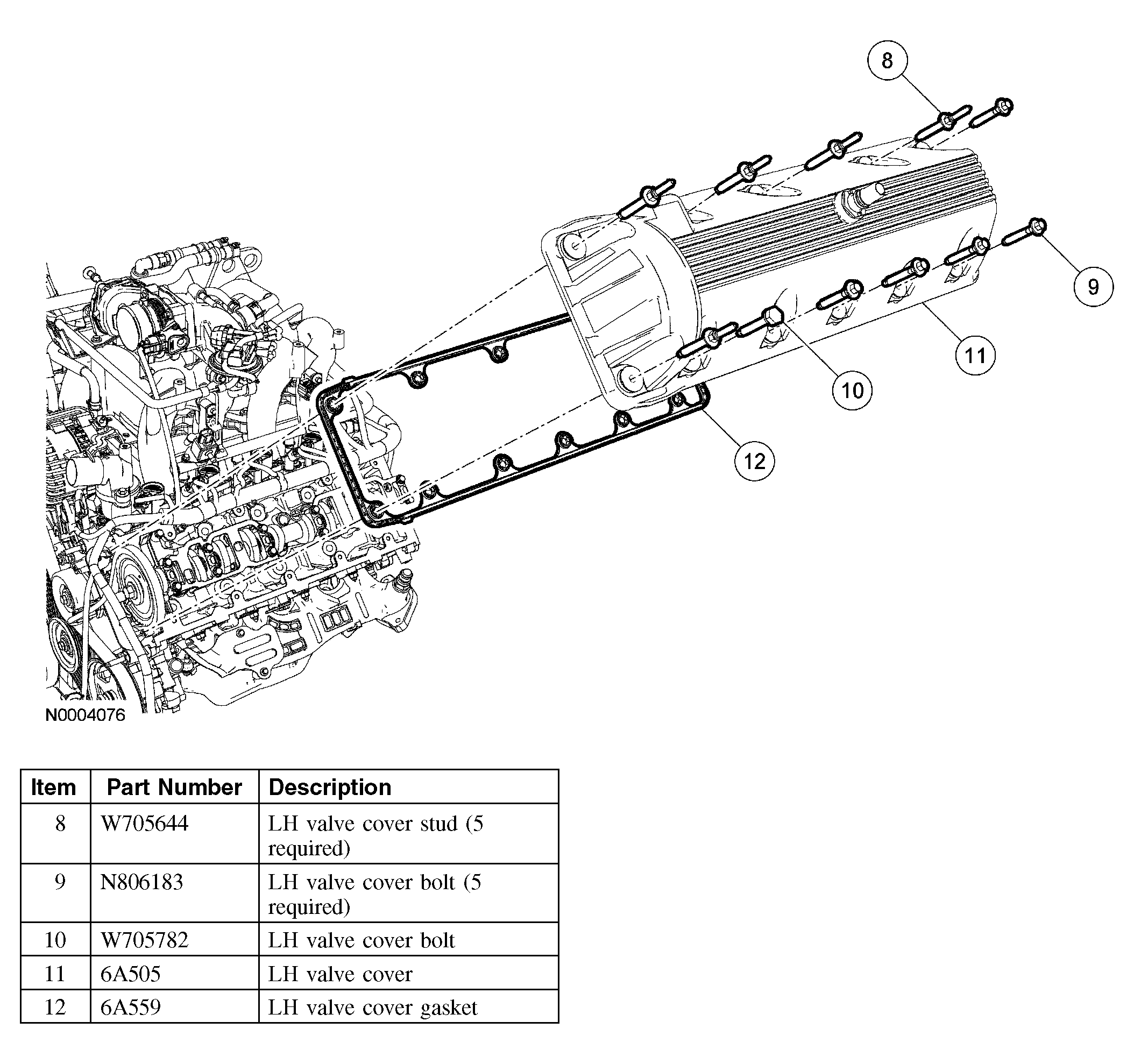

Fig 3: Identifying Valve Cover - LH Components (Items 8-12)

Courtesy of FORD MOTOR CO.
