Intake Manifold: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

MATERIALS

Item	Specification
Silicone Gasket Remover ZC-30	-
Motorcraft Metal Surface Prep ZC-31	-

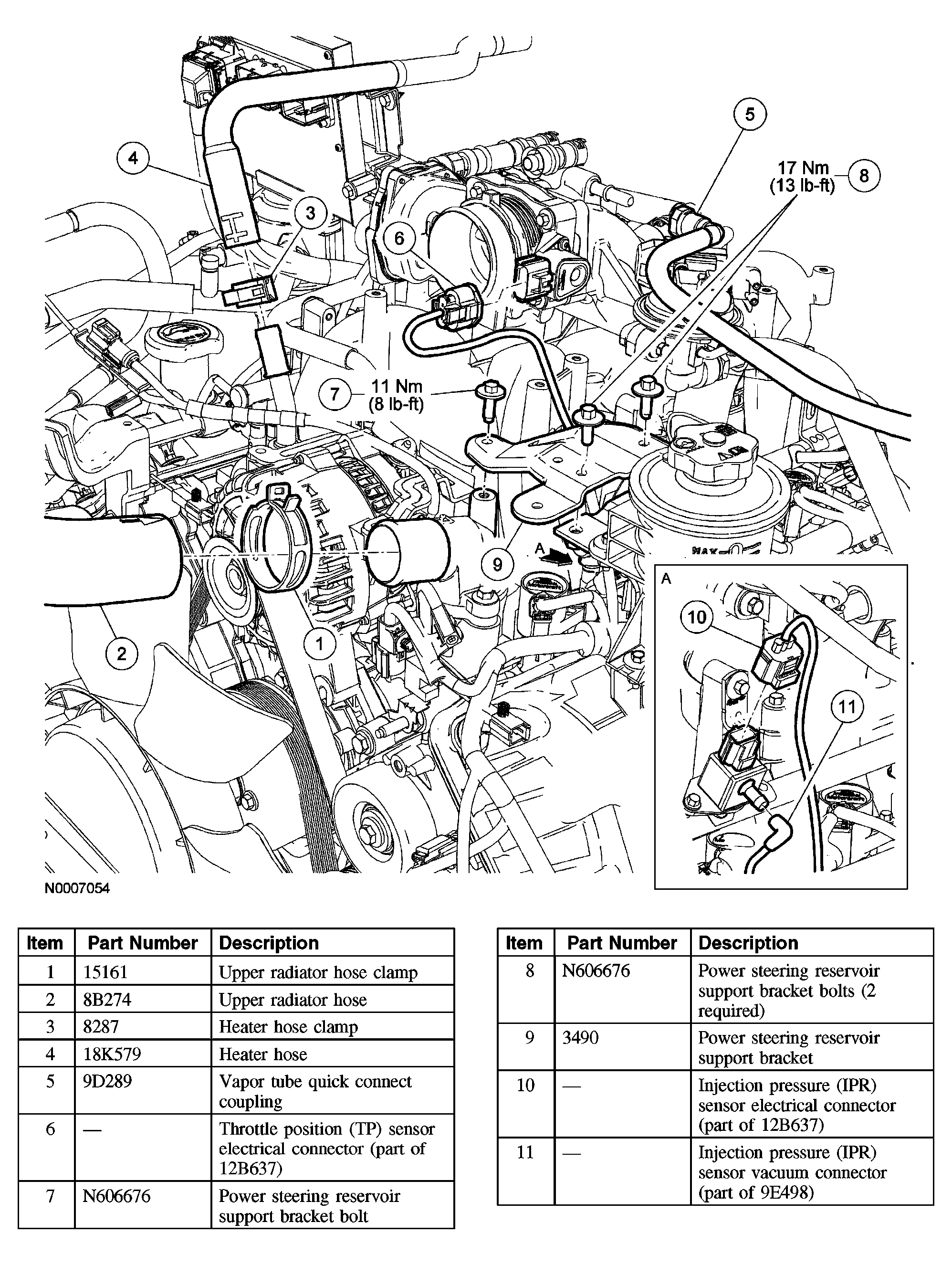

Fig 1: Identifying Intake Manifold Components (Items 1-11)

Courtesy of FORD MOTOR CO.

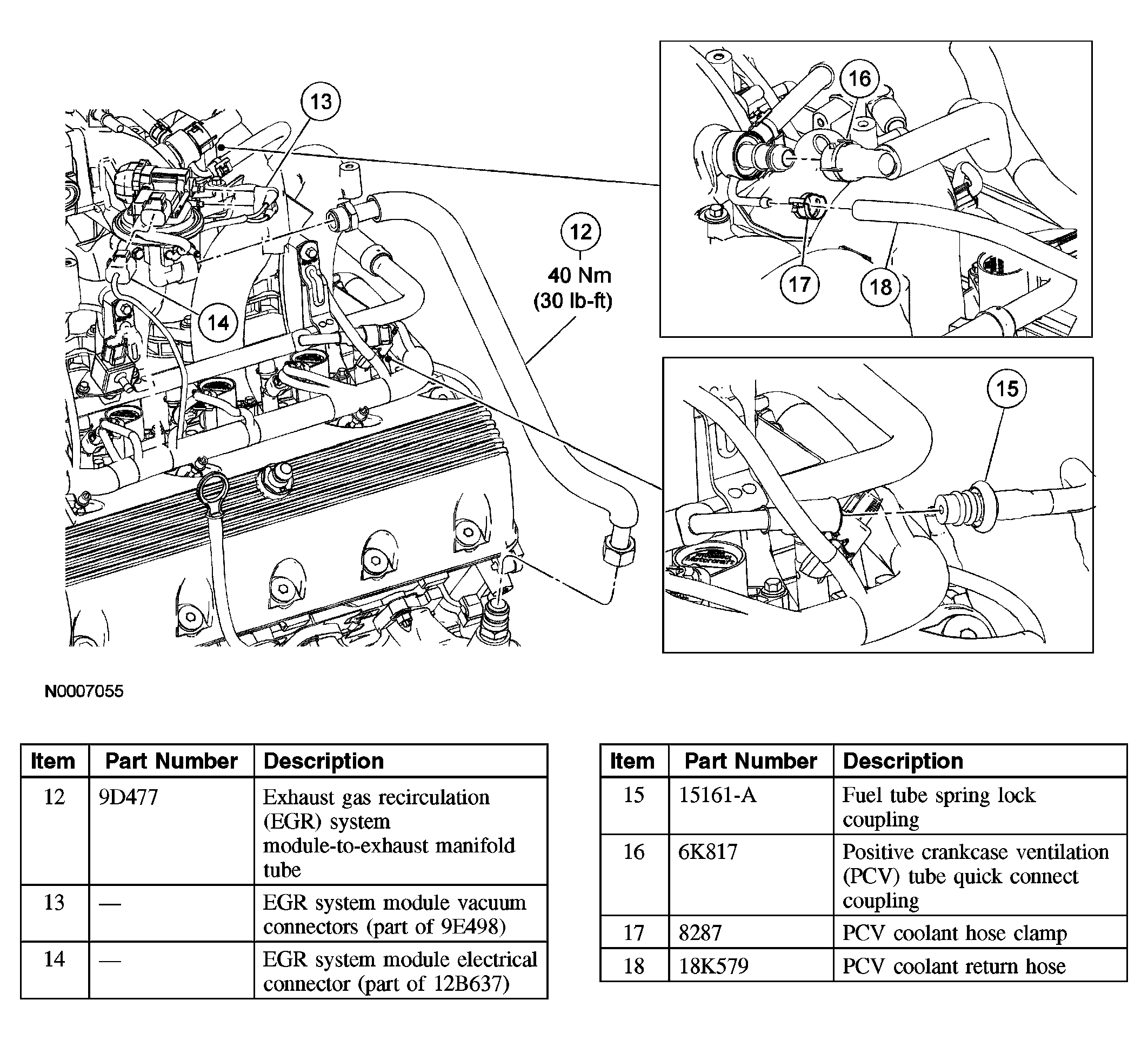

Fig 2: Identifying Intake Manifold Components (Items 12-18)

Courtesy of FORD MOTOR CO.

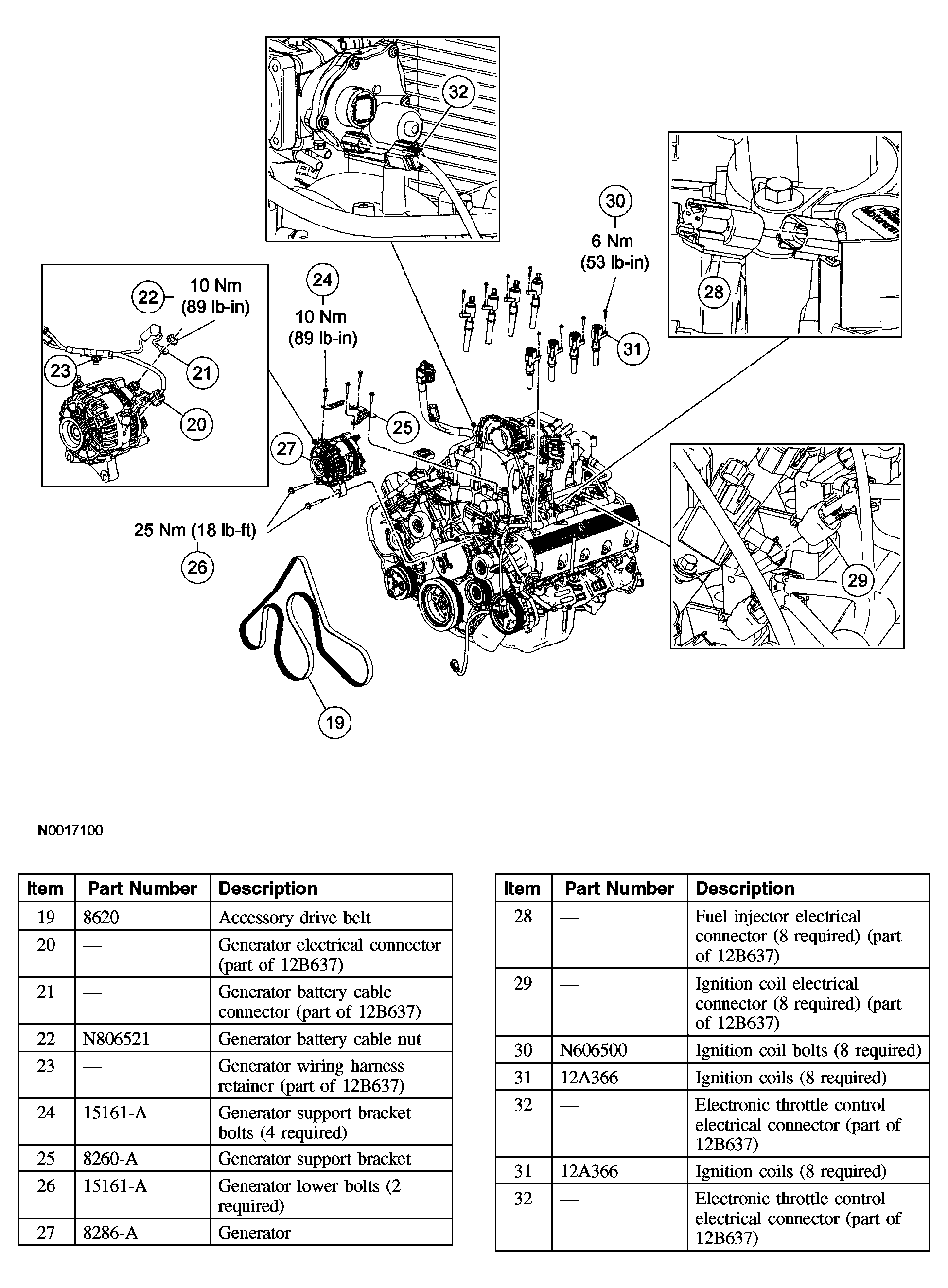

Fig 3: Identifying Intake Manifold Components (Items 19-32)

Courtesy of FORD MOTOR CO.

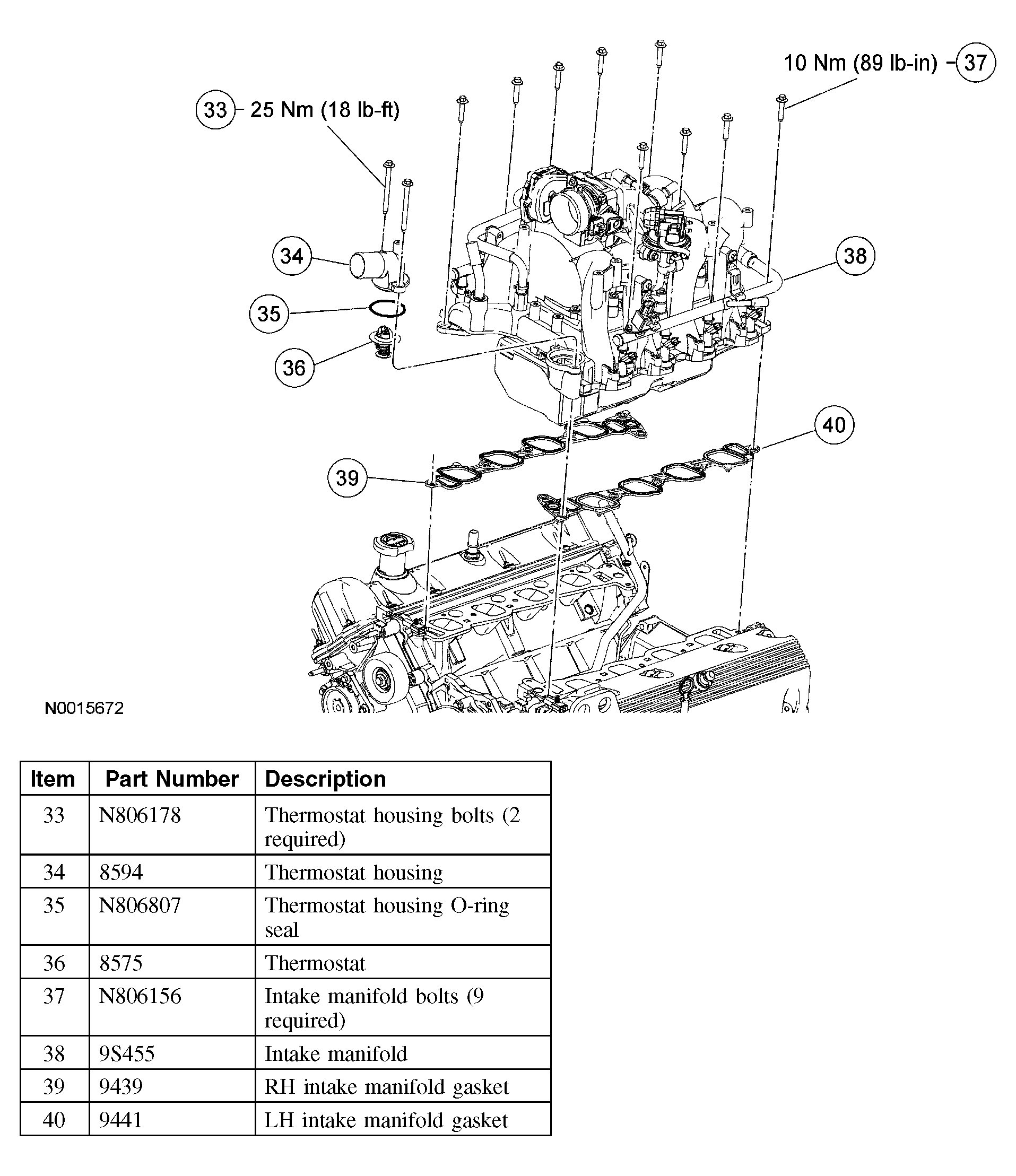

Fig 4: Identifying Intake Manifold Components (Items 33-40)

Courtesy of FORD MOTOR CO.
