Engine Support Insulators: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Remove the air cleaner and the air cleaner outlet pipe and resonator. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  4. Remove the generator. For additional information, refer to GENERATOR AND REGULATOR .
  5. Remove the bolts and position the cooling fan shroud away from the radiator.
    Fig 1: Removing Bolts And Positioning Cooling Fan Shroud Away From Radiator
    G03920100Courtesy of FORD MOTOR CO.
  6. Disconnect the exhaust gas recirculation (EGR) system module-to-exhaust manifold tube upper fitting.

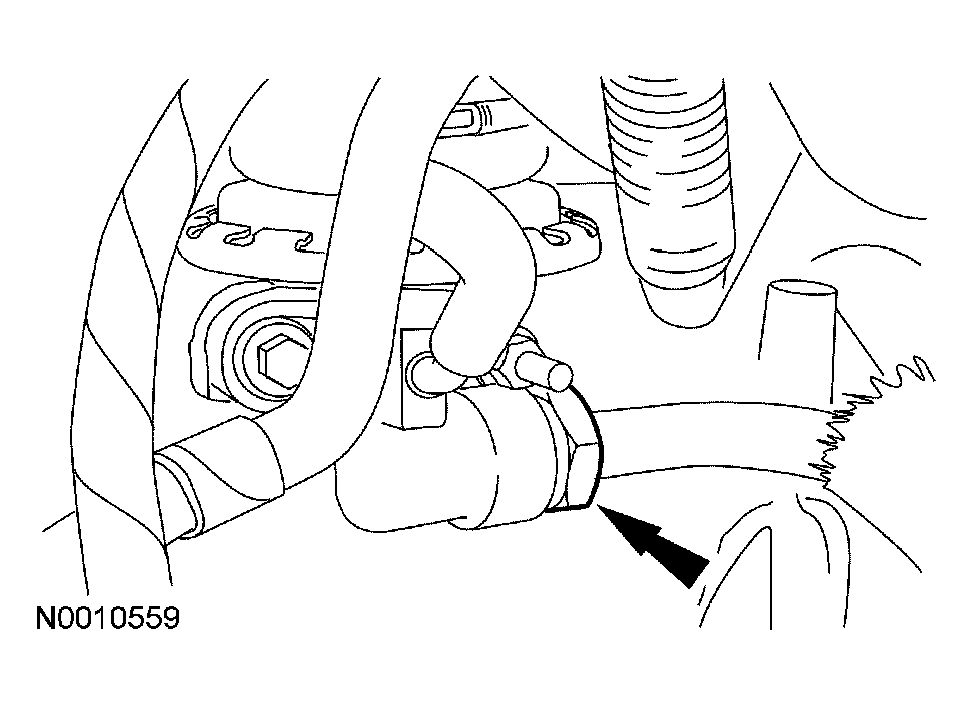

    Fig 2: Disconnecting Exhaust Gas Recirculation (EGR) System Module-To-Exhaust Manifold Tube Upper Fitting
    G03962551Courtesy of FORD MOTOR CO.
  7. Disconnect the brake booster vacuum hose.

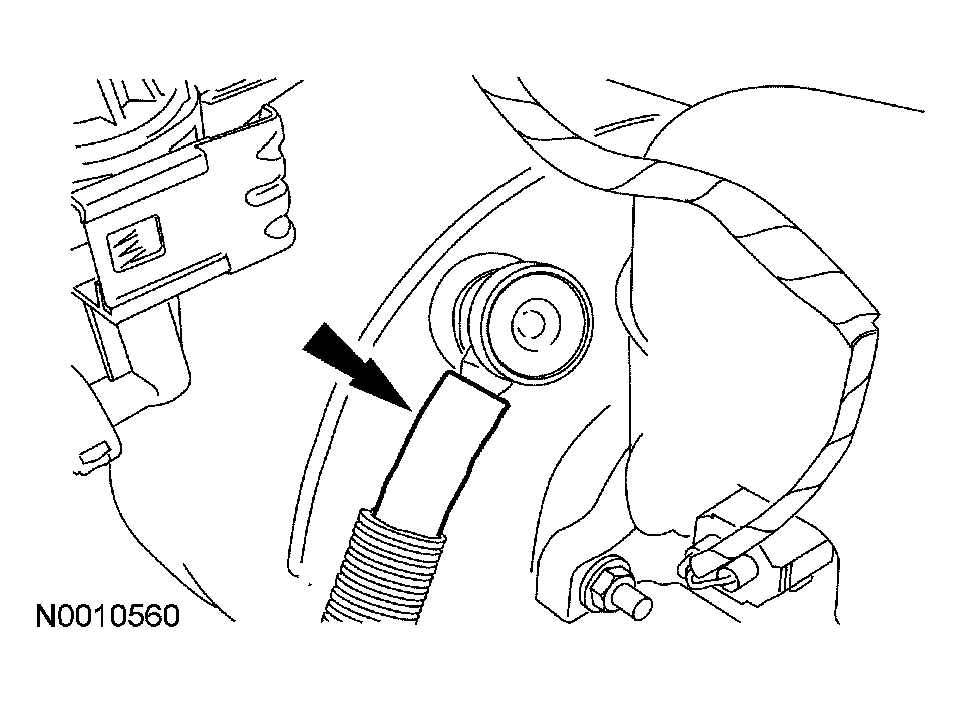

    Fig 3: Disconnecting Brake Booster Vacuum Hose
    G03962552Courtesy of FORD MOTOR CO.
  8. Disconnect the throttle position (TP) sensor electrical connector.

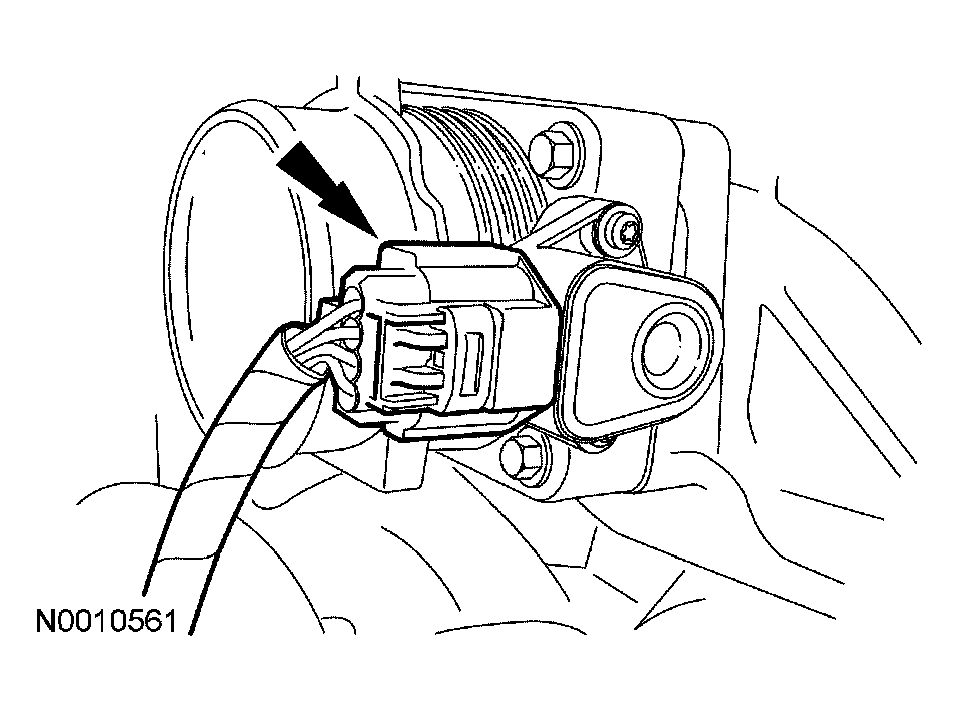

    Fig 4: Disconnecting Throttle Position (TP) Sensor Electrical Connector
    G03962553Courtesy of FORD MOTOR CO.
  9. Disconnect the vapor tube quick connect coupling. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

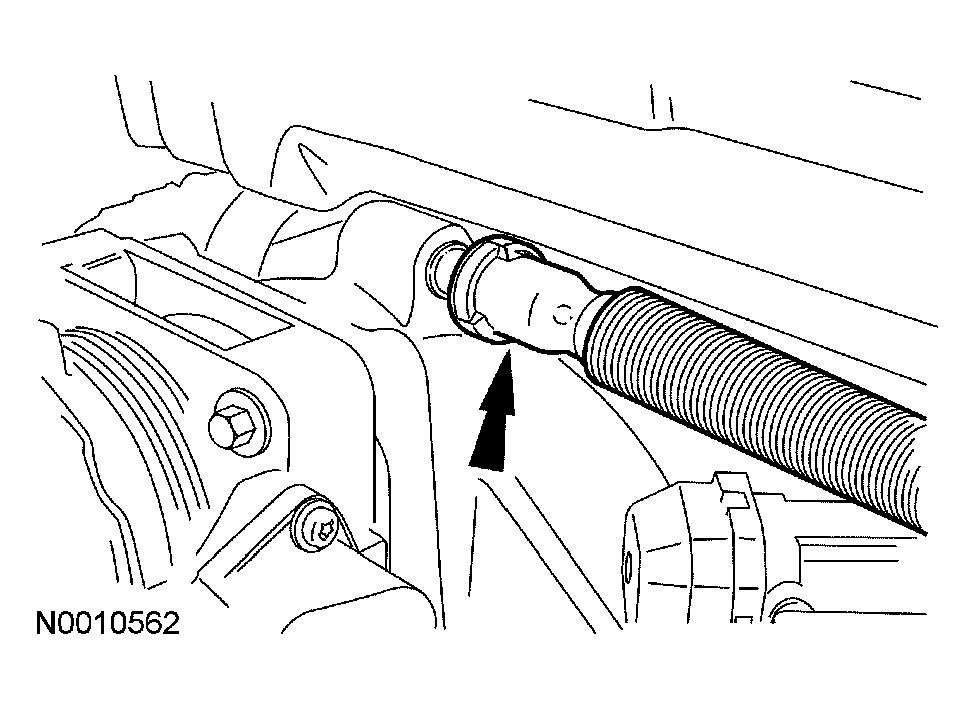

    Fig 5: Disconnecting Vapor Tube Quick Connect Coupling
    G03962554Courtesy of FORD MOTOR CO.
  10. Disconnect the EGR system module vacuum and electrical connectors.

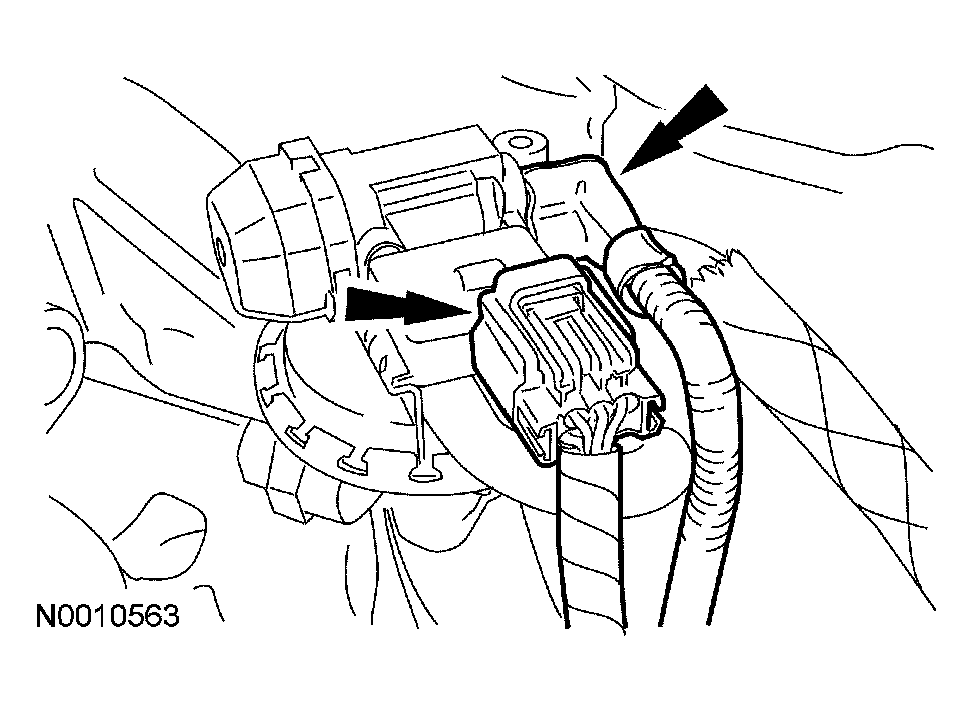

    Fig 6: Disconnecting EGR System Module Vacuum And Electrical Connectors
    G03962555Courtesy of FORD MOTOR CO.
  11. Disconnect the positive crankcase ventilation (PCV) tube quick connect fitting at the rear of the intake manifold. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
    Fig 7: Disconnecting Positive Crankcase Ventilation (PCV) Tube Quick Connect Fitting
    G03962556Courtesy of FORD MOTOR CO.
  12. Disconnect the PCV tube quick connect fitting at the RH valve cover. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .

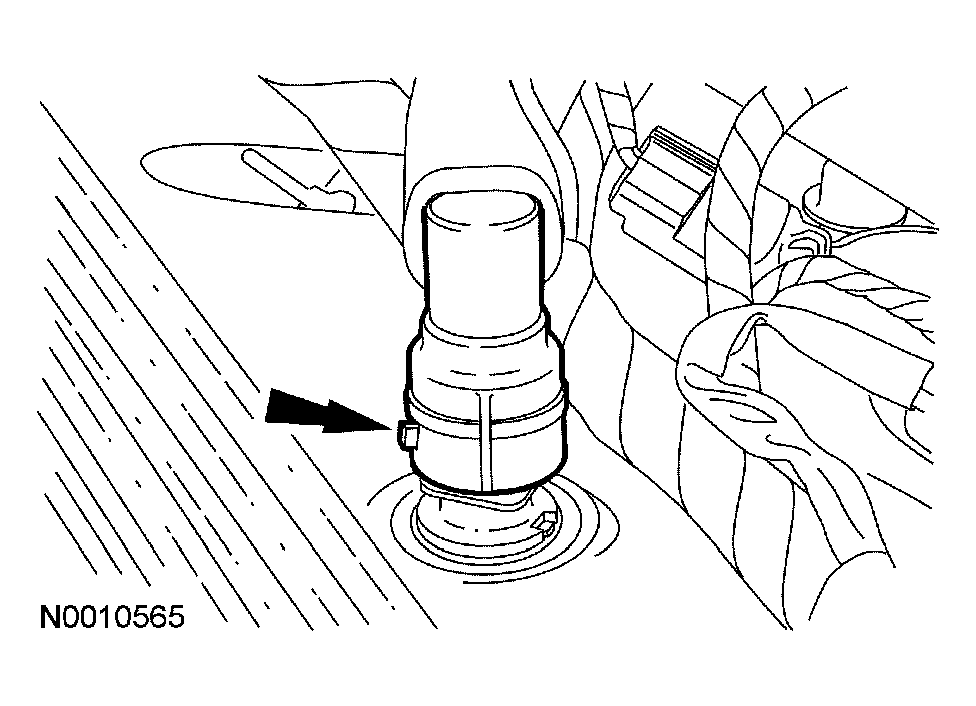

    Fig 8: Disconnecting PCV Tube Quick Connect Fitting At RH Valve Cover
    G03962557Courtesy of FORD MOTOR CO.
  13. Disconnect the electronic throttle control electrical connector.

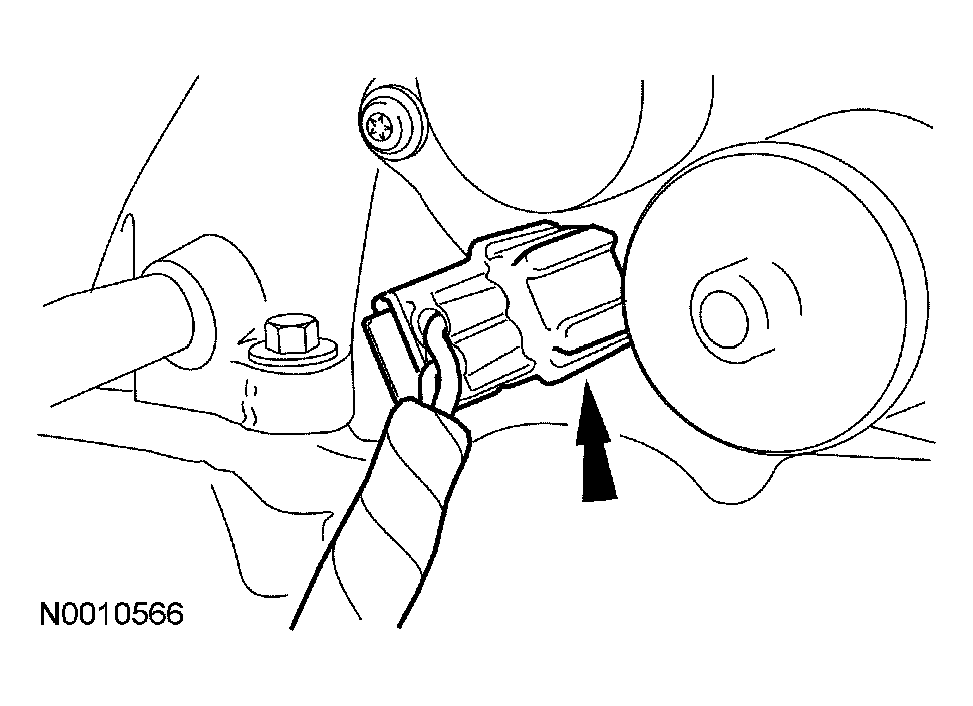

    Fig 9: Disconnecting Electronic Throttle Control Electrical Connector
    G03962558Courtesy of FORD MOTOR CO.
  14. Disconnect the throttle body (TB) spacer vacuum hose.

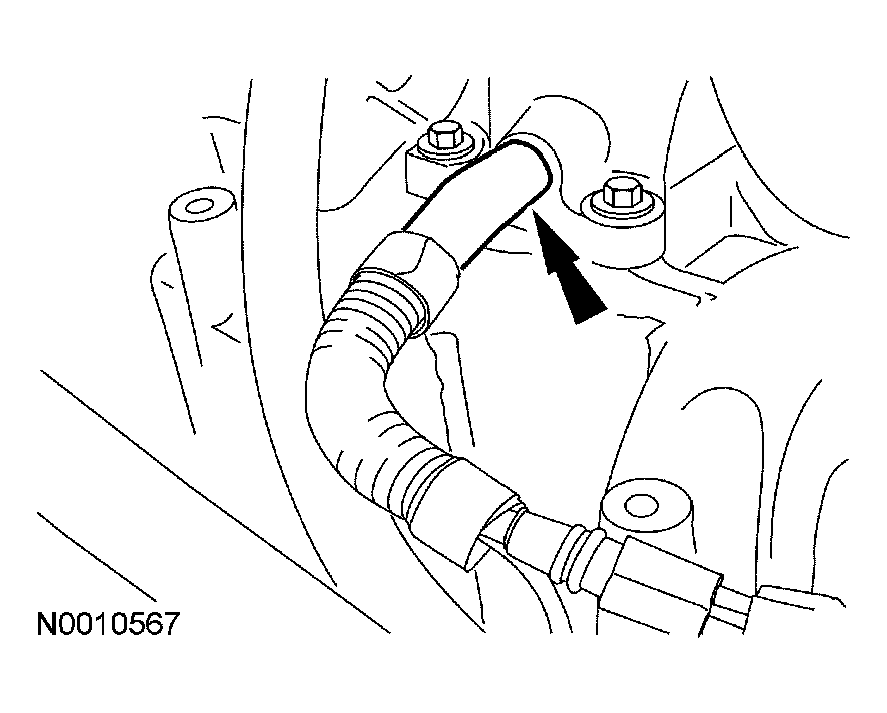

    Fig 10: Disconnecting Throttle Body (TB) Spacer Vacuum Hose
    G03962559Courtesy of FORD MOTOR CO.
  15. Remove the 4 TB spacer bolts and position the TB assembly aside.
    • Discard the TB spacer gasket.

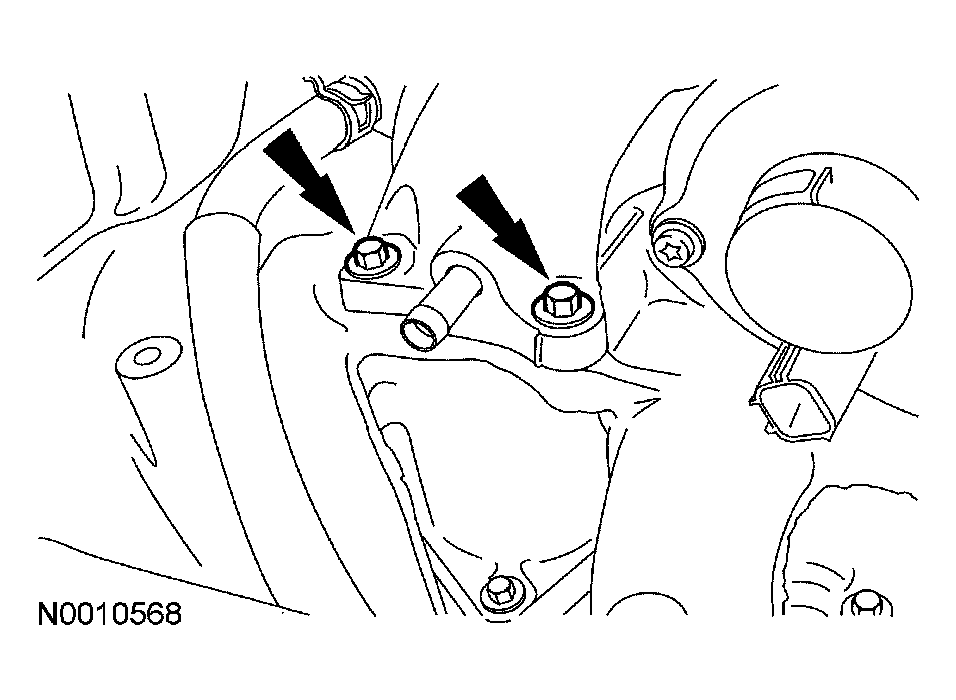

    Fig 11: Removing TB Spacer Bolts
    G03962560Courtesy of FORD MOTOR CO.
  16. Install the special tool.

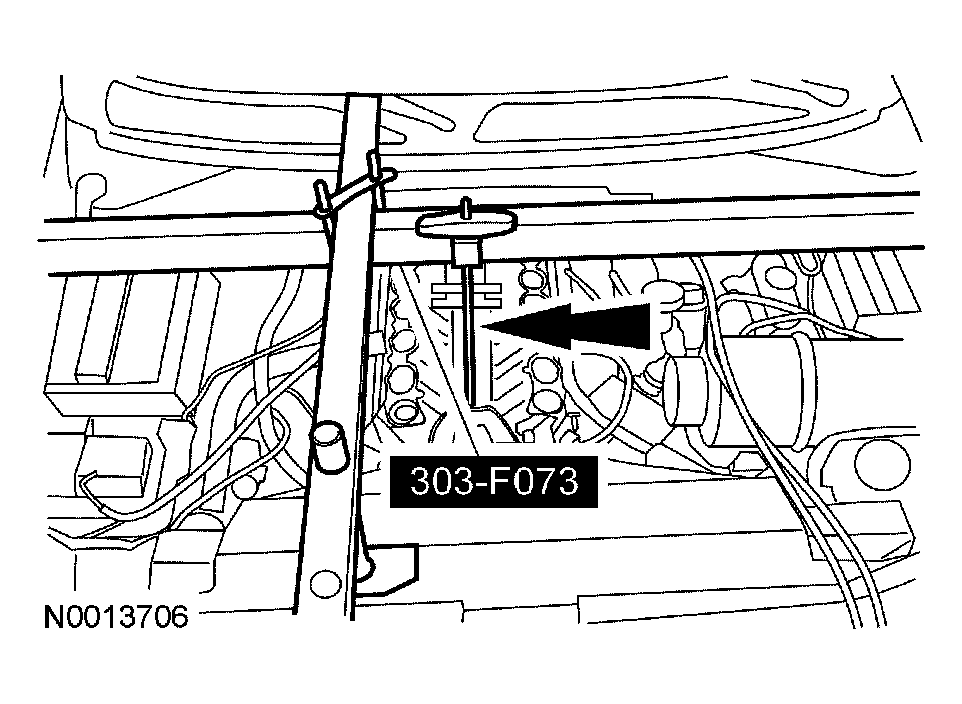

    Fig 12: Installing Special Tool
    G03962561Courtesy of FORD MOTOR CO.
  17. Remove the 4 exhaust manifold-to-catalytic converter nuts.
    Fig 13: Removing Exhaust Manifold-To-Catalytic Converter Nuts
    G03962562Courtesy of FORD MOTOR CO.
  18. Remove the exhaust system support bracket bolts from the crossmember.
    Fig 14: Removing Exhaust System Support Bracket Bolts From Crossmember
    G03929806Courtesy of FORD MOTOR CO.
  19. Remove the transmission mount nuts.
    Fig 15: Removing Transmission Mount Nuts
    G03962564Courtesy of FORD MOTOR CO.

    20. 4WD vehicles

  20. Remove the 4 nuts and lower the front stabilizer bar.

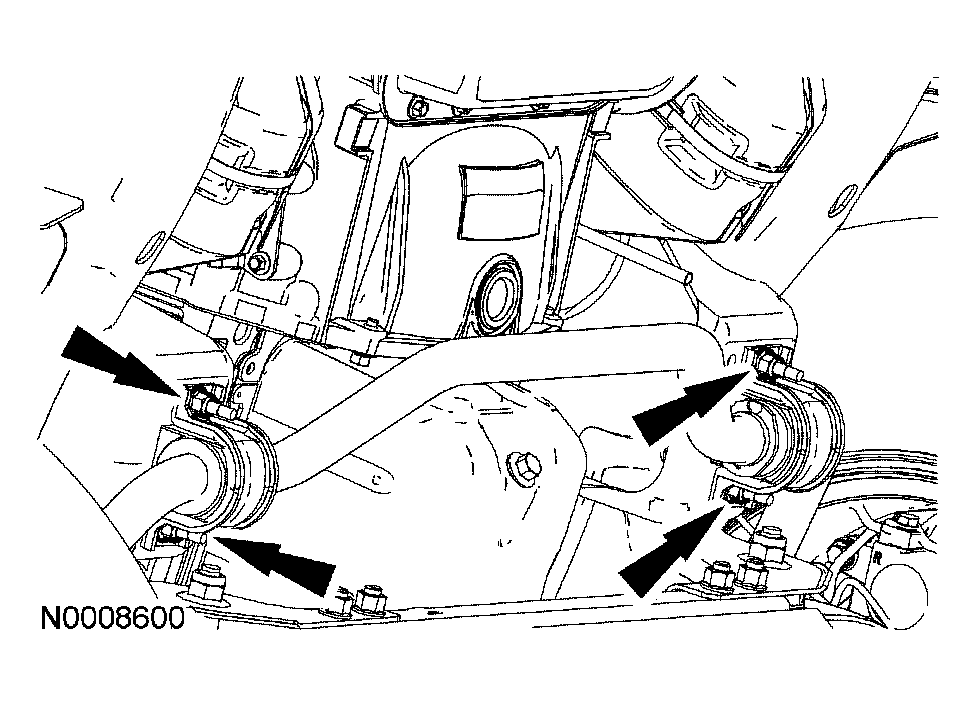

    Fig 16: Removing Nuts And Lower Front Stabilizer Bar
    G03962565Courtesy of FORD MOTOR CO.

    RH engine support insulator

  21. Remove the starter. For additional information, refer to STARTING SYSTEM .

    22. LH engine support insulator

  22. Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
  23. If removing the LH engine support insulator in a 4WD vehicle, index mark the front driveshaft flange to the front axle pinion flange.
    Fig 17: Identifying Index-Marking On Front Driveshaft To Universal Joint Drive Pinion Flange
    G03928216Courtesy of FORD MOTOR CO.
    24. CAUTION: Do not let the driveshaft hang unsupported.
    Fig 18: Disconnecting Front Driveshaft
    G03962567Courtesy of FORD MOTOR CO.
  24. If removing the LH engine support insulator in a 4WD vehicle, disconnect and support the front driveshaft.
    • Remove the 4 bolts.
    • Support the front driveshaft.

    25. All vehicles

  25. Remove the RH engine support insulator nuts and washer.
    Fig 19: Removing RH Engine Support Insulator Nuts And Washer
    G03962568Courtesy of FORD MOTOR CO.
  26. Remove the LH engine support insulator bolt.
    Fig 20: Removing LH Engine Support Insulator Bolt
    G03963277Courtesy of FORD MOTOR CO.
  27. Raise the engine.

    28. RH engine support insulator

  28. Remove the 3 RH engine support insulator bracket bolts.
  29. Remove the 2 RH engine support insulator bracket-to-engine support insulator bolts.
  30. Remove the RH engine support insulator bracket and the RH engine support insulator.

    31. LH engine support insulator

  31. Remove the 3 LH engine support insulator bracket bolts.
  32. Remove the 2 LH engine support insulator bracket-to-engine support insulator bolts.
  33. Remove the LH engine support insulator bracket and the LH engine support insulator.
