WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

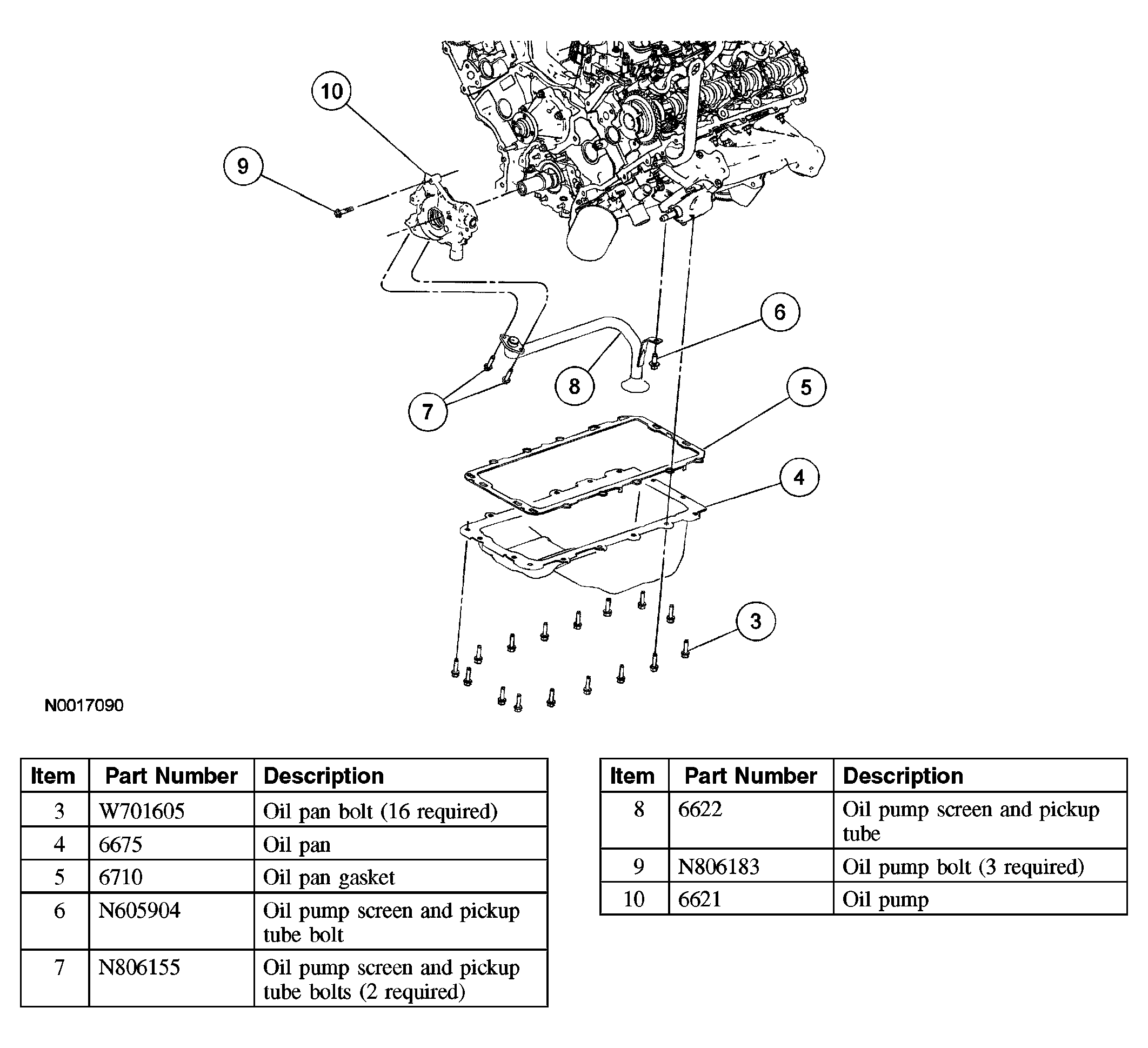

Fig 1: Exploded View Of Engine Lubrication Components (Items 1-2)
Courtesy of FORD MOTOR CO.
Fig 2: Exploded View Of Engine Lubrication Components (Items 3-10)
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
