Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the front driveshaft shield nuts and the front driveshaft shield.
- To install, tighten to 25 Nm (18 lb-ft).

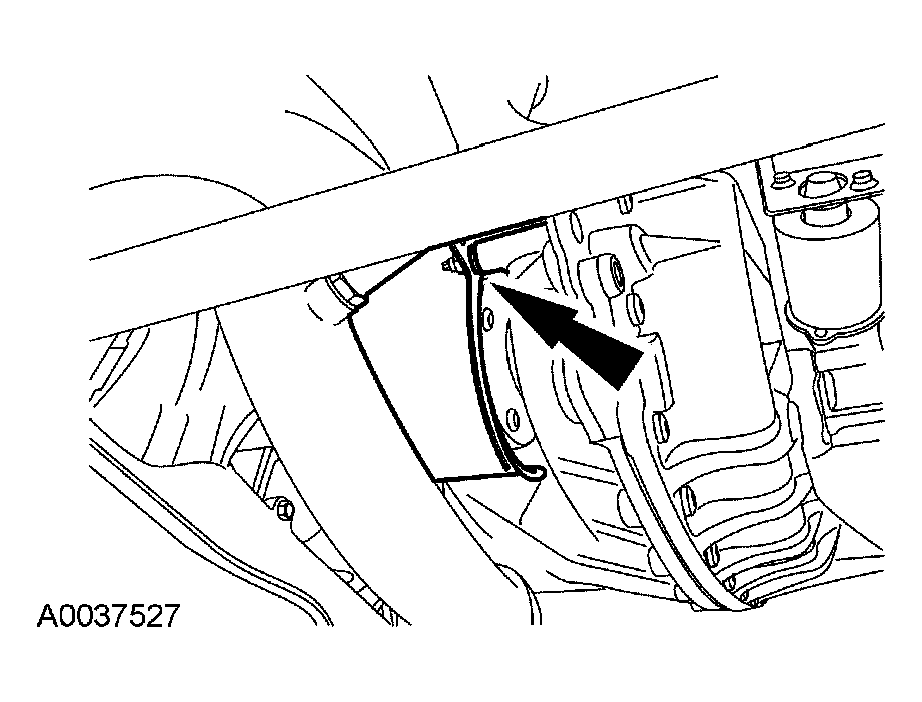

Fig 1: Removing Front Driveshaft Shield Nuts And Front Driveshaft Shield
Courtesy of FORD MOTOR CO.
Index-mark the front driveshaft flange to the pinion flange to maintain alignment during installation.

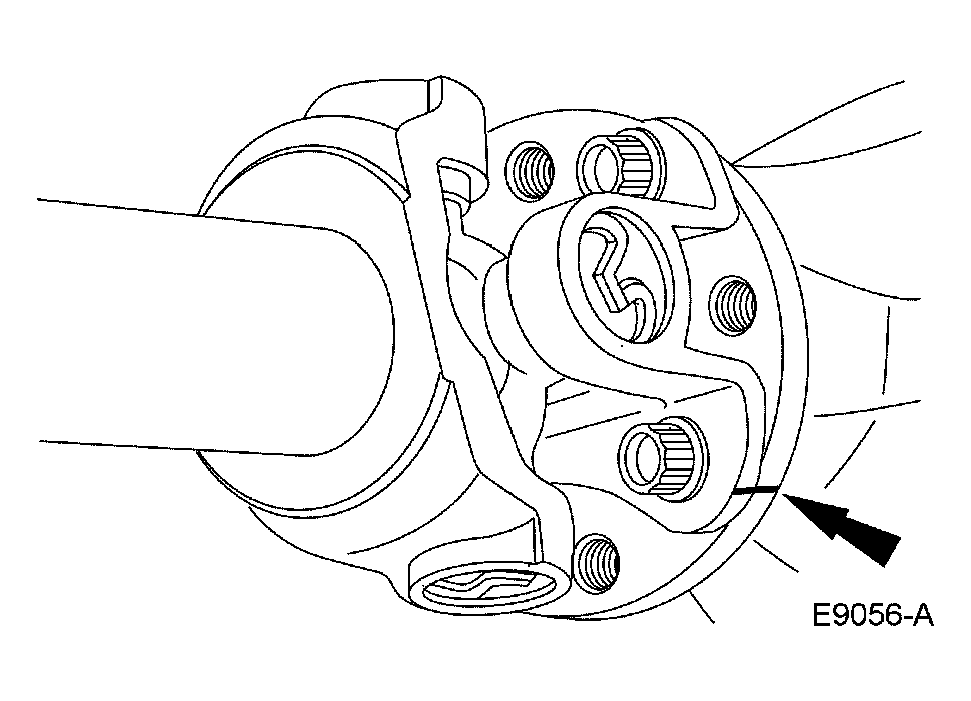

Fig 2: Identifying Index-Mark On Driveshaft Yoke And Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.
Index-mark the rear driveshaft flange to the transfer case flange to maintain alignment during installation.
Remove the 4 driveshaft flange bolts from the transfer case
- To install, tighten to 103 Nm (76 lb-ft).
Fig 3: Removing Driveshaft Flange Bolts From Transfer Case
Courtesy of FORD MOTOR CO.

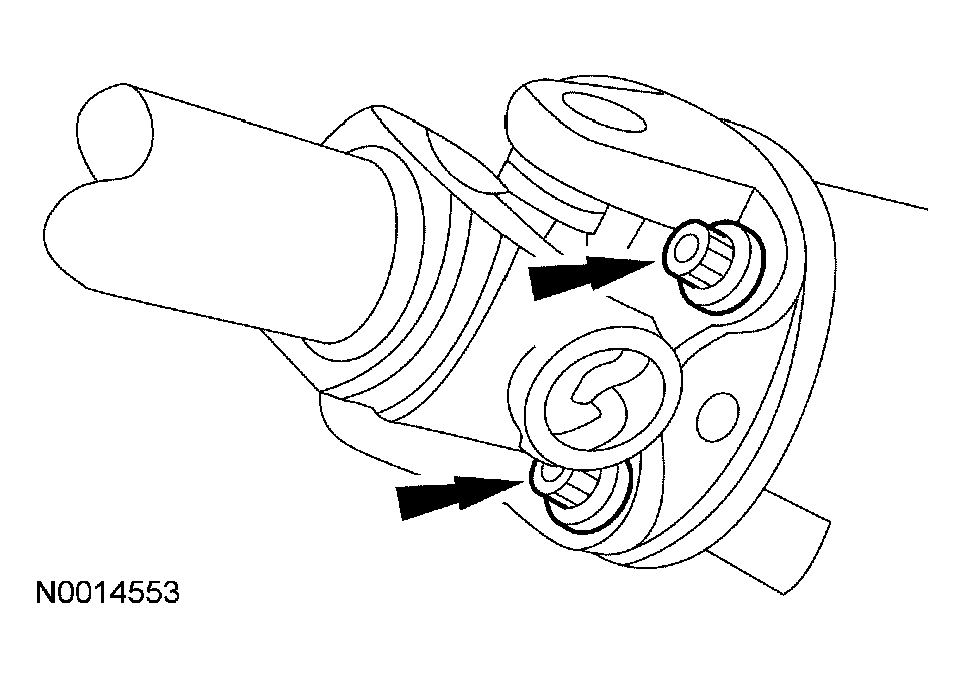

Remove the 4 driveshaft flange bolts from the pinion flange.
- To install, tighten to 103 Nm (76 lb-ft).
Fig 4: Removing Driveshaft Flange Bolts From Pinion Flange
Courtesy of FORD MOTOR CO.
Remove and discard the 4 nuts from the front stabilizer bar brackets and lower the rear of the bar.
- To install, tighten to 48 Nm (35 lb-ft).
Remove the front driveshaft.

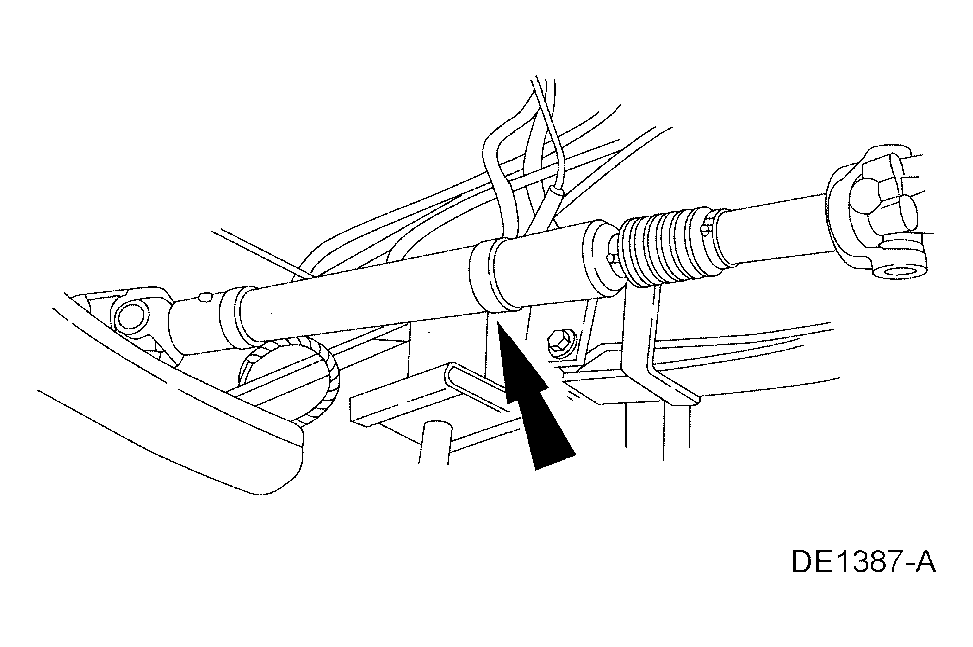

Fig 5: Removing Front Driveshaft
Courtesy of FORD MOTOR CO.

CAUTION: If new bolts are not available, coat the threads of the original bolts with Threadlock and Sealer.

NOTE: Align the index marks made during removal.

To install, reverse the removal procedure.
- Install new driveshaft flange bolts.
