Differential Case: Disassembly

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

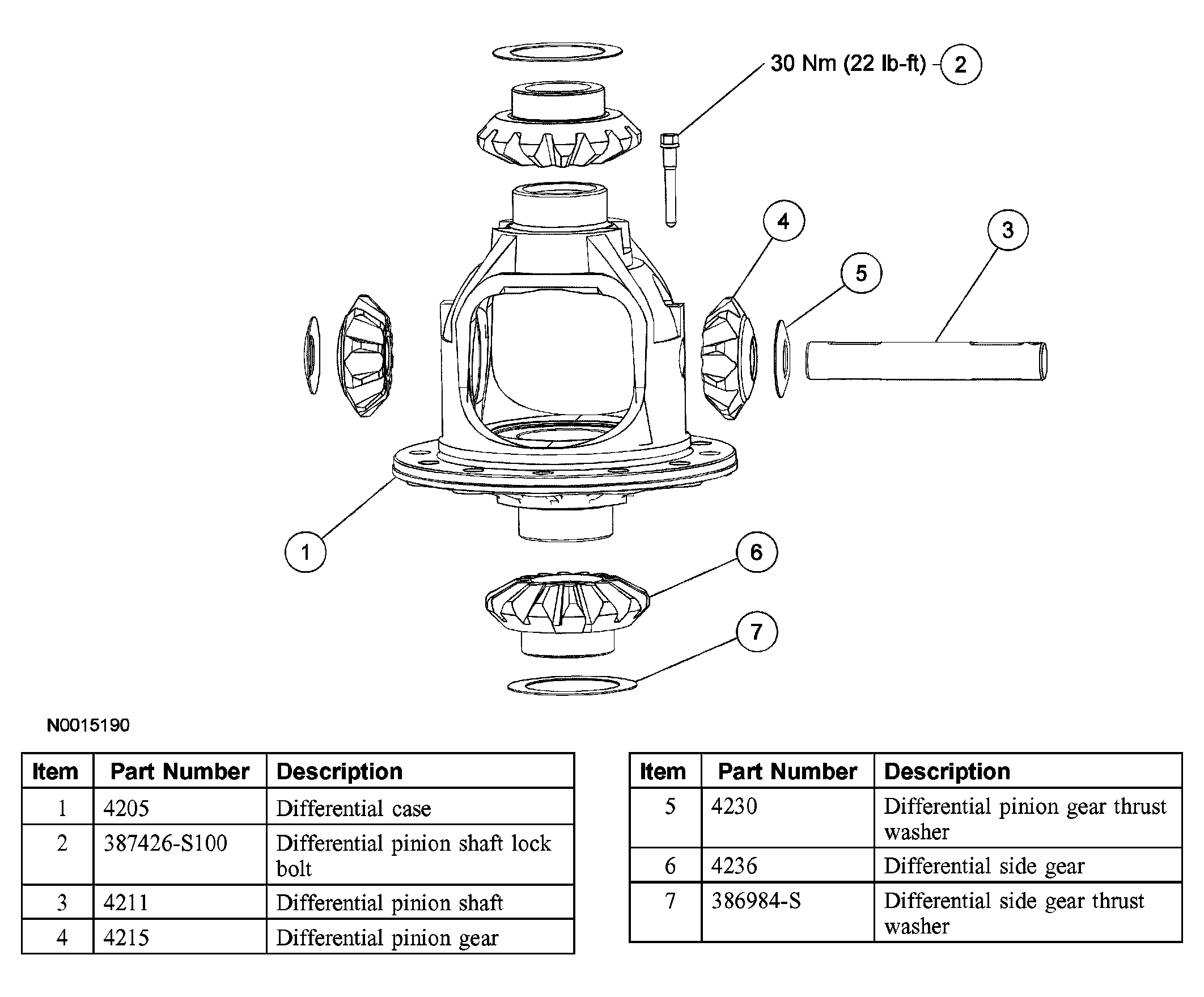

Fig 1: Exploded View Of Differential Case

Courtesy of FORD MOTOR CO.

Remove the differential pinion shaft lock bolt.

Fig 2: Removing Differential Pinion Shaft Lock Bolt
Courtesy of FORD MOTOR CO.
Remove the differential pinion shaft.

Fig 3: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.
Rotate and remove the differential pinion gears and differential pinion gear thrust washers.

Fig 4: Rotating And Removing Differential Pinion Gears And Differential Pinion Gear Thrust Washers
Courtesy of FORD MOTOR CO.
Remove the differential side gears and the differential side gear thrust washers.

Fig 5: Removing Differential Side Gears And Differential Side Gear Thrust Washers
Courtesy of FORD MOTOR CO.
