Rear Wheel Bearing and Axle Shaft Oil Seal: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. If removed, lubricate the new rear wheel bearing with axle lubricant.
  2. If removed, use the special tools to install the rear wheel bearing.

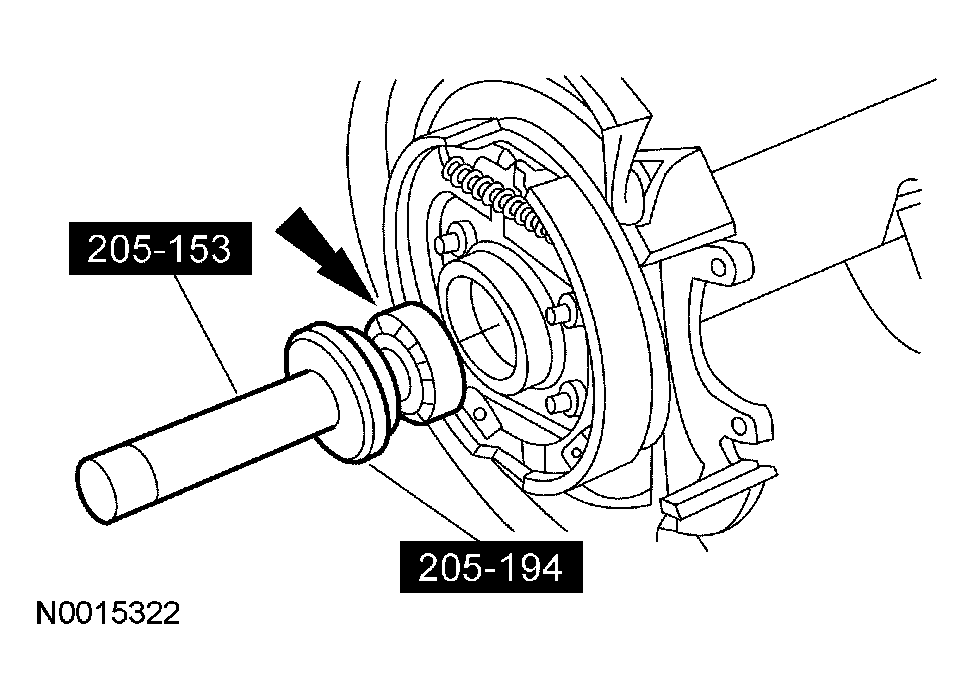

    Fig 1: Using Special Tools To Install Rear Wheel Bearing
    G03960014Courtesy of FORD MOTOR CO.
  3. Lubricate the lip of the new axle shaft oil seal with grease.
  4. Using the special tools, install the new axle shaft oil seal.

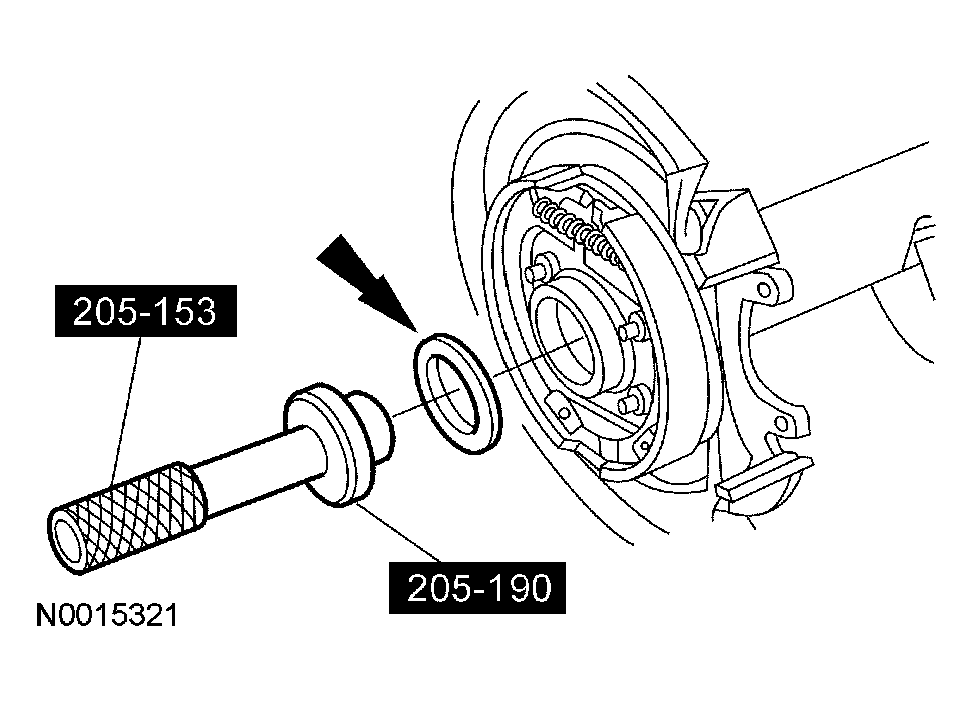

    Fig 2: Using Special Tools To Install New Axle Shaft Oil Seal
    G03960015Courtesy of FORD MOTOR CO.
  5. Install the axle shaft. For additional information, refer to AXLE SHAFT .
