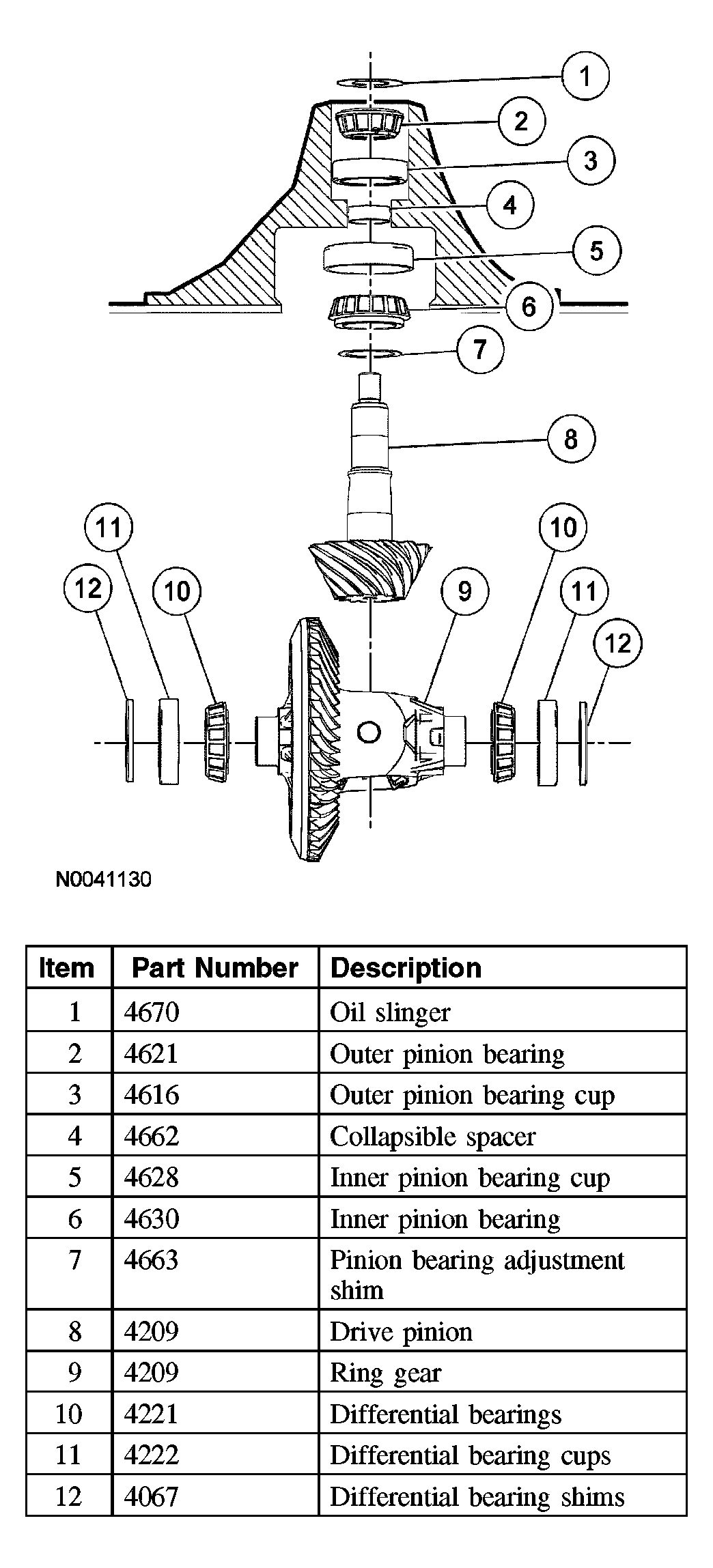

Differential Ring And Pinion: Notes
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| Protector, Drive Pinion Thread 205-460 or equivalent |
|
| Installer, Drive Pinion Oil Seal 205-208 (T83T-4676-A) |
|
| Installer, Drive Pinion Flange 205-002 (TOOL-4858-E) or equivalent |
|
| Dial Indicator Gauge With Bracketry 100-002 (TOOL-4201-C) or equivalent |
|
| Remover, Differential Bearing 205-116 (T77F-4220-B1) |
|
| Installer, Differential Shim 205-220 (T85L-4067-AH) |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Drive Pinion Bearing Cup 205-024 (T67P-4616-A) |
|
| Adapter For 205-S127 205-105 (T76P-4020-A3) |
|
| Adapter For 205-S127 205-111 (T76P-4020-A11) |
|
| Adapter For 205-S127 205-109 (T76P-4020-A9) |
|
| Adapter For 205-S127 205-129 (T79P-4020-A18) |
|
| Adapter For 205-S127 205-110 (T76P-4020-A10) |
|
| Adapter For 205-S127 205-130 (T79P-4020-A19) |
|
| Installer, Drive Pinion Bearing Cone 205-005 (T53T-4621-C) |
|
| 2-Jaw Puller 205-D072 (D79L-4221-A1) or equivalent |
|
| Step Plate 205-D016 (D80L-630-5) or equivalent |
|
| Installer, Differential Side Bearing 205-010 (T57L-4221-A2) |
|
| Plate, Bearing Oil Seal 205-090 (T75L-1165-B) |
MATERIALS
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 High Performance Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
| Additive Friction Modifier XL-3 | EST-M2C118-A |
