Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the differential housing cover.
    1. Remove the 10 differential housing cover bolts and drain the lubricant from the axle housing.
    2. Remove the differential housing cover.

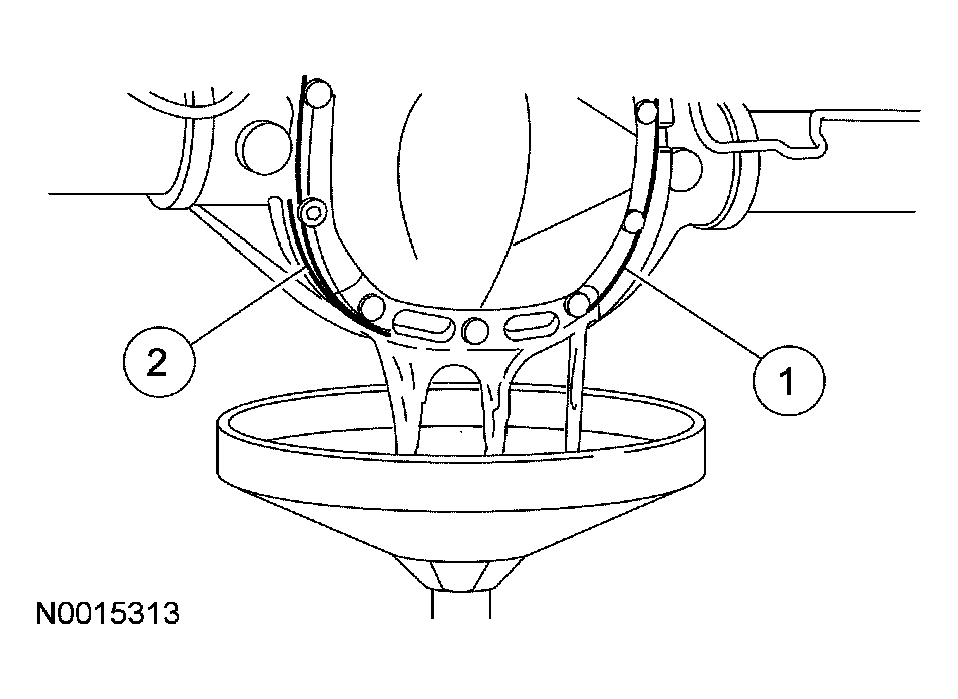

    Fig 1: Removing Differential Housing Cover
    G03971823Courtesy of FORD MOTOR CO.
