Axle Shaft: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the lip of the axle shaft oil seal with grease.

NOTE: Install the left and right differential side gears and clutch packs, if removed.

Position the 2 differential pinion gears and rotate them to align with the pinion shaft holes.

CAUTION: Do not damage the axle shaft oil seal.

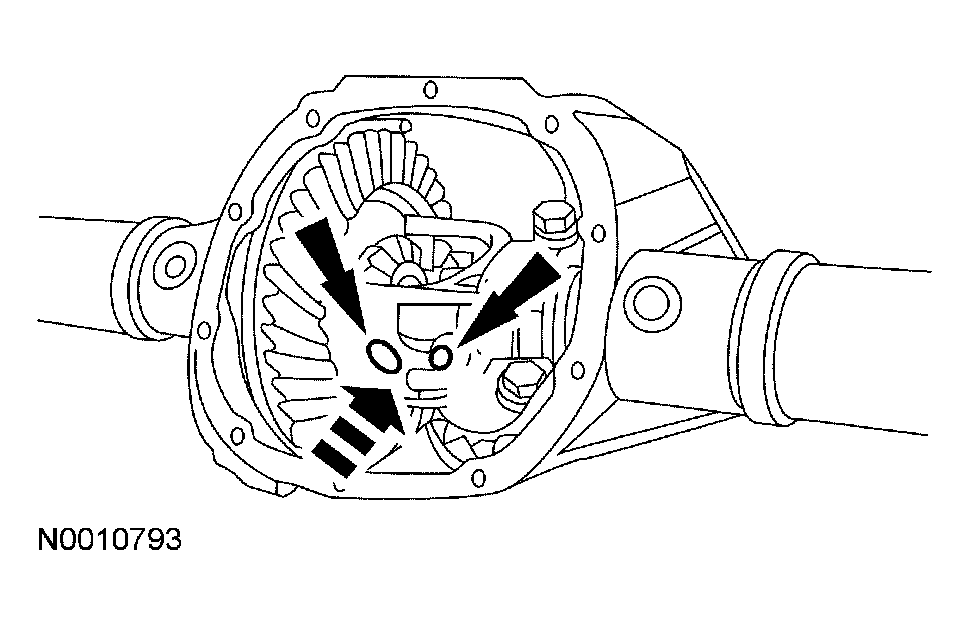

Fig 1: Installing Axle Shaft

Courtesy of FORD MOTOR CO.

Install the 2 axle shafts.

CAUTION: Do not damage the rubber O-rings in the U-washer grooves.

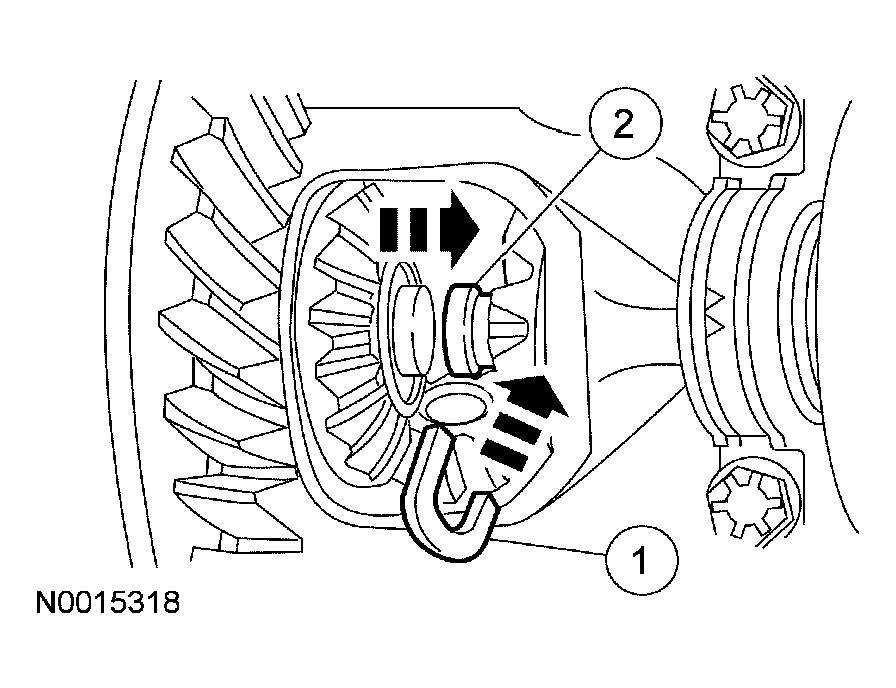

Fig 2: Installing U-washers

Courtesy of FORD MOTOR CO.

Install the U-washers.
1. Position the 2 U-washers on the button end of the axle shafts.
2. Pull the axle shafts outward.

NOTE: If a new pinion shaft lock bolt is unavailable, coat the threads with threadlock prior to installation.

Fig 3: Installing New Differential Pinion Shaft Lock Bolt

Courtesy of FORD MOTOR CO.

Install the differential pinion shaft.
- Align the hole in the differential pinion shaft with the differential case lock bolt hole.
- Install a new differential pinion shaft lock bolt.
  - Tighten to 30 Nm (22 lb-ft).
Install the brake disc.

Fig 4: Installing Brake Disc
Courtesy of FORD MOTOR CO.
Install the disc brake caliper and the disc brake caliper bolts.
- Tighten to 27 Nm (20 lb-ft).
Fig 5: Installing Disc Brake Caliper Bolts
Courtesy of FORD MOTOR CO.
Install the differential housing cover. For additional information, refer to DIFFERENTIAL HOUSING COVER .
