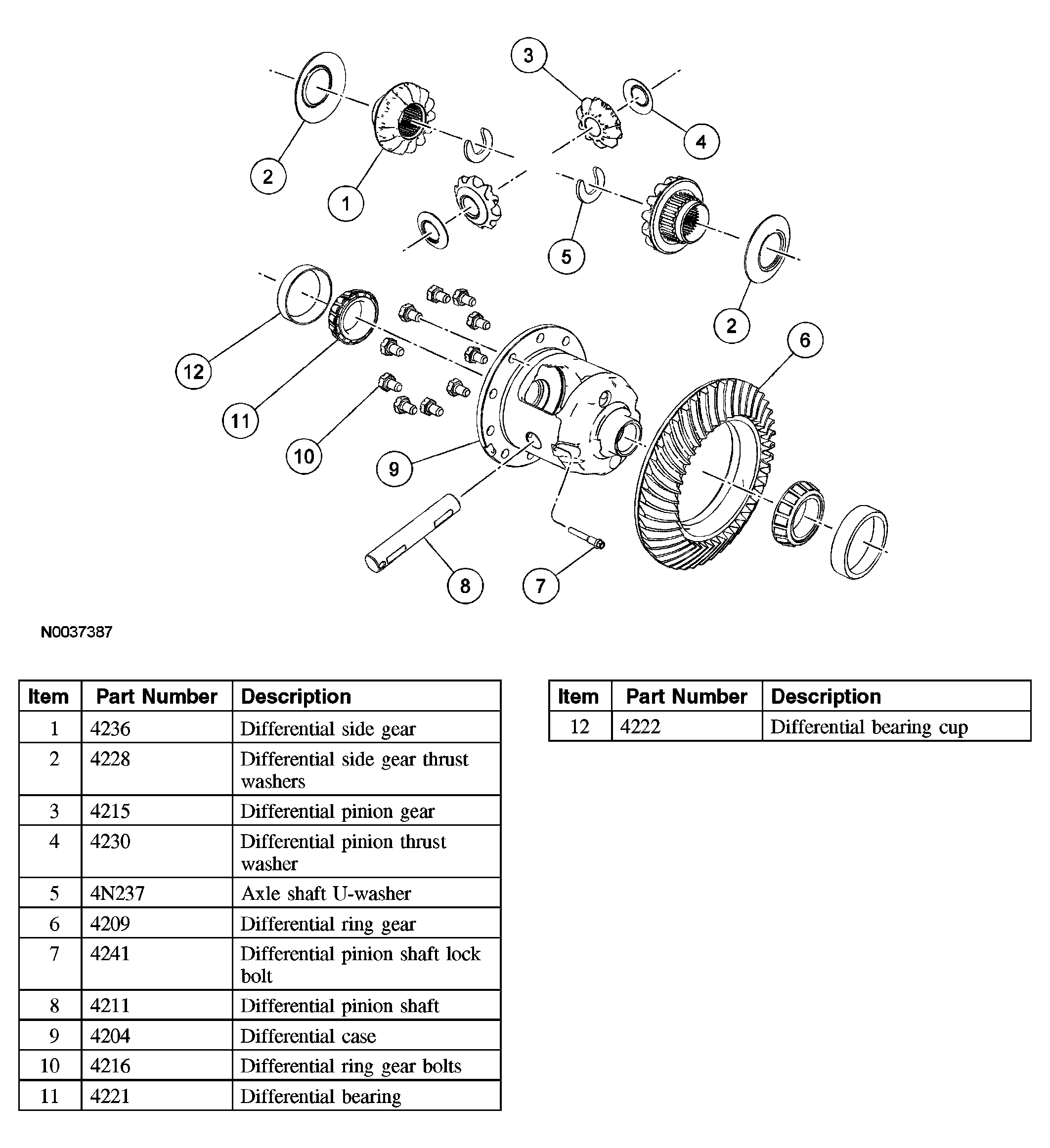

Differential Case and Ring Gear - Conventional: Notes
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| Remover, Differential Bearing 205-116 (T77F-4220-B1) | |
| Dial Indicator With Bracketry 100-002 (TOOL-4201-C) | |
| Step Plate 205-D016 (D80L-630-5) or equivalent | |
| Installer, Differential Side Bearing 205-010 (T57L-4221-A2) |
MATERIALS
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 High Performance Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
| Threadlock and Sealer TA-25 | WSK-M2G351-A5 |
| Stud and Bearing Mount TA-27 | WSK-M2G349-A1 |
