Master Cylinder - In Vehicle

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes. Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical attention immediately. Failure to follow these instructions may result in personal injury.
CAUTION: Do not allow the brake master cylinder reservoir to run dry during the bleeding operation. Keep the brake master cylinder reservoir filled with the specified brake fluid. Never reuse the brake fluid that has been drained from the hydraulic system.
CAUTION: Do not spill brake fluid onto painted or plastic surfaces. If spilled, wipe up immediately before damage to the plastic or painted surfaces occurs.
NOTE: When any part of the hydraulic system has been disconnected for repair or new installation, air may get into the system and cause spongy brake pedal action. This requires bleeding of the hydraulic system after it has been correctly connected. The hydraulic system can be gravity bled, manually bled, or bled with pressure bleeding equipment.
    NOTE: When a new brake master cylinder has been installed or the system has been emptied, or partially emptied, it should be primed to prevent air from getting into the system.
    Fig 1: Disconnecting Brake Master Cylinder Outlet Tubes
    G03944770Courtesy of FORD MOTOR CO.
  1. Disconnect the brake master cylinder outlet tubes.
    2. NOTE: Original equipment lines are not intended to be used during this procedure.
    Fig 2: Installing Short Brake Tubes With Ends Submerged Into Brake Master Cylinder Reservoir
    G03884620Courtesy of FORD MOTOR CO.
  2. Install short brake tubes with the ends submerged into the brake master cylinder reservoir and fill the brake master cylinder reservoir with brake fluid.
  3. Have an assistant pump the brake pedal until clear fluid flows from both brake tubes, without air bubbles.
  4. Remove the short brake tubes and install the brake outlet tubes.
  5. Bleed each brake tube at the brake master cylinder as follows:
    1. Have an assistant pump the brake pedal and then hold firm pressure on the brake pedal.
    2. Loosen the rear brake tube fittings until a stream of brake fluid comes out. Have an assistant maintain pressure on the brake pedal while tightening the brake tube fitting.
    3. Repeat this operation until clear, bubble-free fluid comes out.
    4. Refill the brake master cylinder reservoir as necessary. Repeat the bleeding operation for the front brake tube.
  6. While the assistant maintains pressure on the brake pedal, tighten the brake line fittings.

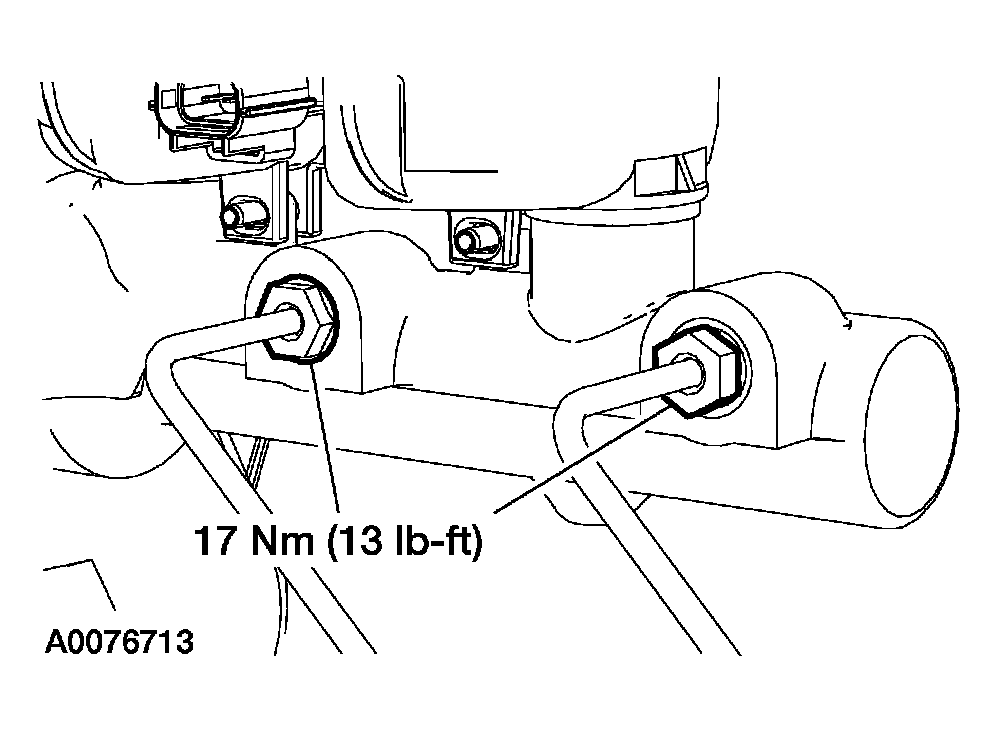

    Fig 3: Tightening Brake Line Fittings
    G03961315Courtesy of FORD MOTOR CO.
