Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

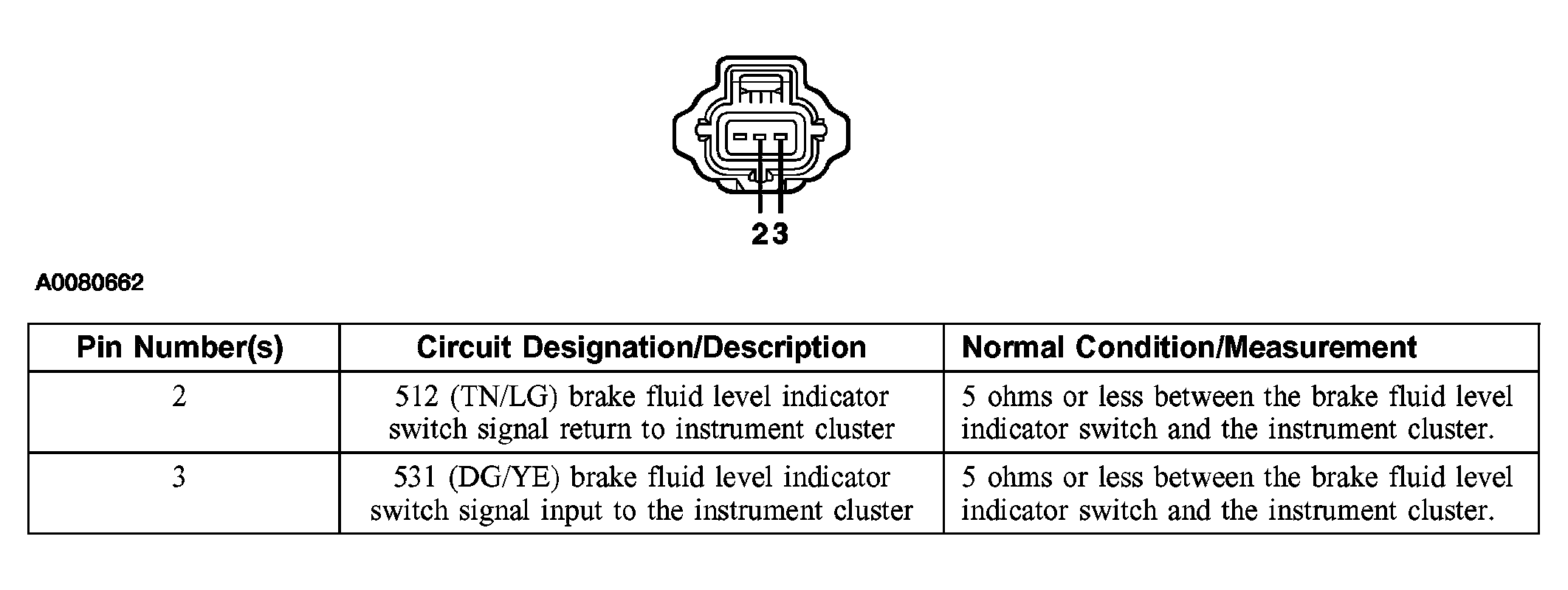

Brake Fluid Level Indicator Switch C124

Fig 1: Identifying Brake Fluid Level Indicator Switch C124 Connector Pinouts

Courtesy of FORD MOTOR CO.

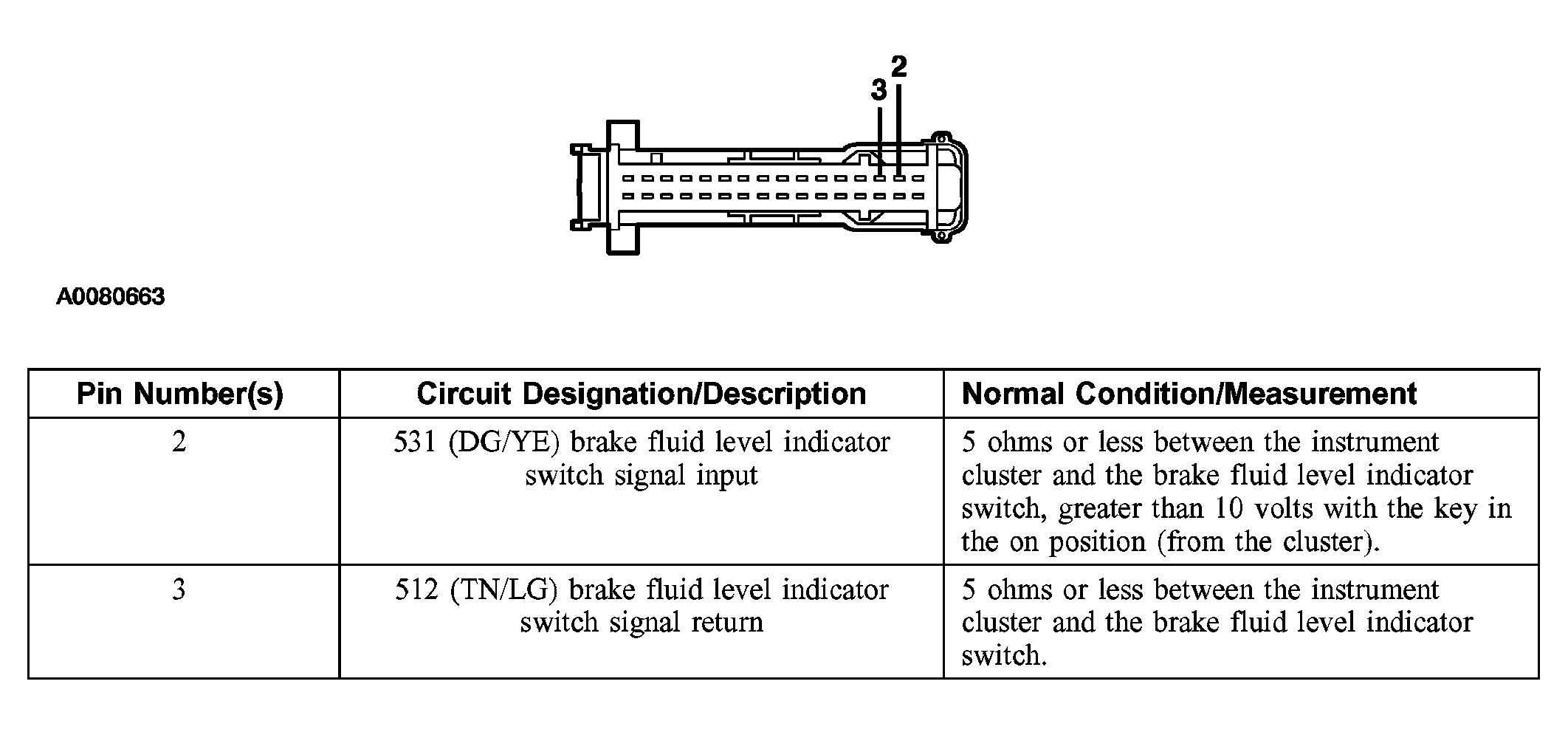

Instrument Cluster C220a

Fig 2: Identifying Instrument Cluster C220a Connector Pinouts

Courtesy of FORD MOTOR CO.

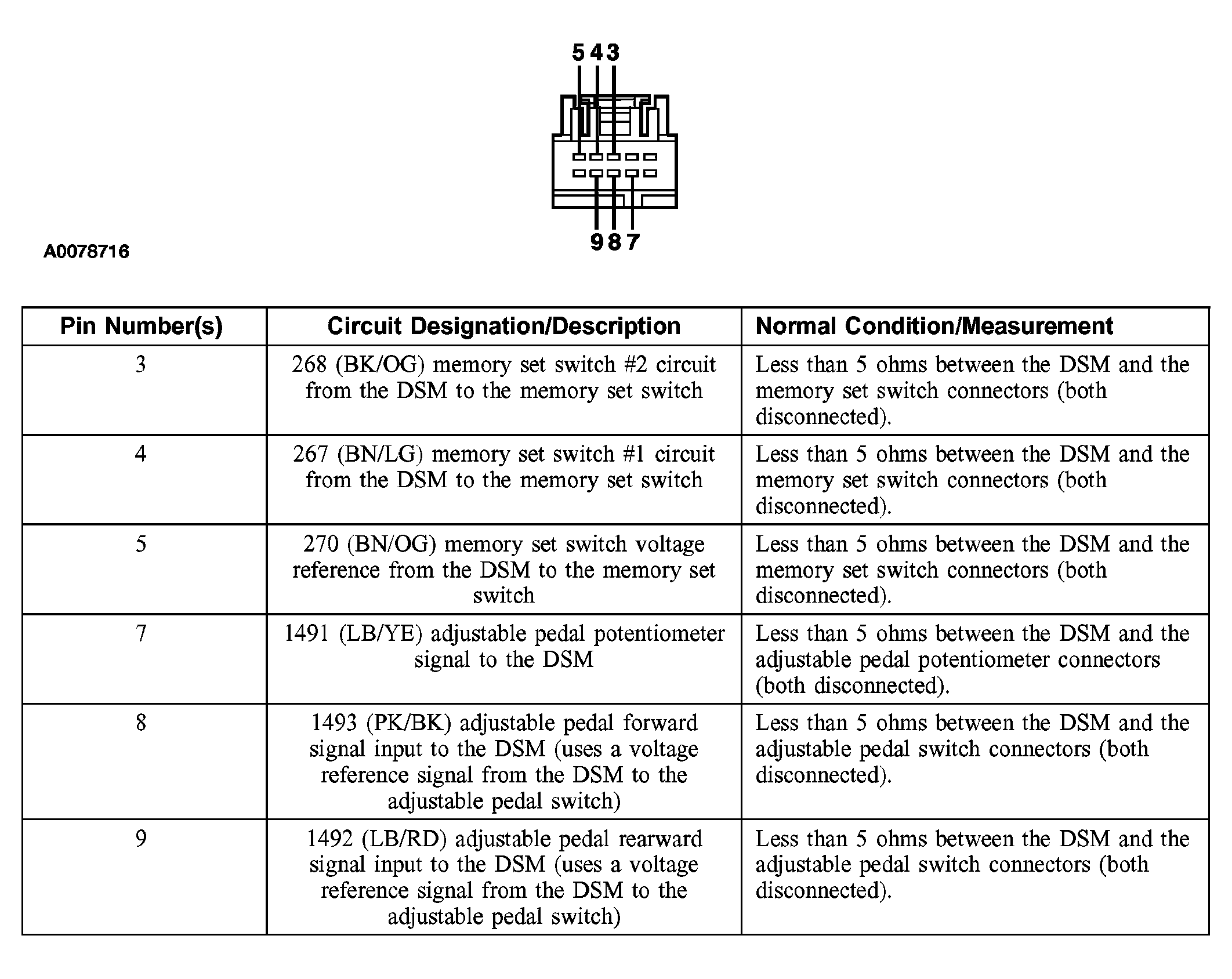

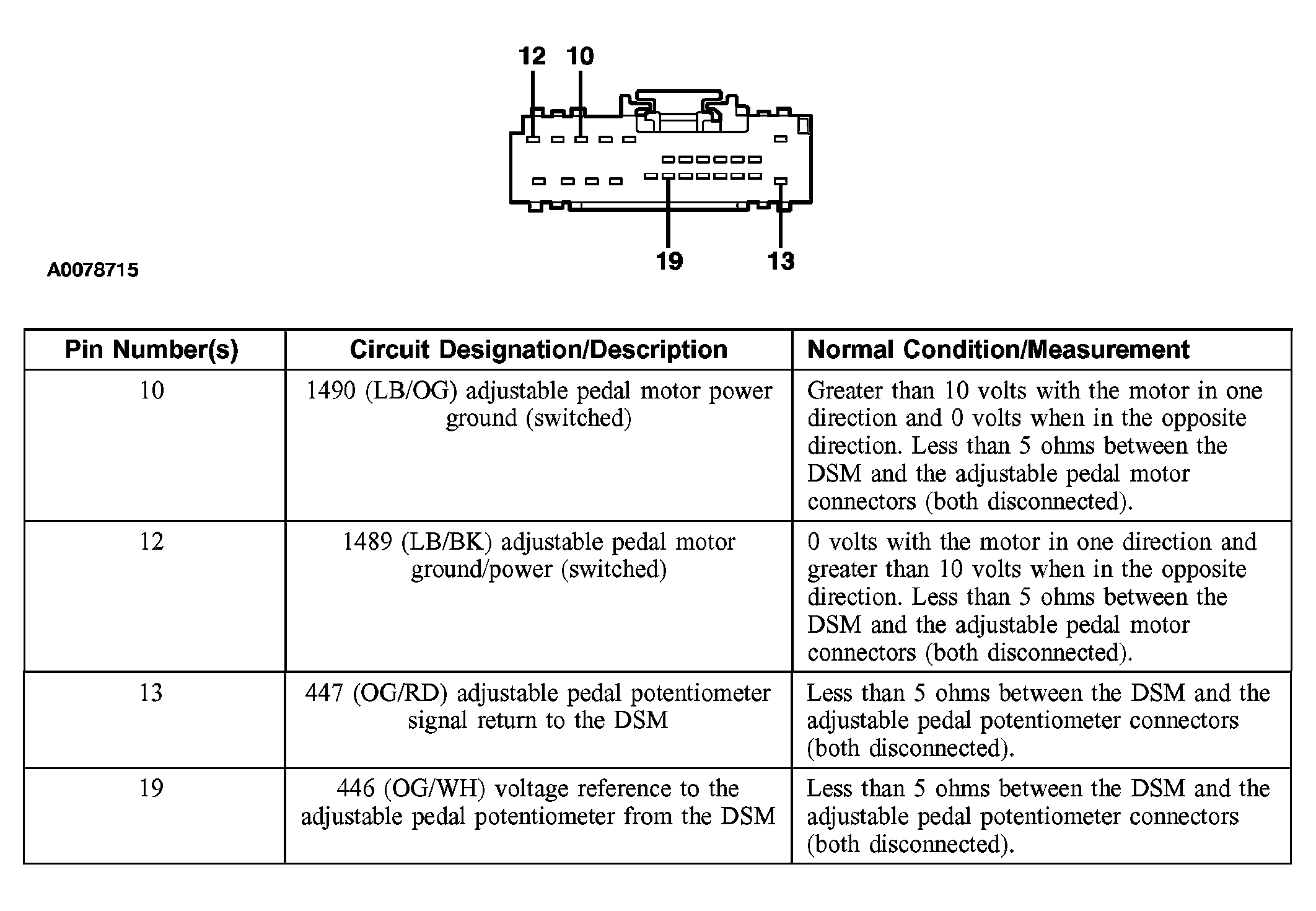

Driver Seat Module C341a

Fig 3: Identifying Driver Seat Module C341a Connector Pinouts

Courtesy of FORD MOTOR CO.

Driver Seat Module C341c

Fig 4: Identifying Driver Seat Module C341c Connector Pinouts

Courtesy of FORD MOTOR CO.

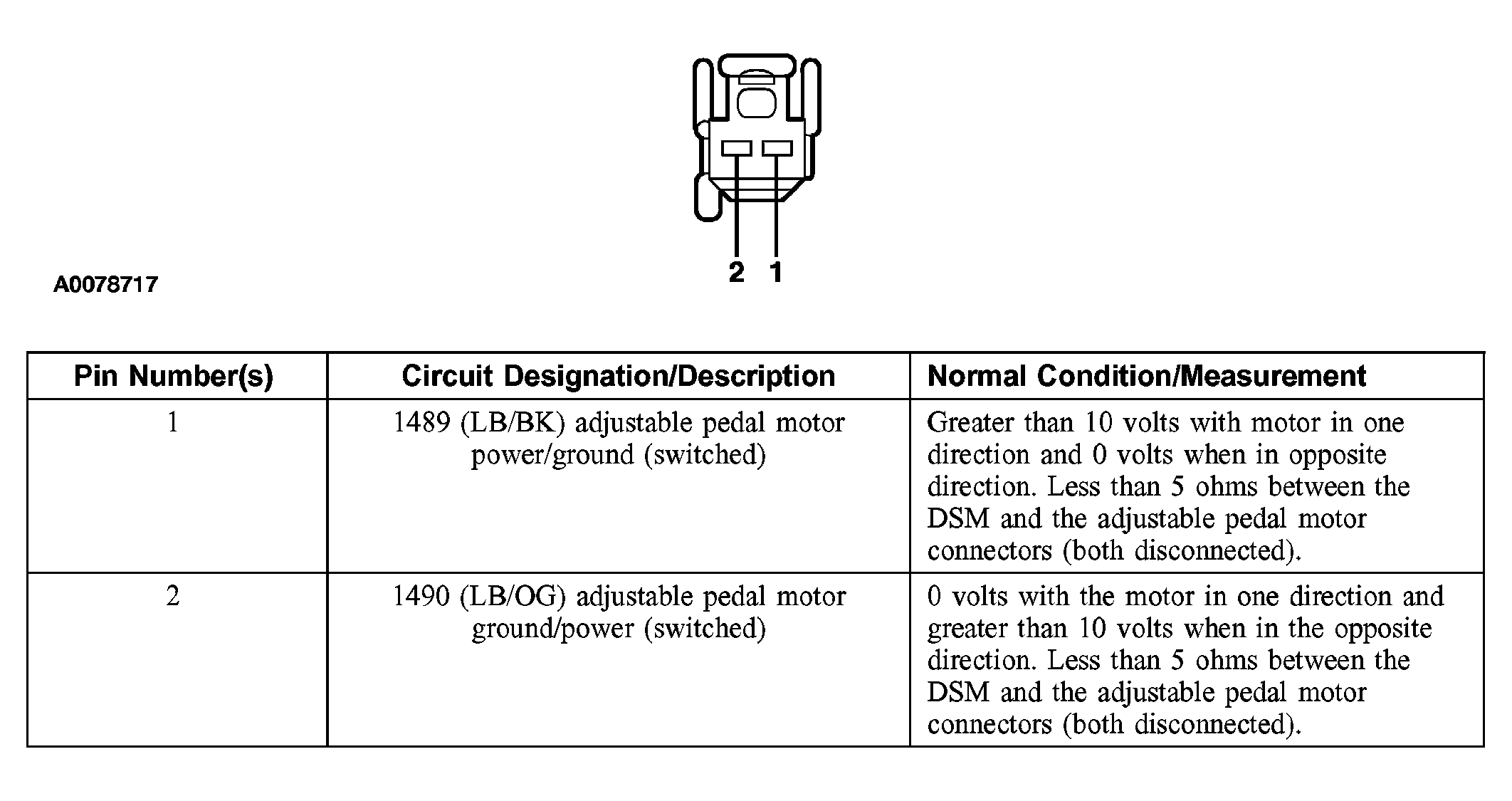

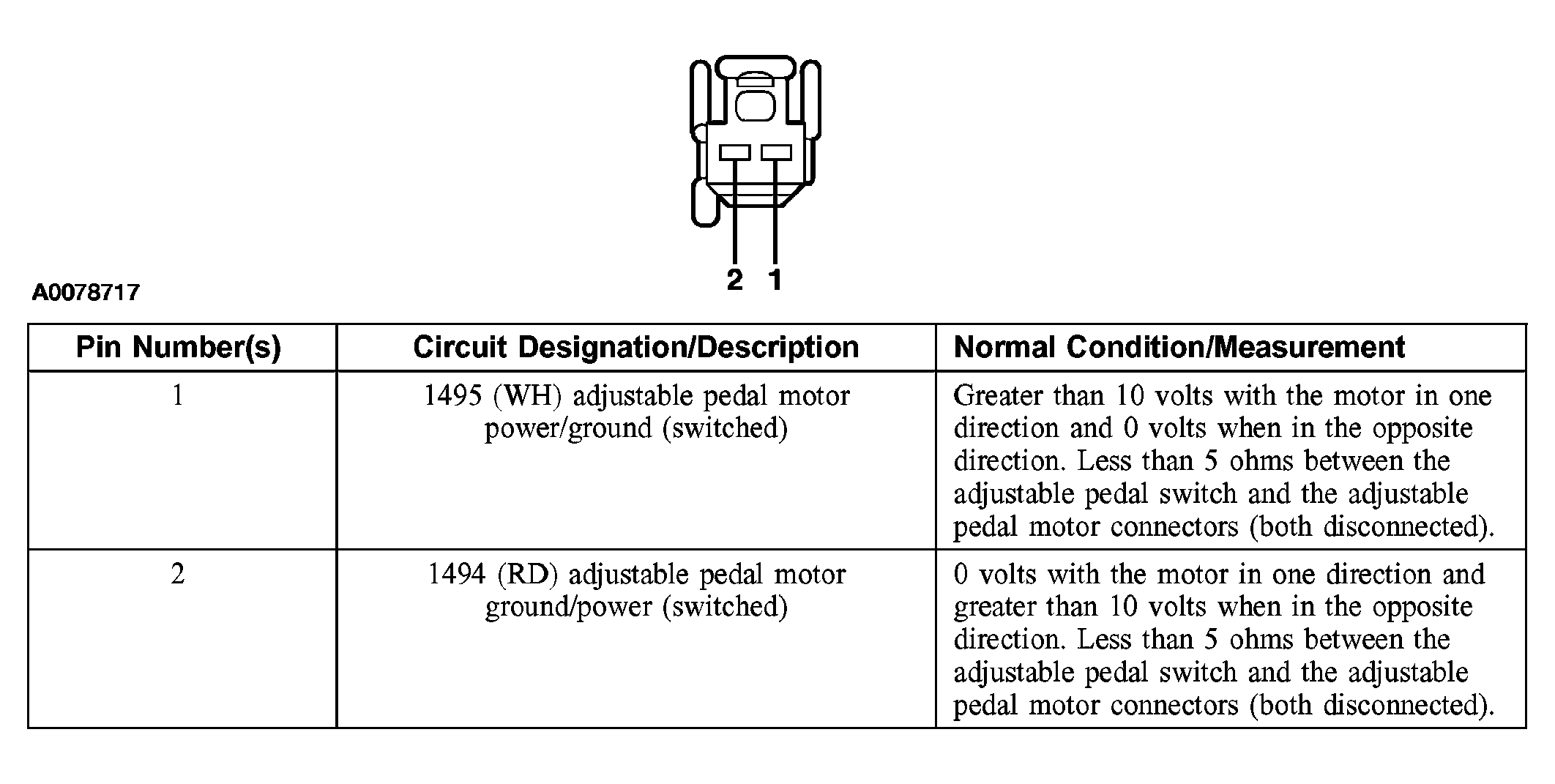

Adjustable Pedal Motor C2003 - Non-Memory

Fig 5: Identifying Adjustable Pedal Motor C2003 Connector Pinouts - Non-Memory

Courtesy of FORD MOTOR CO.

Adjustable Pedal Motor C2003 - Memory

Fig 6: Identifying Adjustable Pedal Motor C2003 Connector Pinouts - Memory

Courtesy of FORD MOTOR CO.

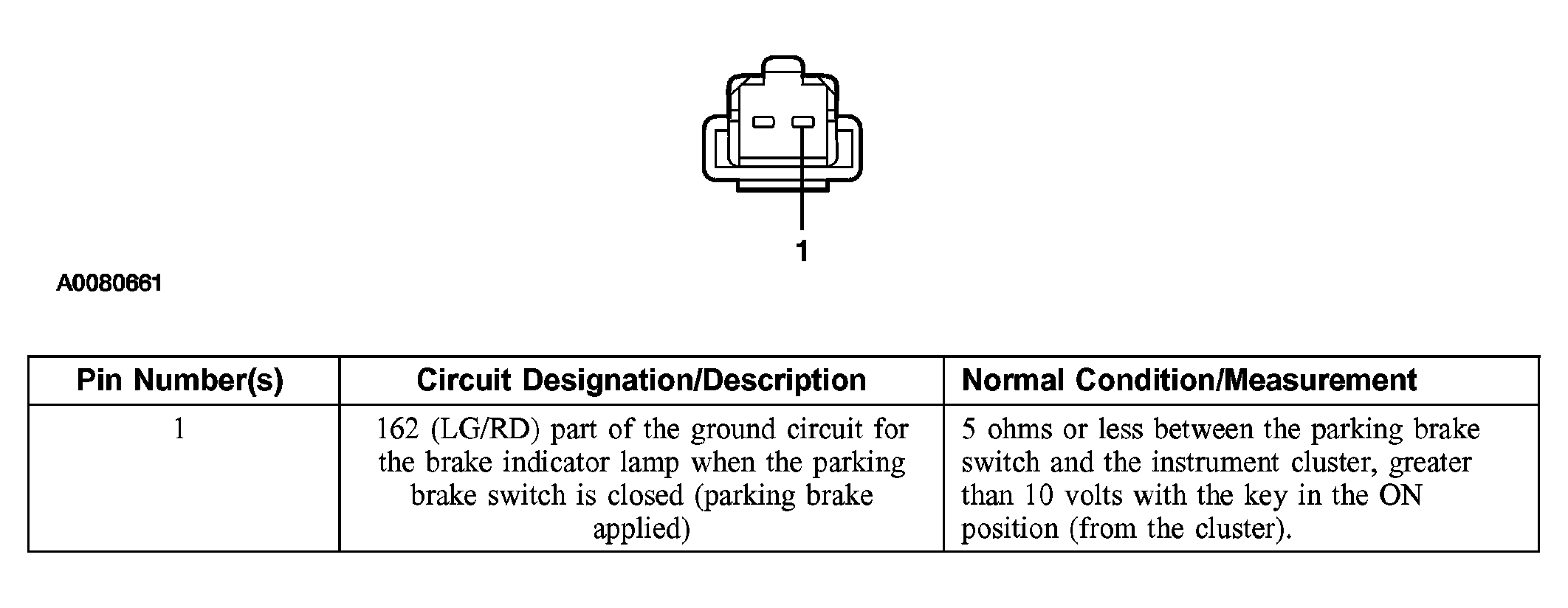

Parking Brake Switch C2015

Fig 7: Identifying Parking Brake Switch C2015 Connector Pinouts

Courtesy of FORD MOTOR CO.

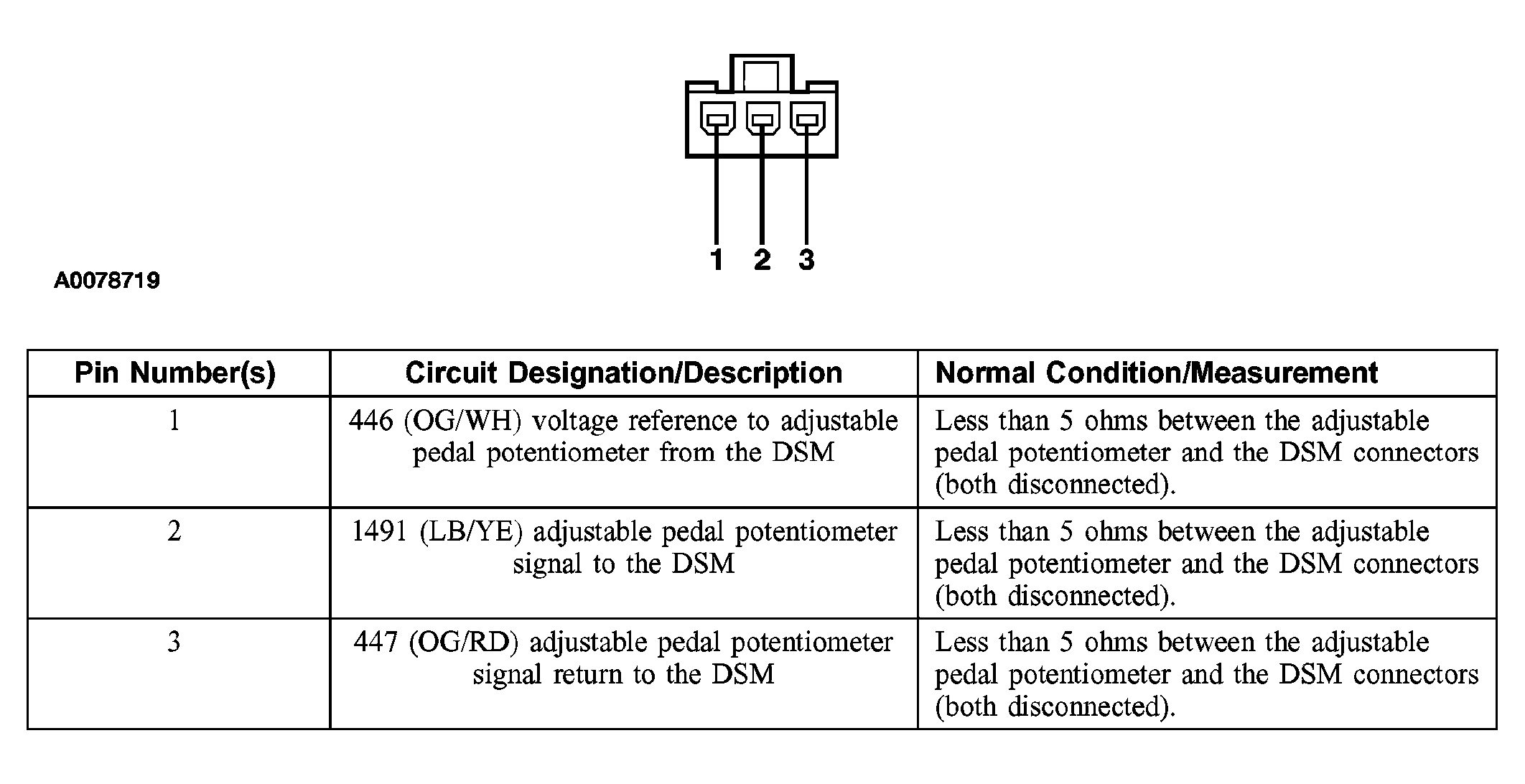

Adjustable Pedal Motor Potentiometer C2090

Fig 8: Identifying Adjustable Pedal Motor Potentiometer C2090 Connector Pinouts

Courtesy of FORD MOTOR CO.

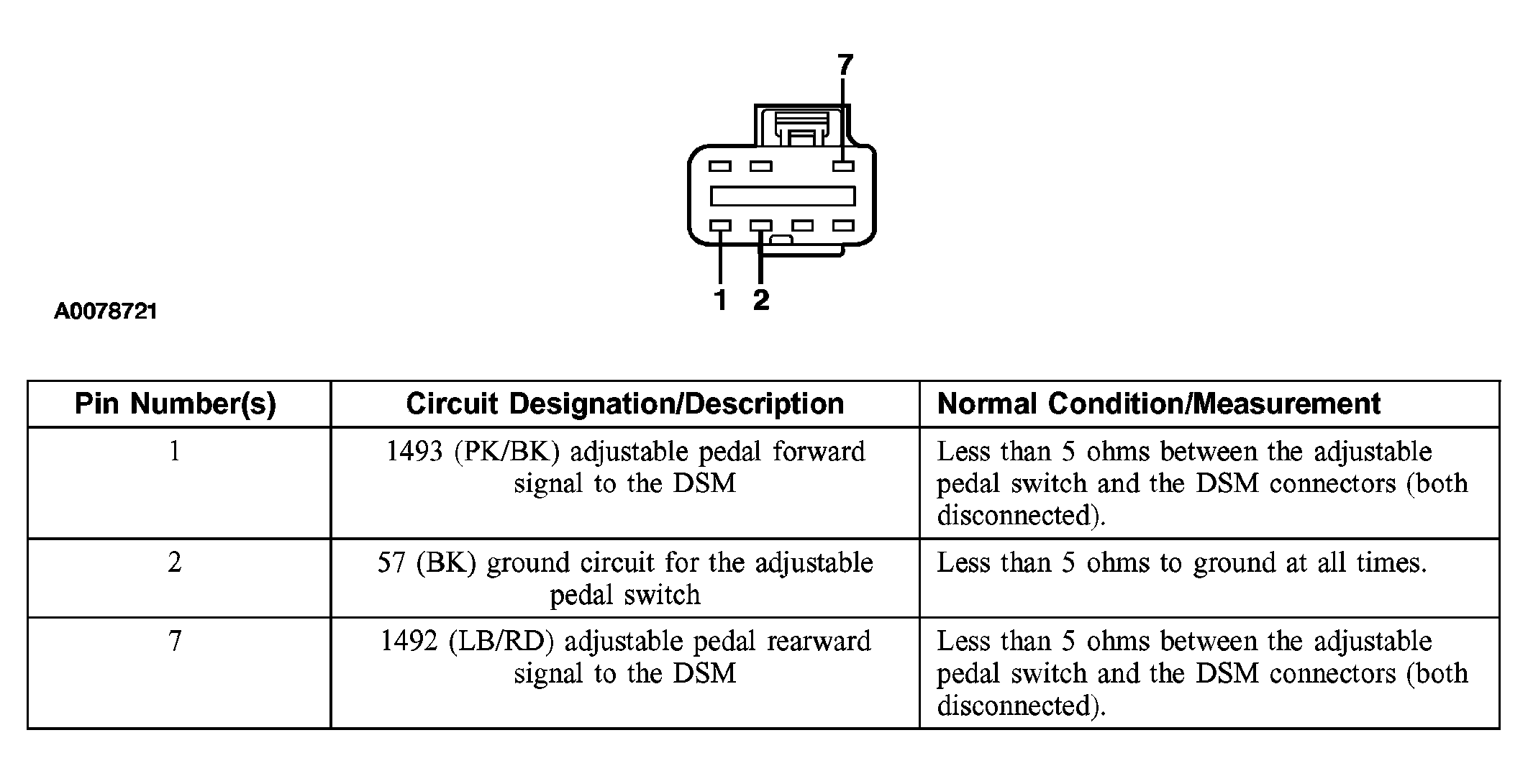

Adjustable Pedal Switch C2235 - Non-Memory

Fig 9: Identifying Adjustable Pedal Switch C2235 Connector Pinouts - Non-Memory

Courtesy of FORD MOTOR CO.

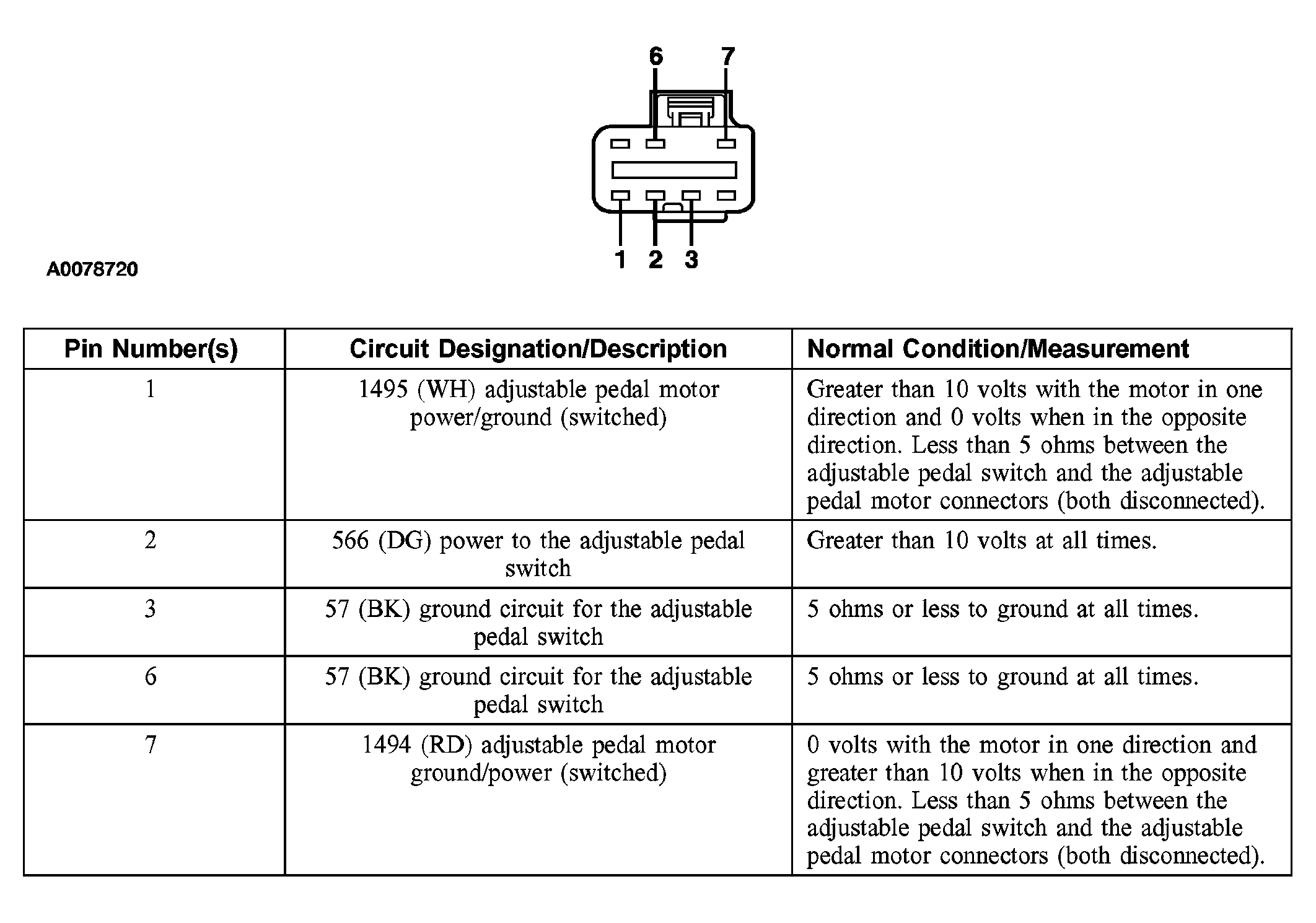

Adjustable Pedal Switch C2235 - Memory

Fig 10: Identifying Adjustable Pedal Switch C2235 Connector Pinouts - Memory

Courtesy of FORD MOTOR CO.

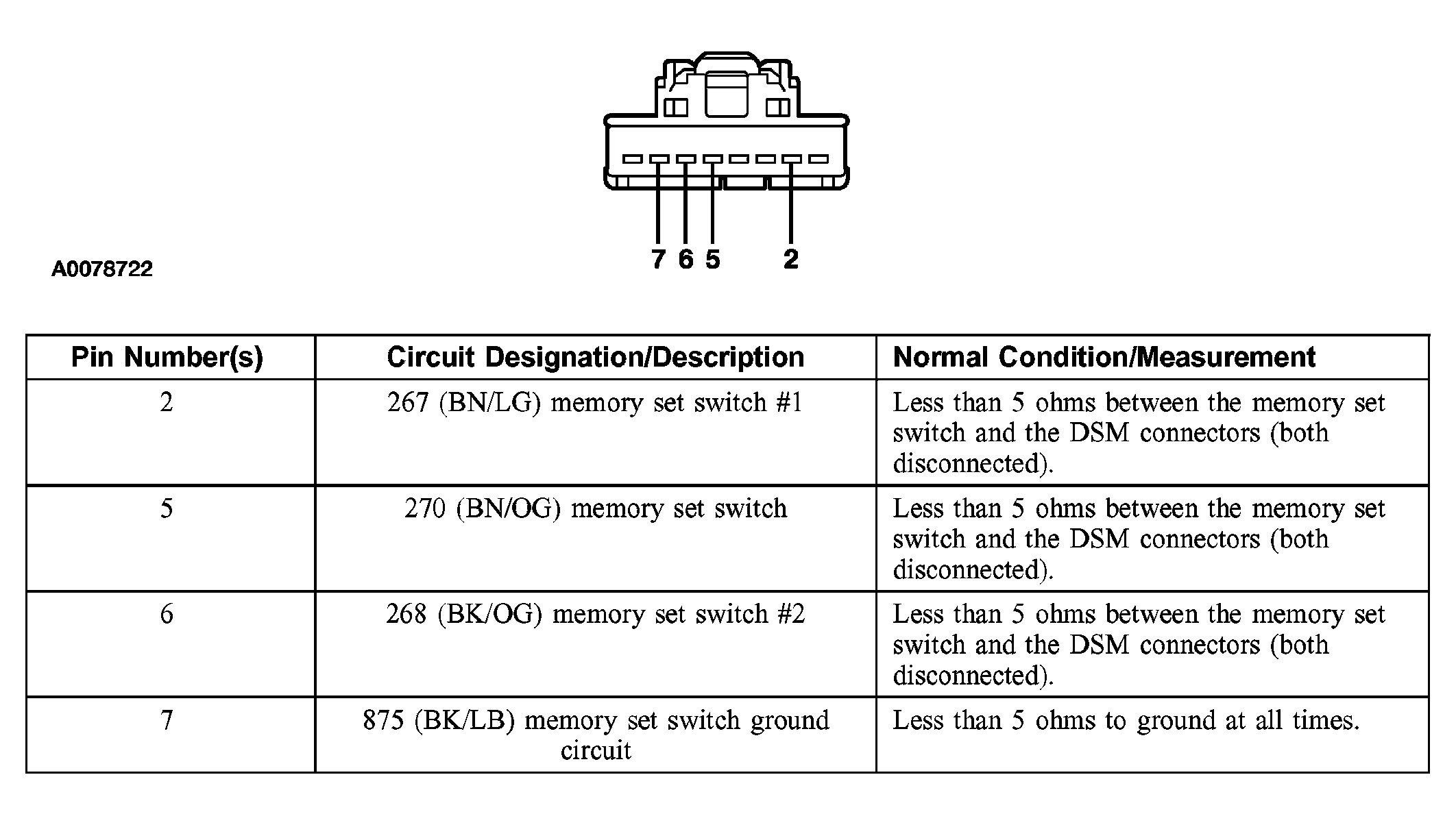

Memory Set Switch C3246

Fig 11: Identifying Memory Set Switch C3246 Connector Pinouts

Courtesy of FORD MOTOR CO.
