Pinion Flange Runout Check - Circular

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Pinion bearing preload must be reset if the pinion nut has been loosened or removed for pinion flange reindexing or installation.
  1. With the vehicle in NEUTRAL, position it on a twin-post hoist that supports the axles. Refer to JACKING & LIFTING .
  2. Remove the driveshaft.
  3. Check the pinion flange for damage.
  4. Position the Companion Flange Runout Gauge on the pinion flange.

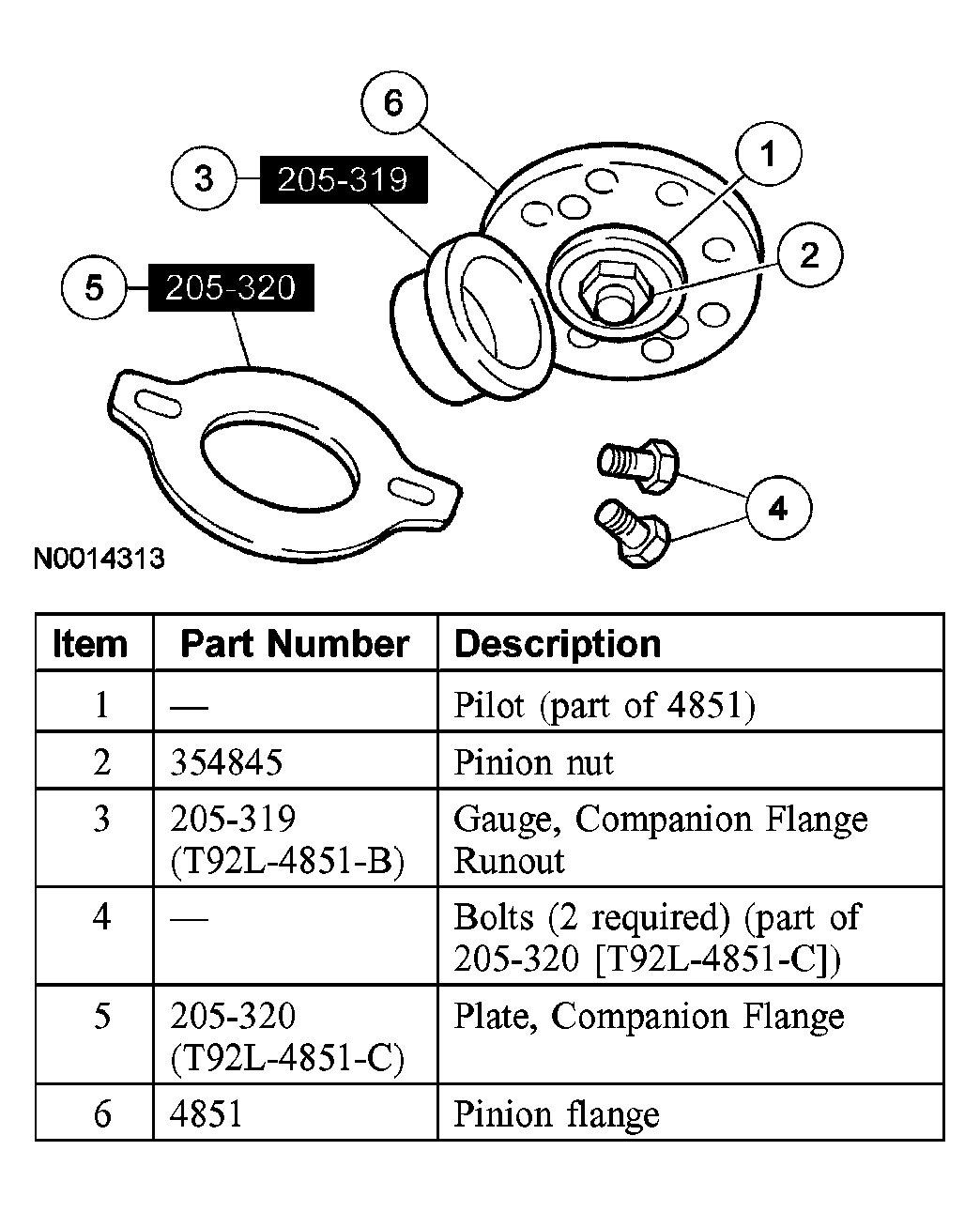

    Fig 1: Identifying Pinion Flange Components
    G03959801Courtesy of FORD MOTOR CO.
  5. Assemble the special tools.
    Fig 2: Assembling Special Tools
    G03897231Courtesy of FORD MOTOR CO.
  6. Align the holes on the clamp plate with the holes in the pinion flange and install the bolts. Snug the bolts evenly.
    Fig 3: Aligning Holes On Clamp Plate With Holes In Pinion Flange And Installing Bolts
    G04582824Courtesy of FORD MOTOR CO.
  7. Position the special tools as shown. Turn the Companion Flange Runout Gauge, and locate and mark the high spot on the pinion flange with yellow paint.
    Fig 4: Positioning Special Tools
    G03897233Courtesy of FORD MOTOR CO.

    If the flange runout exceeds 0.25 mm (0.010 in), remove the pinion flange, reindex the flange 1-half turn on the pinion, and reinstall it.

  8. Check the runout again. If necessary, rotate the flange until an acceptable runout is obtained. If the flange runout is still more than 0.25 mm (0.010 in), install a new pinion flange.
    Fig 5: Rotating Flange Until An Acceptable Runout Is Obtained
    G03878430Courtesy of FORD MOTOR CO.
  9. For the rear axle, if excessive runout is still evident after installation of the pinion flange, install a new ring and pinion. Repeat the above checks until the runout is within specification.
  10. Install the driveshaft.
