Lifting Points
WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Damage to the suspension, exhaust or steering linkage components may occur if care is not exercised when positioning the hoist adapters prior to lifting the vehicle.
CAUTION:
Position the hoist adapters to avoid contact with the fuel tank.
The following offers general guidelines for vehicle lifting. Additionally, hoist manufacturers offer their own operating precautions. Be sure to read and understand operating instructions for the lifting equipment before use.
NOTE:

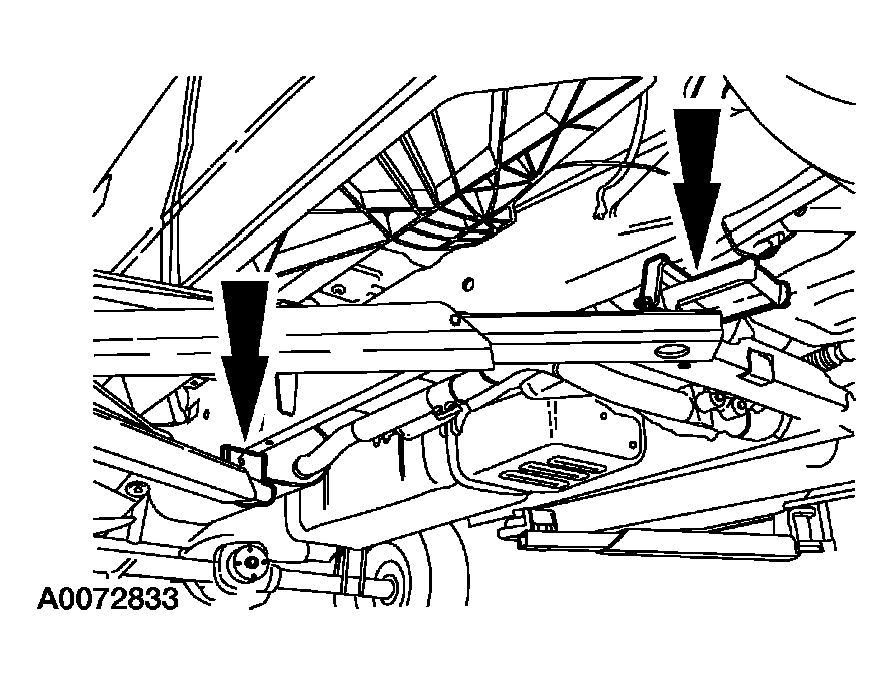

Right side is shown, left side is similar.
Position the hoist directly under the frame rails.
