Safety Belt Retractor - Rear, SuperCab: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.

Remove the shoulder safety belt guide.
1. Position the shoulder safety belt guide cover up.
2. Use the Seat Belt Bolt Bit to remove the bolt.
3. Remove the shoulder safety belt guide.

  Fig 1: Removing Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the rear seat backrest. For additional information, refer to SEATING .
Remove the safety belt anchor.
1. Use the Seat Belt Bolt Bit to remove the bolt.
2. Remove the safety belt anchor.

  Fig 2: Removing Safety Belt Anchor
  Courtesy of FORD MOTOR CO.
Remove the front door scuff plate and the rear center trim panel.
Remove the safety belt retractor.
1. Use the Seat Belt Bolt Bit to remove the bolt.
2. Remove the safety belt retractor.

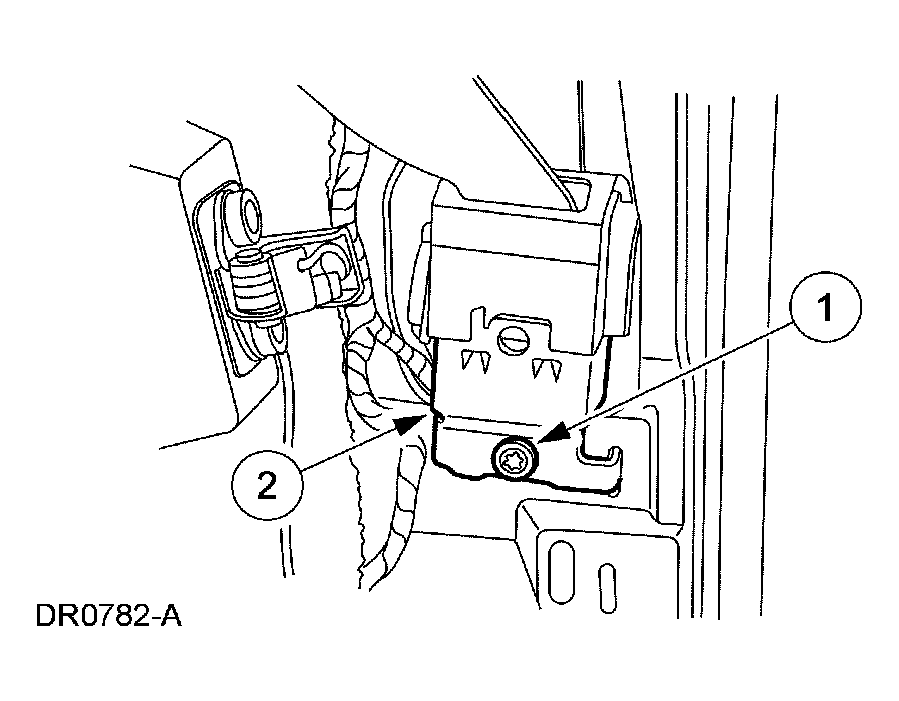

  Fig 3: Removing Safety Belt Retractor
  Courtesy of FORD MOTOR CO.
