Safety Belt Retractor - Rear, SuperCab: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation.

NOTE: Make sure to tighten bolts to specification.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.

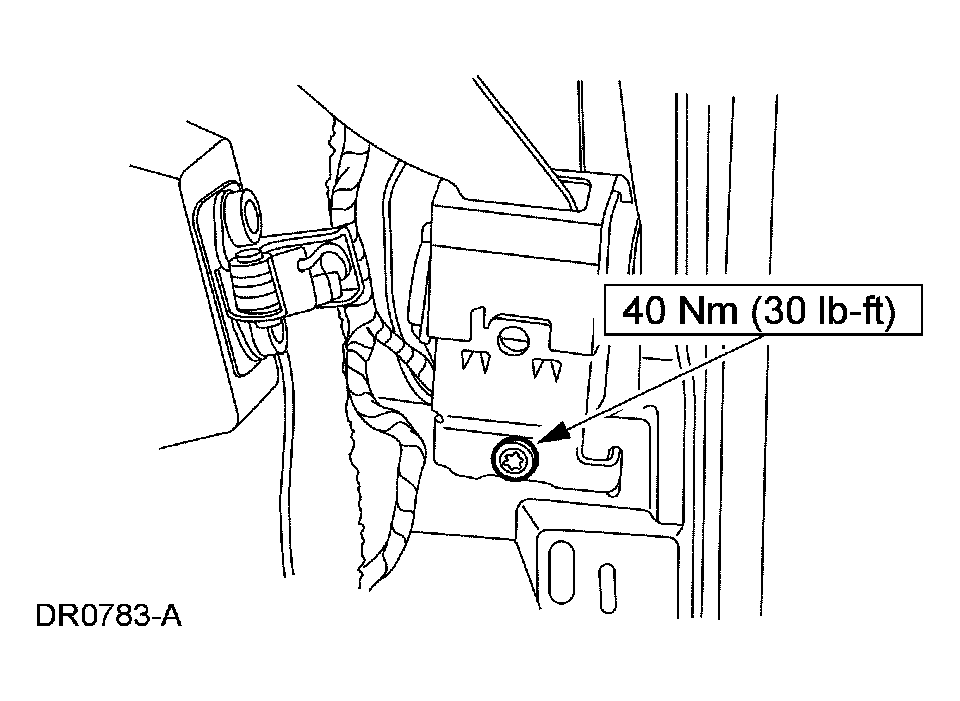

Fig 1: Identifying Rear, SuperCab Safety Belt Retractor Bolts Tightening Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Rear, SuperCab Safety Belt Retractor Bolts Tightening Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Rear, SuperCab Safety Belt Retractor Bolts Tightening Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Check the restraint system for correct operation.
