Safety Belt Retractor - Front, Without Seat Integrated Restraints (SIR): Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Driver side shown, passenger side similar.

Regular cab vehicles

Using the special tool, remove the bolt. Remove the safety belt anchor.

Fig 1: Identifying Safety Belt Anchor Bolt
Courtesy of FORD MOTOR CO.

NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.

Remove the driver side shoulder safety belt guide.
1. Open the cover.
2. Remove the nut.
3. Remove the shoulder safety belt guide.

  Fig 2: Removing Driver Side Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the driver side door scuff plate and rear corner trim panel.

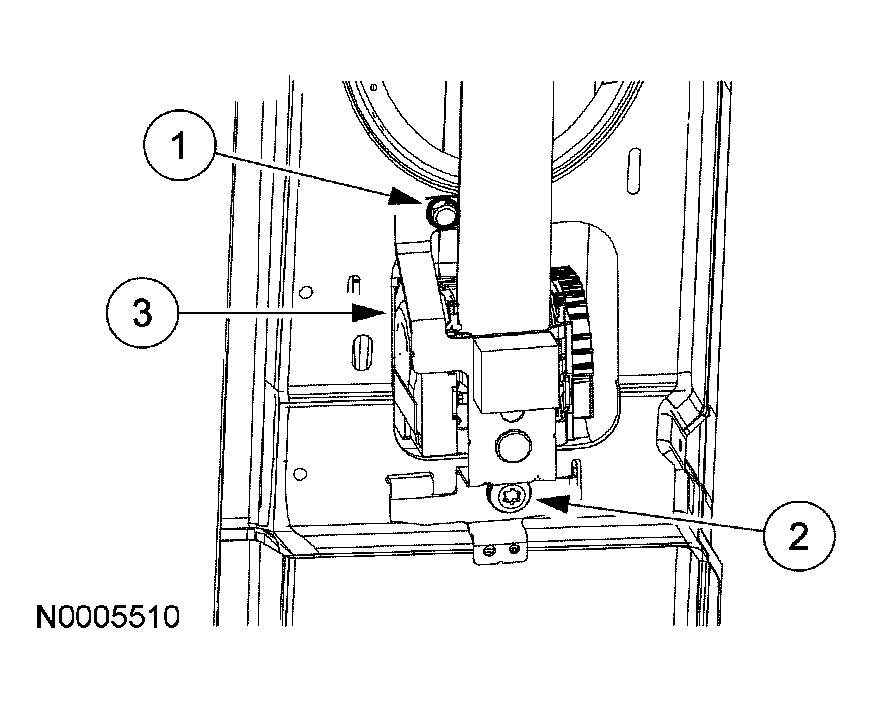

Remove the safety belt retractor.
1. Remove the bolt.
2. Using the special tool, remove the bolt.
3. Remove the safety belt retractor.

  Fig 3: Removing Safety Belt Retractor
  Courtesy of FORD MOTOR CO.

SuperCab vehicles

Remove the safety belt shoulder height adjuster cover pin-type retainer.

Fig 4: Locating Safety Belt Shoulder Height Adjuster Cover Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Remove the safety belt shoulder height adjuster.
1. Position the safety belt shoulder height adjuster cover down.
2. Remove the bolt.
3. Remove the safety belt shoulder height adjuster.

  Fig 5: Removing Safety Belt Shoulder Height Adjuster
  Courtesy of FORD MOTOR CO.
Remove the driver side door scuff plate.

Fig 6: Locating Driver Side Door Scuff Plate
Courtesy of FORD MOTOR CO.
Remove the bolt and position the safety belt retractor to the side.

Fig 7: Positioning Safety Belt Retractor To Side
Courtesy of FORD MOTOR CO.
Remove the bolt and the safety belt anchor.
- Remove the safety belt retractor.

  Fig 8: Locating Removing Safety Belt Anchor Bolt
  Courtesy of FORD MOTOR CO.

Crew Cab driver side

Remove the front driver side safety belt anchor.
1. Using the special tool, remove the bolt.
2. Remove the front driver side safety belt anchor.

  Fig 9: Removing Front Driver Side Safety Belt Anchor
  Courtesy of FORD MOTOR CO.
Crew Cab passenger side

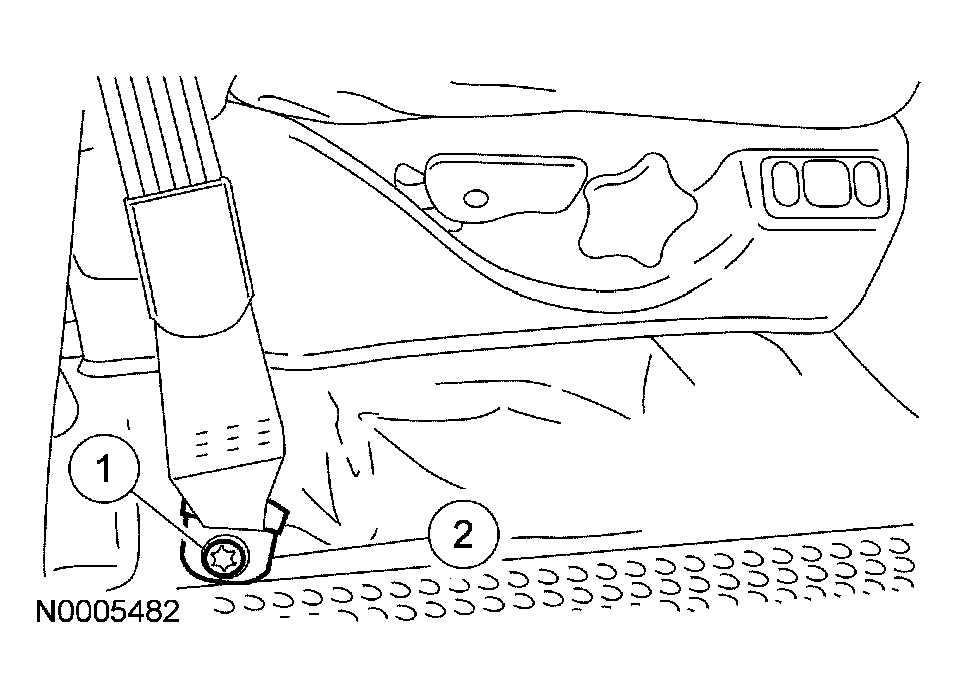

Remove the front passenger side safety belt anchor.
1. Using the special tool, remove the bolt.
2. Remove the front passenger side safety belt anchor.

  Fig 10: Removing Front Passenger Side Safety Belt Anchor
  Courtesy of FORD MOTOR CO.

Crew Cab vehicles

NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide cover.

Remove the driver side shoulder safety belt guide.
1. Open the cover.
2. Remove the nut.
3. Remove the shoulder safety belt guide.

  Fig 11: Removing Driver Side Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Remove the front and rear door scuff plates, the rear assist handle and the driver side B-pillar trim panel.

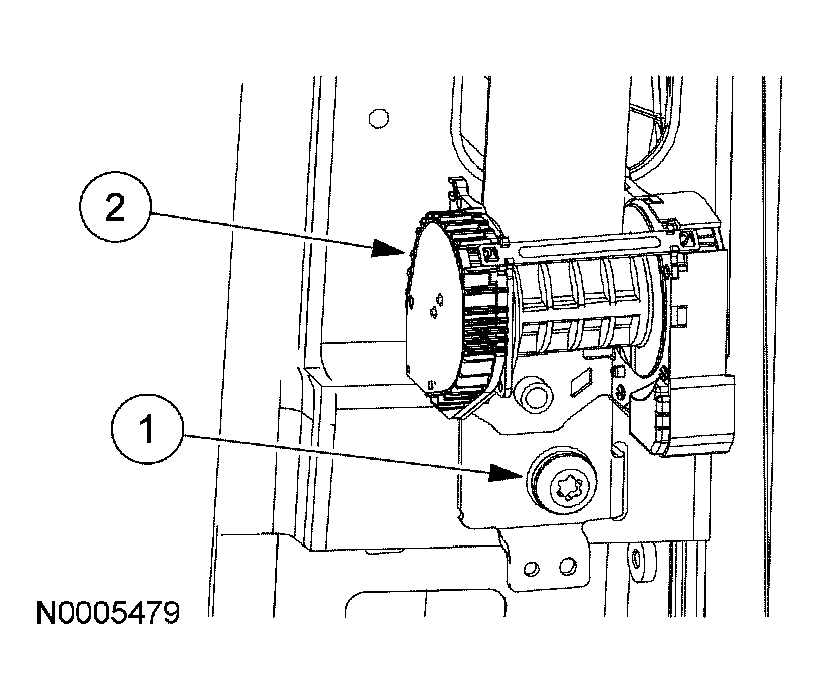

Remove the safety belt retractor.
1. Using the special tool, remove the bolt.
2. Pivot up at the bottom and remove the safety belt retractor.

  Fig 12: Removing Safety Belt Retractor
  Courtesy of FORD MOTOR CO.
