Safety Belt Buckle - Front, 40/20/40 Seat, Driver and Passenger: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. Remove the affected seat. For additional information, refer to SEATING .

    2. Driver safety belt buckle

  2. Disconnect the safety belt warning switch electrical connector.
    • Remove the pin-type retainer from the safety belt warning switch electrical connector.

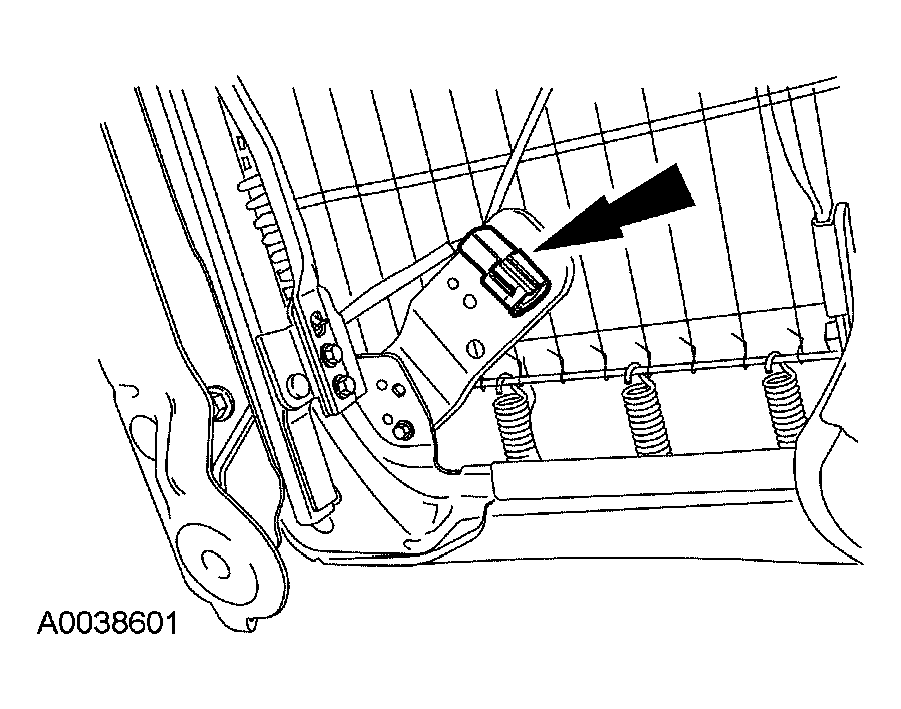

      Fig 1: Locating Safety Belt Warning Switch Electrical Connector
      G03912007Courtesy of FORD MOTOR CO.

    3. All vehicles

    NOTE: Driver side shown, passenger side similar.
  3. Remove the safety belt buckle.
    1. Remove the safety belt buckle nut.
    2. Remove the safety belt buckle.
      Fig 2: Removing Safety Belt Buckle
      G03912008Courtesy of FORD MOTOR CO.

    4. Driver safety belt buckle

  4. Remove the front inboard track-to-seat pan bolt.
    Fig 3: Front Inboard Track-To-Seat Pan Bolt Torque Specification
    G03912009Courtesy of FORD MOTOR CO.
  5. Loosen the rear inboard track-to-seat pan bolt to allow the removal of the electrical connector.
  6. Position the electrical connector as shown and pull it through the seat opening.
    Fig 4: Positioning Electrical Connector
    G03912010Courtesy of FORD MOTOR CO.
