Safety Belt - Front Bench Seat: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the utility tray, if necessary.
  2. Disconnect and detach the driver safety belt switch.
    Fig 1: Locating Driver Safety Belt Switch
    G03926147Courtesy of FORD MOTOR CO.
  3. Use the T-55 Torx bit to remove the LH safety belt and buckle bolt.

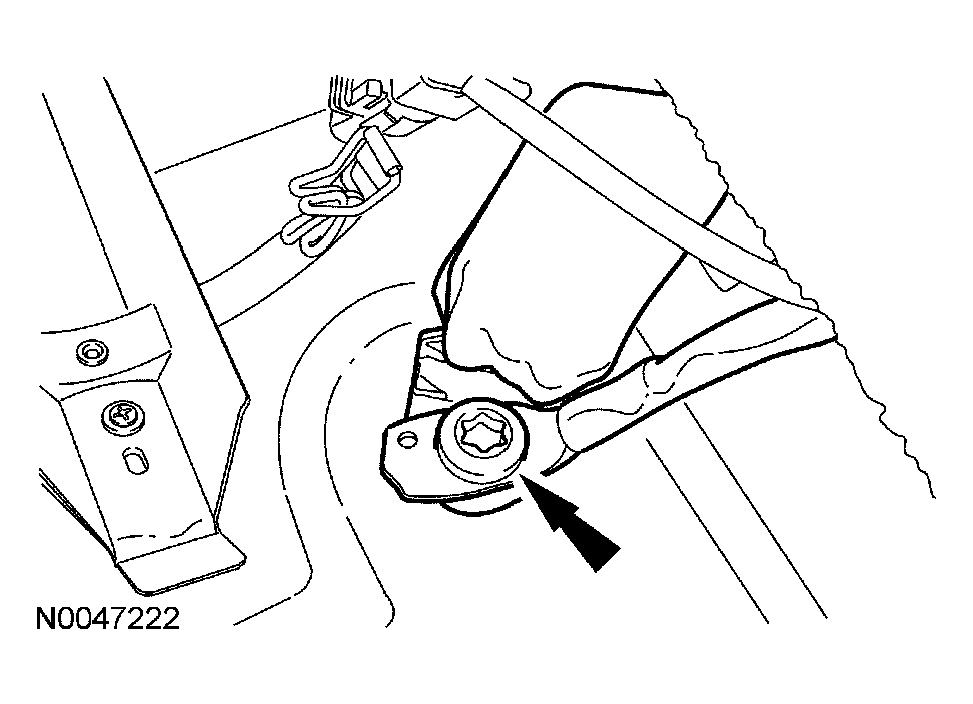

    Fig 2: Locating Buckle Bolt
    G03926148Courtesy of FORD MOTOR CO.
  4. Remove the safety belt.
