Safety Belt - Front 40/20/40 Seat, Center: Removal

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cap from the safety belt buckle nut.
    Fig 1: Removing Cap From Safety Belt Buckle Nut
    G03911990Courtesy of FORD MOTOR CO.
  2. Remove the safety belt buckle.
    1. Remove the safety belt buckle nut.
    2. Remove the safety belt buckle.
      Fig 2: Removing Safety Belt Buckle
      G03911991Courtesy of FORD MOTOR CO.
  3. Remove the cap from the safety belt nut.
  4. Remove the safety belt tongue.
    1. Remove the safety belt nut.
    2. Remove the safety belt.

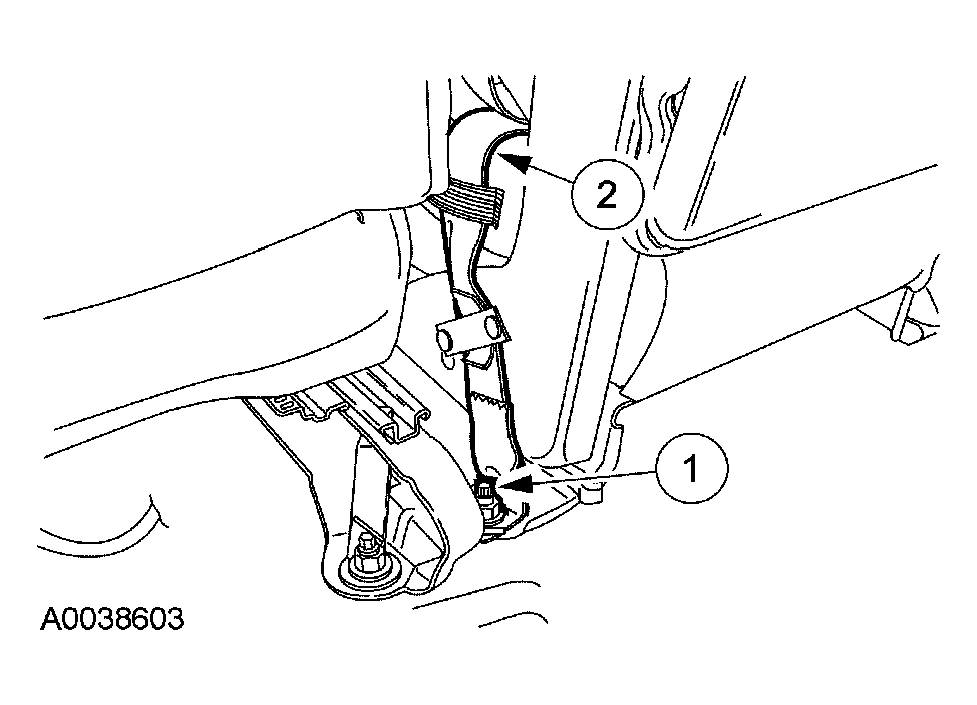

      Fig 3: Removing Safety Belt Tongue
      G03911992Courtesy of FORD MOTOR CO.
