Safety Belt - Front 40/20/40 Seat, Center: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Make sure the safety belt webbing is not twisted prior to installation.
NOTE: Make sure to tighten nuts to specification.
  1. Install the safety belt.
    1. Position the safety belt in the retaining straps.
    2. Position the safety belt anchor.
    3. Install the nut.

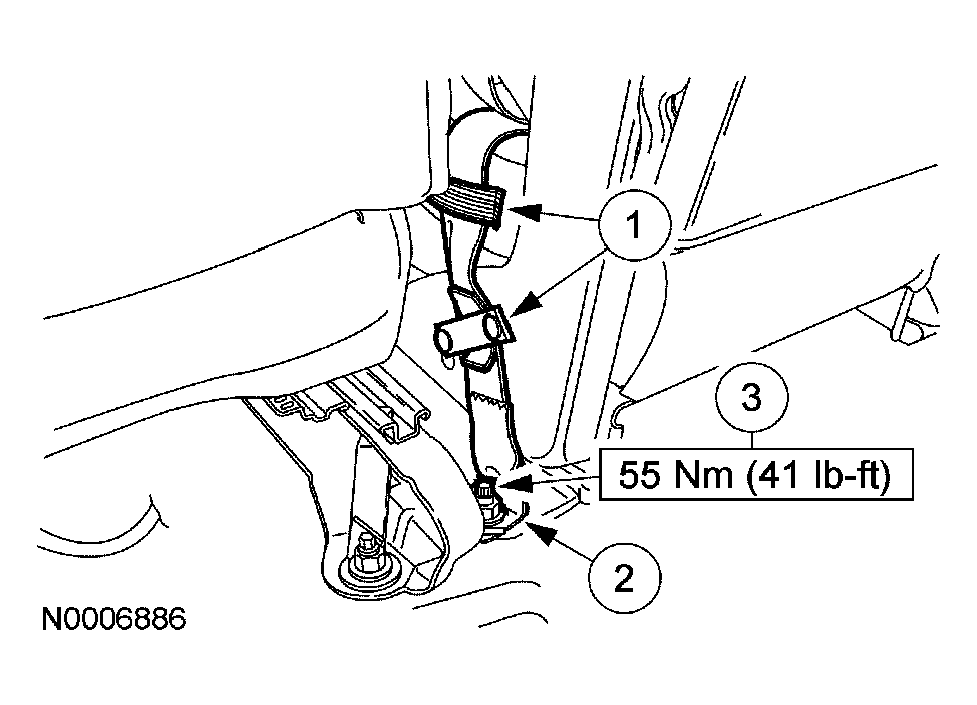

      Fig 1: Installing Safety Belt - With Torque Specifications
      G03911993Courtesy of FORD MOTOR CO.
  2. Install the safety belt buckle.
    1. Position the safety belt buckle.
    2. Make sure the safety belt buckle is positioned in the retaining strap.
    3. Install the safety belt buckle nut.
      Fig 2: Installing Safety Belt Buckle - With Torque Specifications
      G03911994Courtesy of FORD MOTOR CO.
  3. Install the cap on the safety belt buckle nut.
  4. Check the active restraint system for correct operation.
