Front Safety Belt Retractor - With Seat Integrated Restraints (SIR): Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    All seats

    NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    Fig 1: Identifying Safety Belt Guide Opening
    G03926094Courtesy of FORD MOTOR CO.
  1. Route the safety belt anchor, tongue, web guide and safety belt up through the opening at the safety belt guide.
  2. Install the safety belt retractor.
    1. Align the tab into the seat backrest bracket.
    2. Install the bolt.

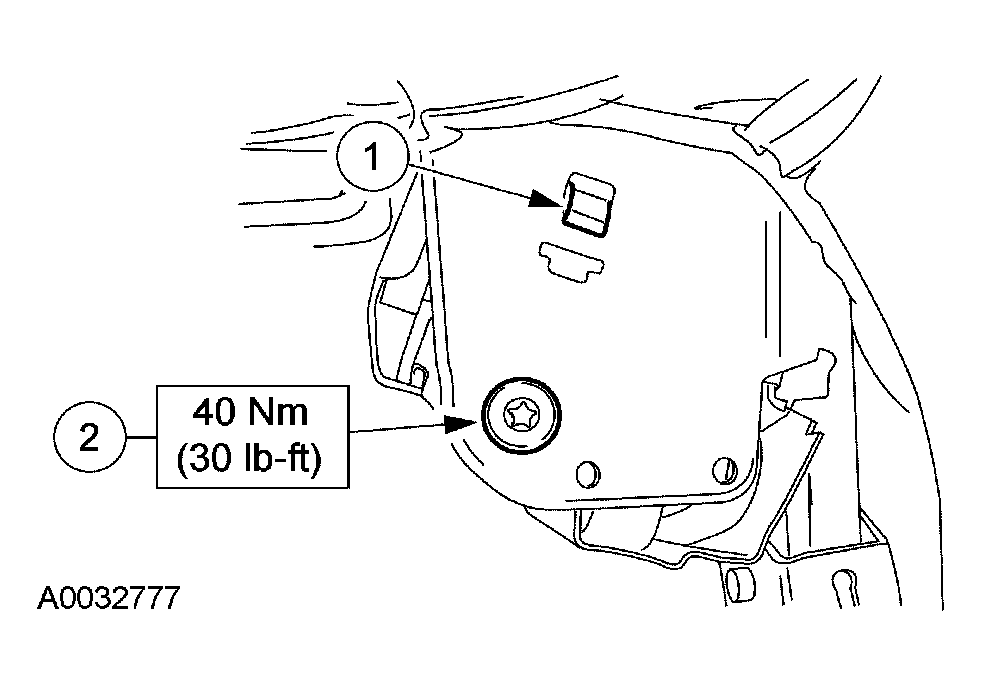

      Fig 2: Installing Safety Belt Retractor - With Torque Specifications
      G03926095Courtesy of FORD MOTOR CO.
  3. NOTE: Prior to installation, make sure the safety belt webbing is not twisted.
  4. Install the safety belt anchor and nut.
    • Make sure the anti-rotation tab is correctly positioned into the seat frame.
      Fig 3: Installing Safety Belt Anchor Nut - With Torque Specifications
      G03925679Courtesy of FORD MOTOR CO.
  5. Install the safety belt web guides.
    1. Position the front safety belt web guide.
    2. Position the upper safety belt web guide.
    3. Install the pin-type retainers.

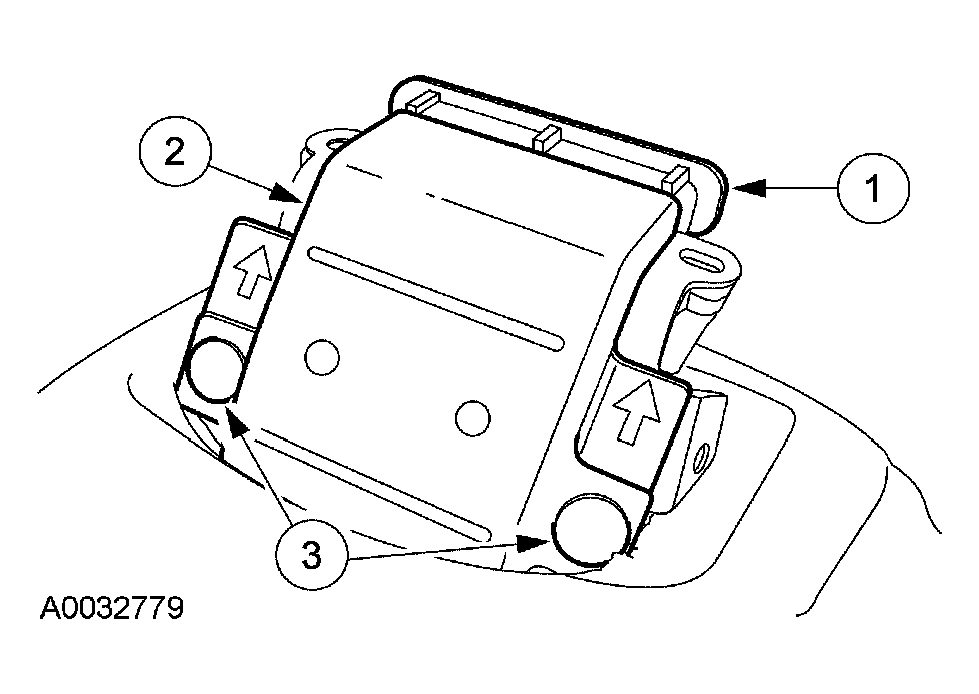

      Fig 4: Installing Safety Belt Web Guides
      G03926097Courtesy of FORD MOTOR CO.
  6. NOTE: Do not reverse the bracket during installation.
    Fig 5: Installing Bracket Screws
    G03925674Courtesy of FORD MOTOR CO.
  7. Position the bracket as noted in removal. Install the screws.
  8. NOTE: The inboard and outboard tower cap covers are not interchangeable. The outboard cover sits flat on the tower cap. The inboard cover sticks out from the tower cap.
    Fig 6: Locating Tower Cap Attachment Screws
    G03925660Courtesy of FORD MOTOR CO.
  9. Install the four tower cap attachment screws. Install the inboard, outboard and front screw covers.
  10. Install the seat backrest trim cover J-clips.

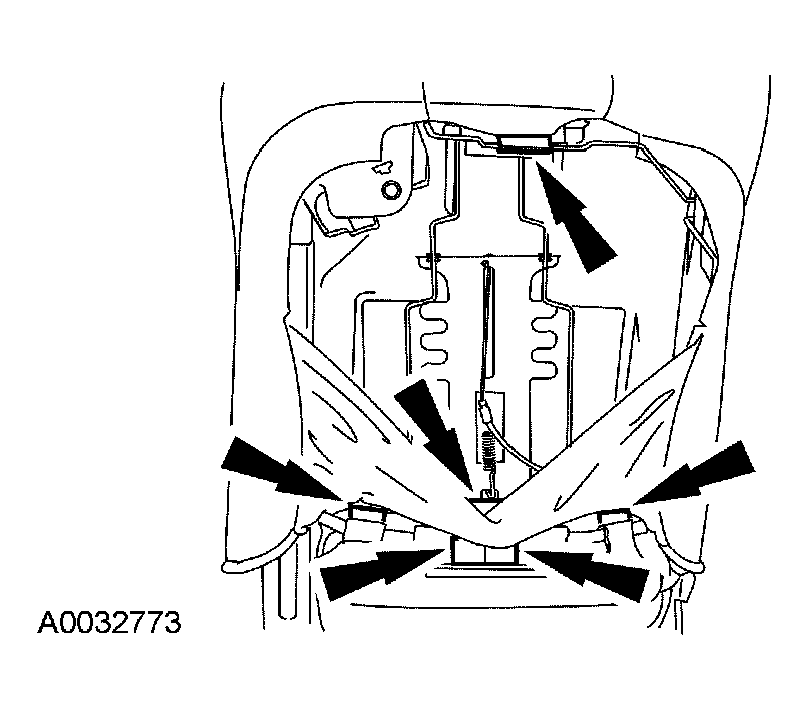

    Fig 7: Installing Seat Backrest Trim Cover J-Clips
    G03926088Courtesy of FORD MOTOR CO.
  11. Install the seat backrest trim panel.
    1. Position the seat backrest trim panel to the seat backrest and lift up, engaging the upper retaining clips.
    2. Push the sides of the seat backrest trim panel together, align the retaining clips to the seat backrest frame wires and release the cover, engaging the retaining clips into the seat backrest frame wire retainer.
    3. Install the seat backrest trim panel pin-type retainers.

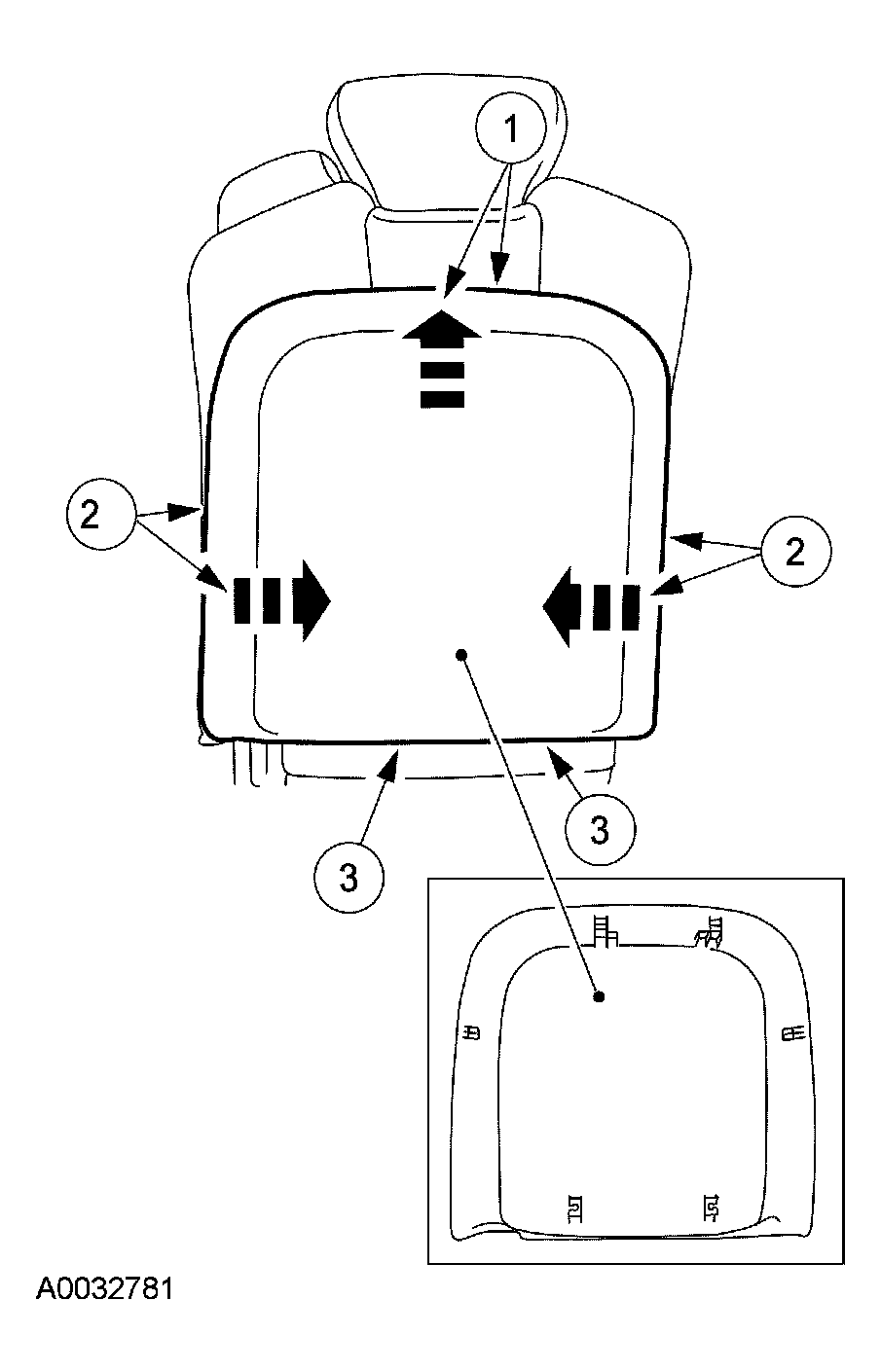

      Fig 8: Installing Seat Backrest Trim Panel
      G03926101Courtesy of FORD MOTOR CO.
  12. Position the side trim cover onto the seat.
    • Vehicles with power seat, feed the seat control switch wire harness through the seat opening as noted in removal.
    • Align the side shield to the pivot bolt.
      Fig 9: Locating Seat Backrest Pivot Bolt Shaft And Cover
      G03925447Courtesy of FORD MOTOR CO.
  13. Vehicles with heated seat

  14. Connect the heated seat switch electrical connector.
    Fig 10: Locating Heated Seat Switch Electrical Connector
    G03911415Courtesy of FORD MOTOR CO.
  15. All seats

  16. Position the lumbar adjuster control. Install the two screws securing the lumbar adjuster control to the seat track riser.
    Fig 11: Locating Lumbar Adjuster Control Screws
    G03925442Courtesy of FORD MOTOR CO.
  17. Install the seat side trim panel screws, the seat adjuster control knob and cover.
    1. Install the three seat side trim panel attachment screws (two shown).
    2. Install the seat recliner lever cover and screw.
    3. Install the lumbar control knob.
      Fig 12: Installing Seat Side Trim Panel Screws, Seat Adjuster Control Knob And Cover
      G03926105Courtesy of FORD MOTOR CO.
  18. Vehicles with power seats

  19. Connect the seat control switch electrical connector.
    Fig 13: Locating Seat Control Switch Electrical Connector
    G03925443Courtesy of FORD MOTOR CO.
  20. All seats

  21. Install the seat on the side with the affected safety belt retractor. For additional information, refer to SEATING .
  22. Check the active restraints for correct operation. For additional information, refer to SAFETY BELT SYSTEM  in the Diagnosis and Testing portion of this article.
