Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. For additional information, refer to FRONT SEAT BACKREST - CAPTAIN'S CHAIR AND 40 PERCENT  in this article.
  2. Release the J-clip.

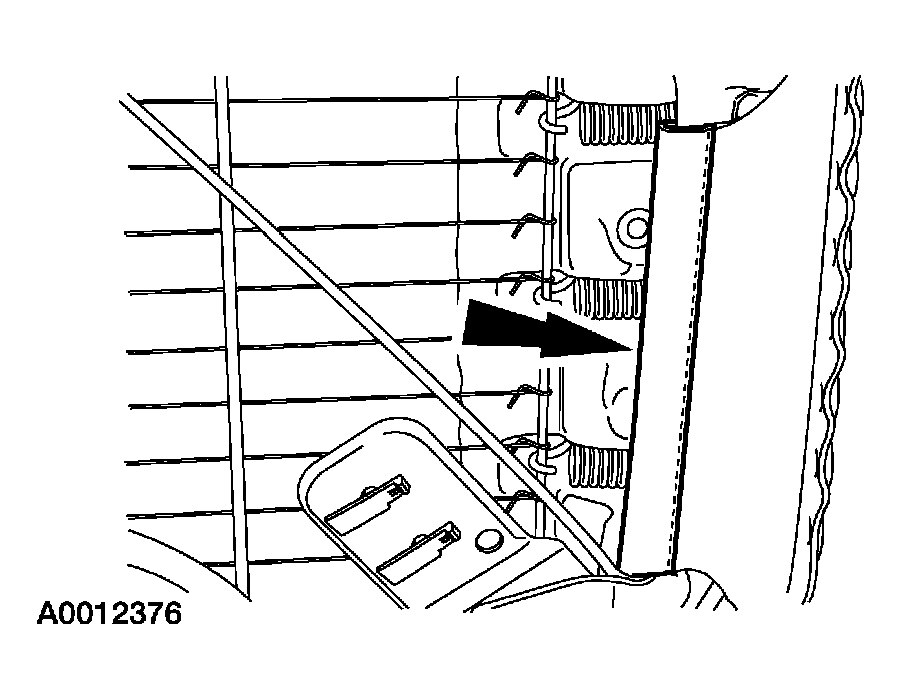

    Fig 1: Releasing J-Clip
    G03911475Courtesy of FORD MOTOR CO.
  3. Remove the seat latch bolts, and remove latch.

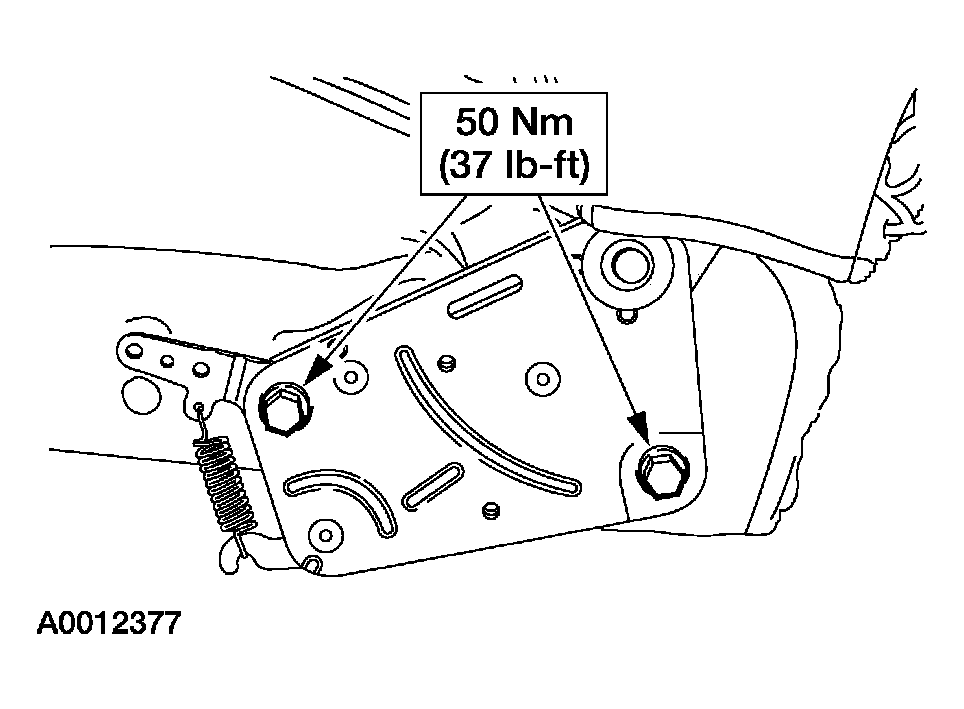

    Fig 2: Removing Seat Latch Bolts And Latch - With Torque Specifications
    G03911468Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
