Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The 60 percent seat is shown, 40 percent seat similar.

Remove the 60/40 percent rear seat. For additional information, refer to REAR SEAT - 60/40, CREW CAB in this article.

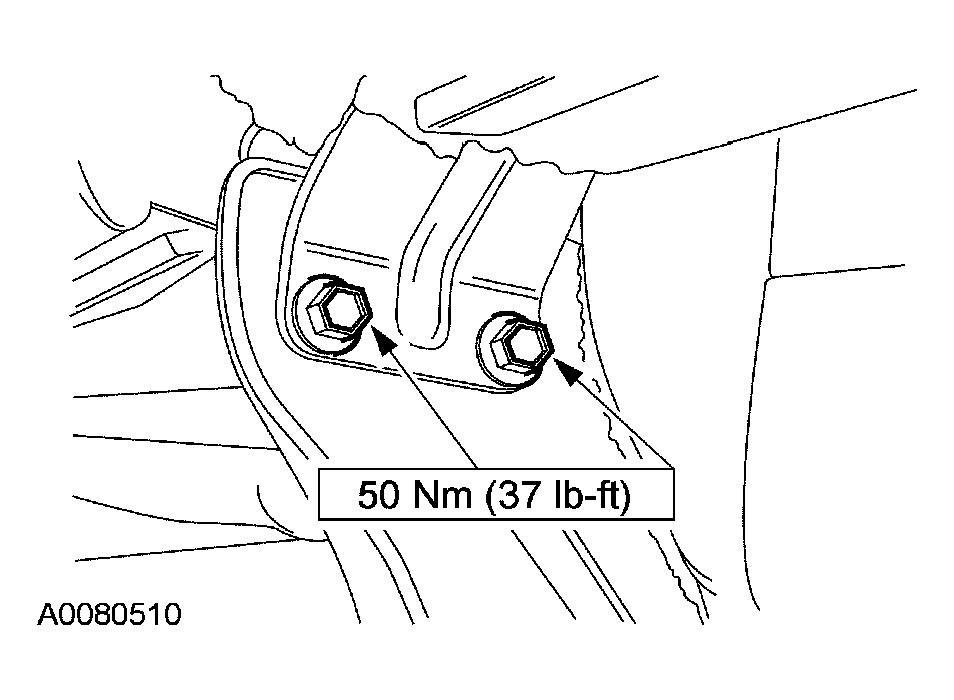

Remove the two inner bolts from the back side of the center support.

Fig 1: Removing Inner Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.

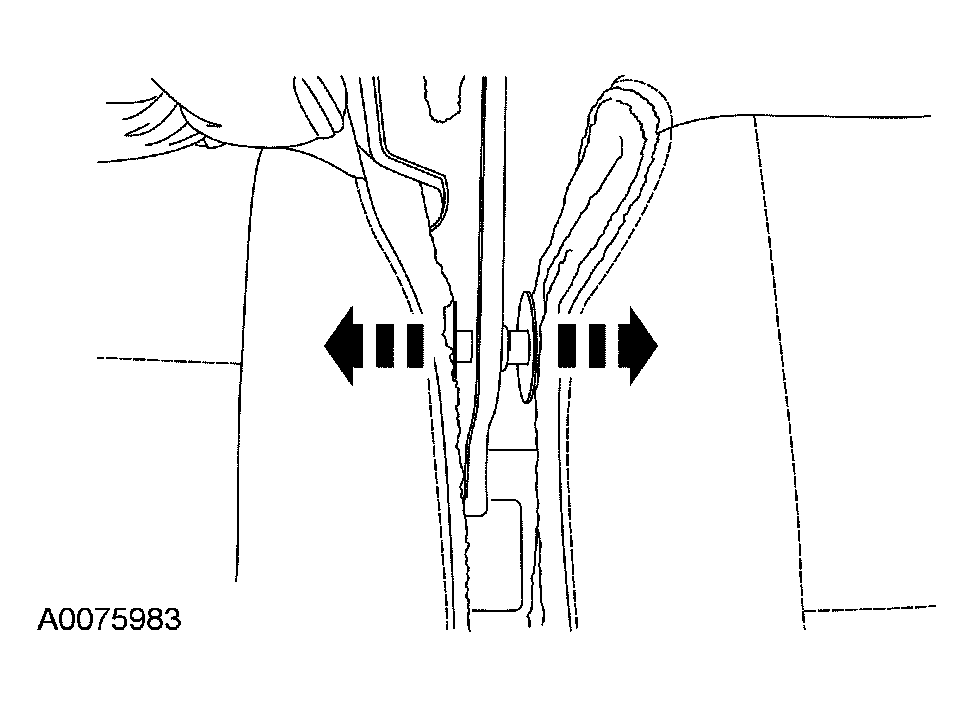

Separate the 40 percent seat and the 60 percent seat from the center support.

Fig 2: Separating Percent Seat
Courtesy of FORD MOTOR CO.

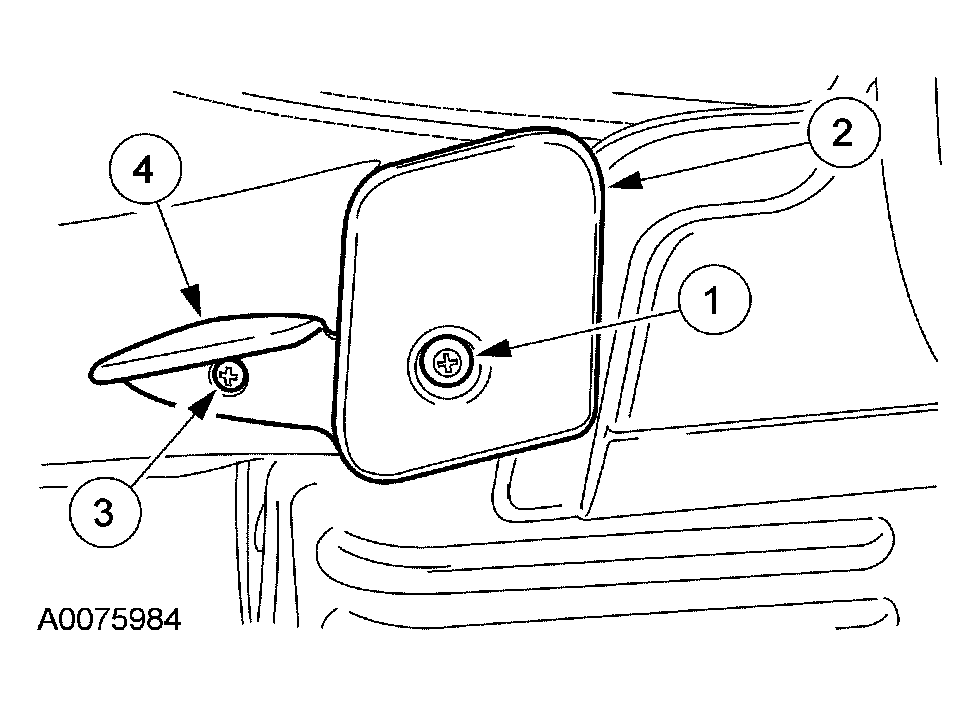

Remove the side shield and handle.
1. Remove the side latch shield screw.
2. Remove the side latch shield.
3. Remove the cushion release handle screw.
4. Remove the cushion handle.

  Fig 3: Removing Side Shield And Handle
  Courtesy of FORD MOTOR CO.
Pry the side shield to release the three clips and remove the shield.

Fig 4: Removing Shield
Courtesy of FORD MOTOR CO.

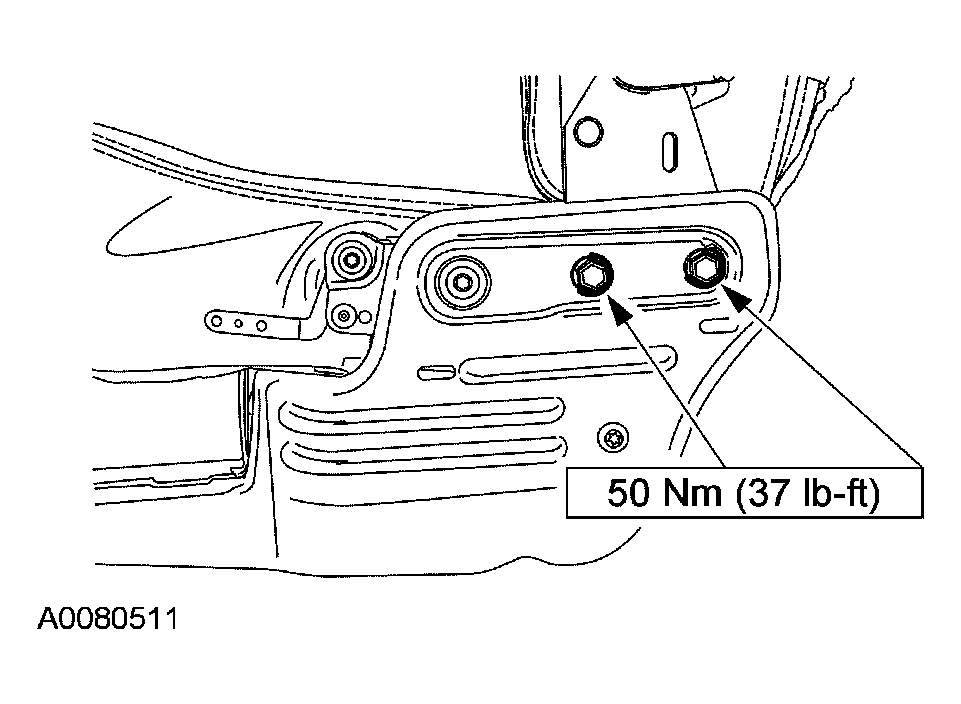

Remove the two backrest bolts and remove the backrest assembly.

Fig 5: Removing Backrest Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
