Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat quad bucket backrest. For additional information, refer to REAR SEAT BACKREST - CREW CAB, QUAD BUCKET  in this article.
  2. Release the J-clips.

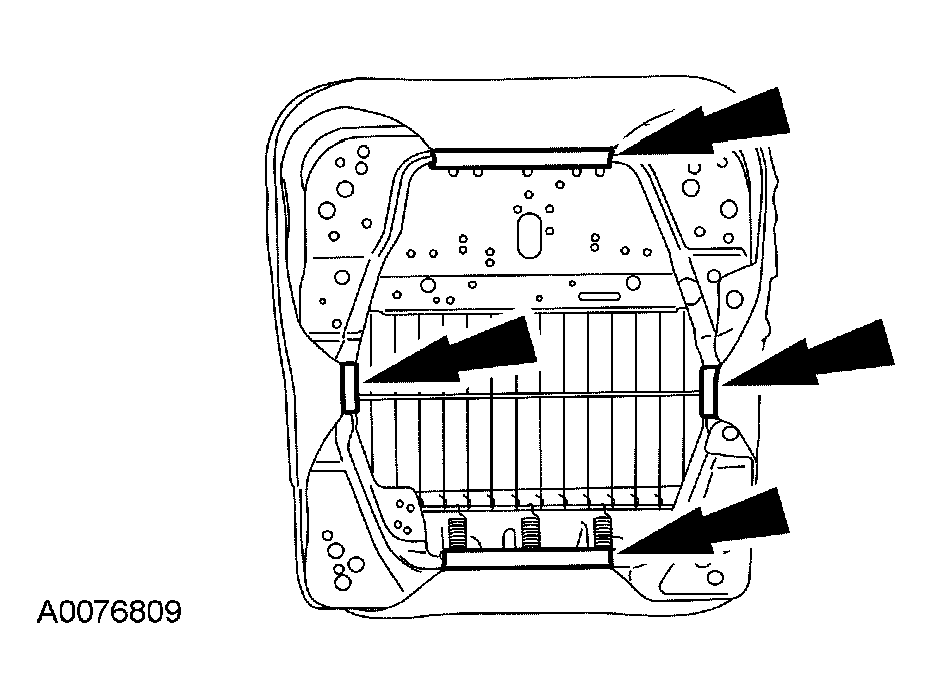

    Fig 1: Releasing J-Clips
    G03925634Courtesy of FORD MOTOR CO.
  3. Remove the two pin-type retainers.
    Fig 2: Removing Pin-Type Retainers
    G03925635Courtesy of FORD MOTOR CO.
  4. Remove the seat cushion pan from the cushion trim cover and foam pad assembly.

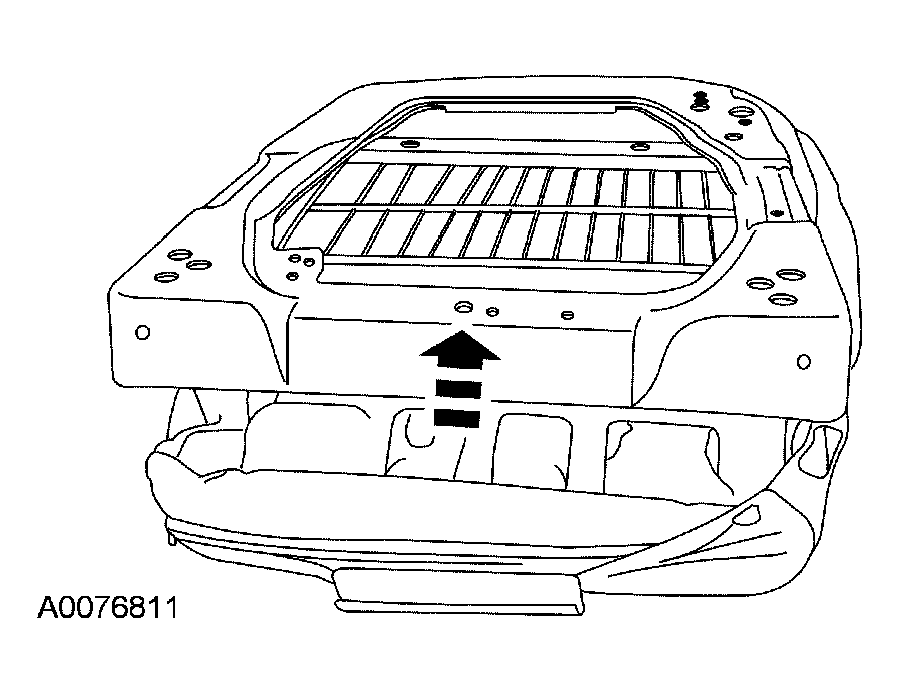

    Fig 3: Removing Seat Cushion Pan
    G03925636Courtesy of FORD MOTOR CO.
  5. Invert the seat cushion trim cover and remove all the hog rings and remove the trim cover from the cushion foam pad.
    Fig 4: Removing Trim Cover From Cushion Foam Pad
    G03925637Courtesy of FORD MOTOR CO.
  6. To assemble, reverse the disassembly procedure.
