Front Seat Cushion - With Seat Integrated Restraints (SIR): Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Place the seat cushion foam pad on the seat cushion pan.
Position and stretch the seat fabric over the foam cushion while attaching the hook and loop fasteners.

Fig 1: Positioning Stretch Seat Fabric Over
Courtesy of FORD MOTOR CO.

WARNING: The metal edges of seat cushion pan can be sharp.

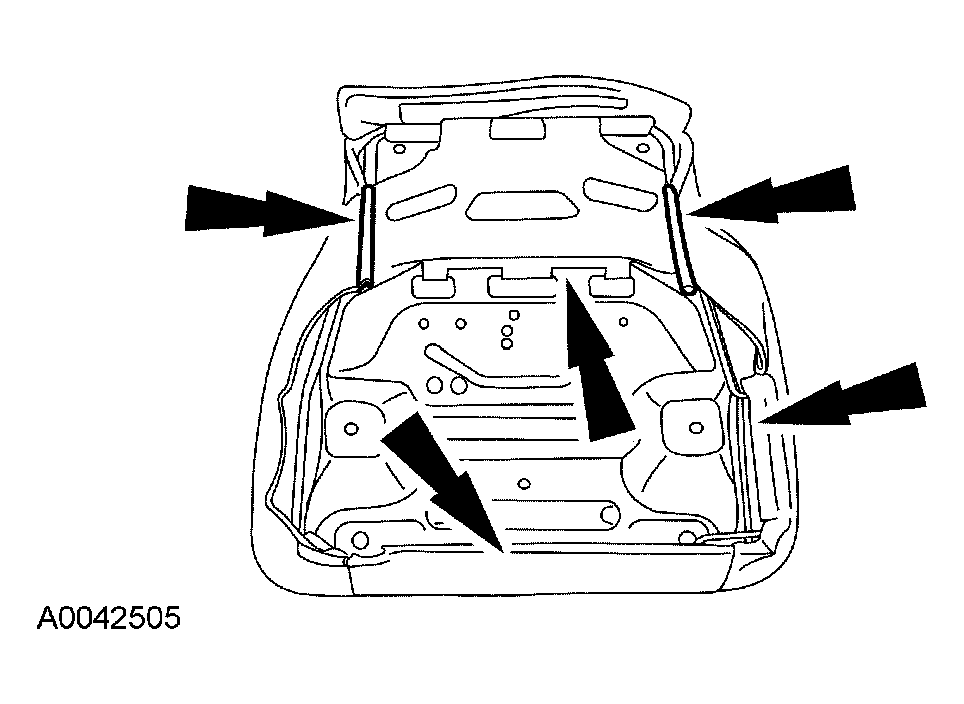

Fig 2: Attaching J-Clips, Butterfly Clips And Scrivets

Courtesy of FORD MOTOR CO.

Attach the J-clips, butterfly clips and scrivets.
Install the front seat cushion assembly. For additional information, refer to FRONT SEAT CUSHION - WITH SEAT INTEGRATED RESTRAINTS (SIR) in this article.
