Disassembly and Assembly

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat cushion. For additional information, refer to FRONT SEAT CUSHION - CAPTAIN'S CHAIR AND 40 PERCENT in this article.
Remove the bolt.

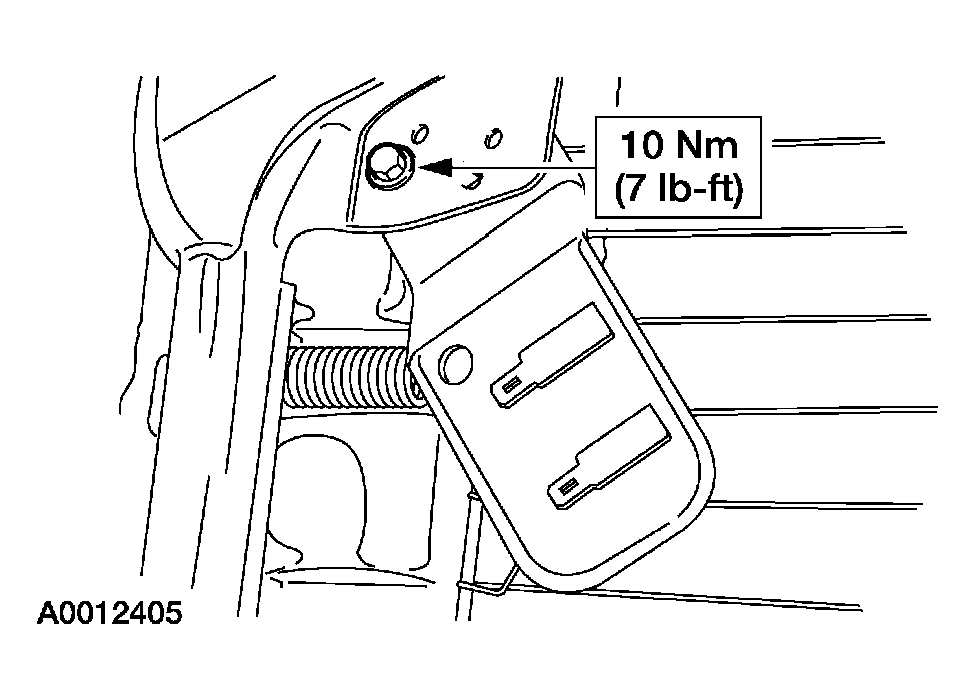

Fig 1: Removing Bolt - With Torque Specifications
Courtesy of FORD MOTOR CO.

WARNING: The metal edges of seat cushion pan can be sharp.

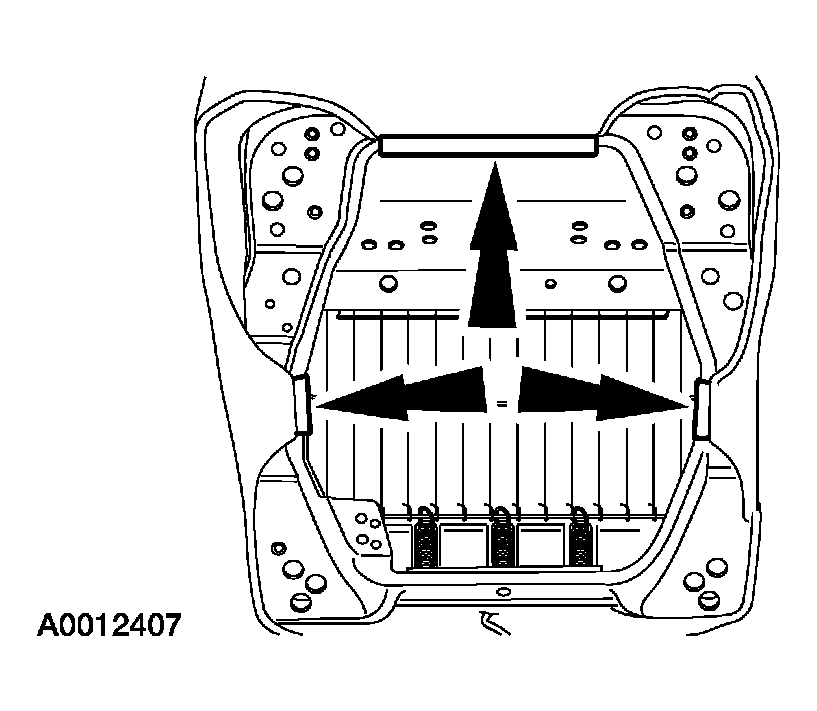

Fig 2: Uncliping J-Clips

Courtesy of FORD MOTOR CO.

Unclip the J-clips.
Position the upholstery and remove the pin-type retainers.

Fig 3: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Remove the seat cushion foam pad from the frame.

CAUTION: Use care when separating the seat cushion trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the seat cushion foam.

Remove the upholstery hook-and-loop strip.
To assemble, reverse the disassembly procedure.
