Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
    2. NOTE: Left side on SuperCab shown, regular cab, Crew Cab and tube running board are similar. The right side is symmetrically opposite.
    NOTE: Be sure to disconnect the running board lights electrical connector, if equipped.
  2. Remove the running board.
    1. Remove the bolts.
    2. Remove the running board.

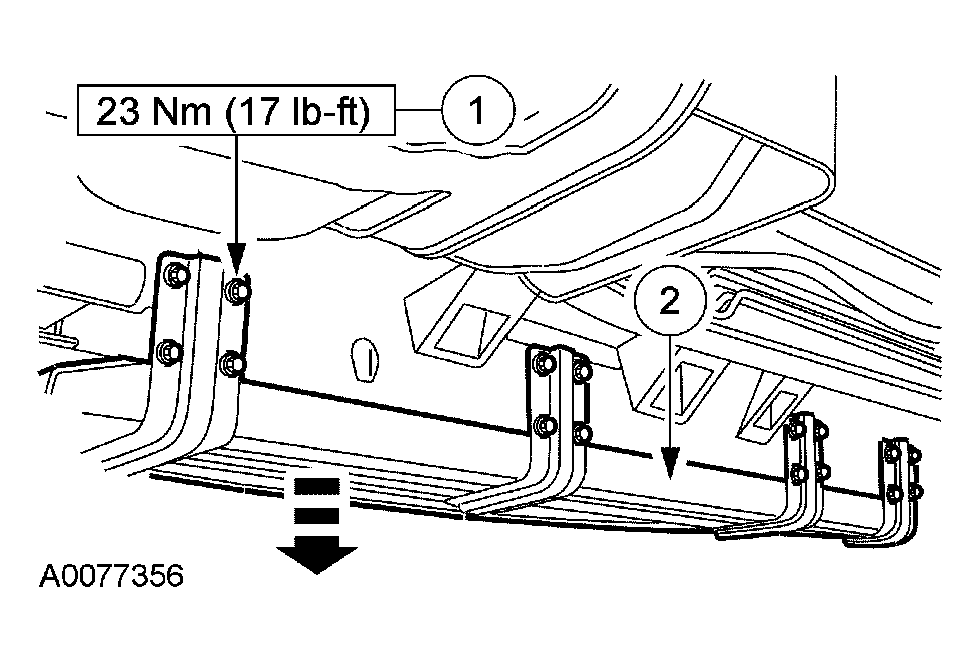

      Fig 1: Removing Running Board
      G03925303Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
