Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. For regular and crew cab, remove the rear quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION . For super cab, remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the speaker.
    1. Remove the screws.
    2. Disconnect the electrical connector.
    3. Remove the speaker.

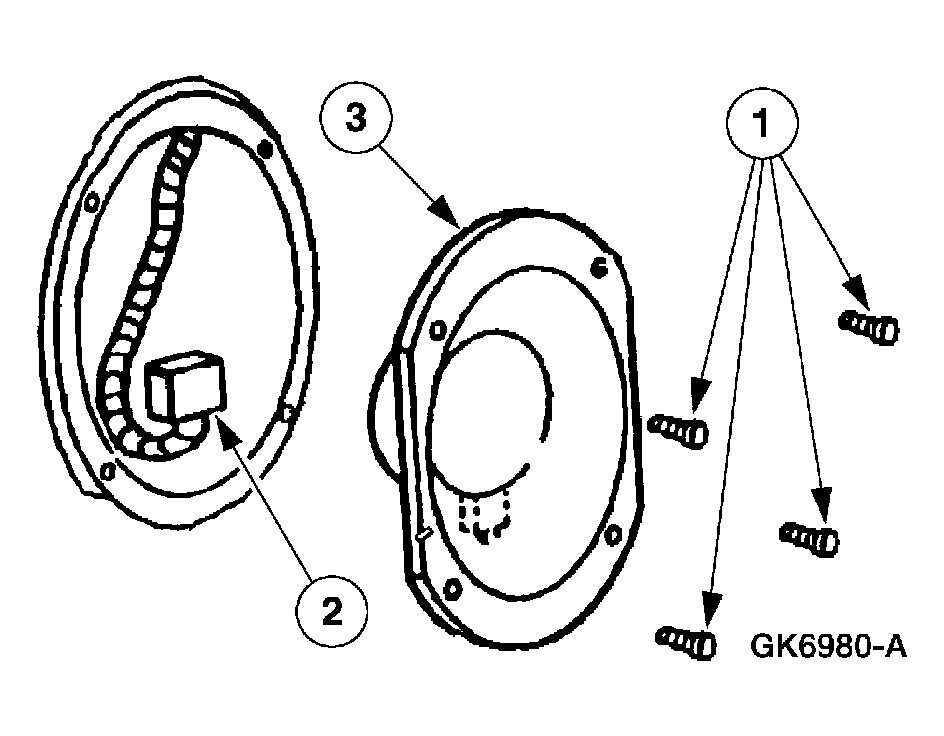

      Fig 1: Removing Speaker (Rear)
      G03891139Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
