Compass Zone Adjustment

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

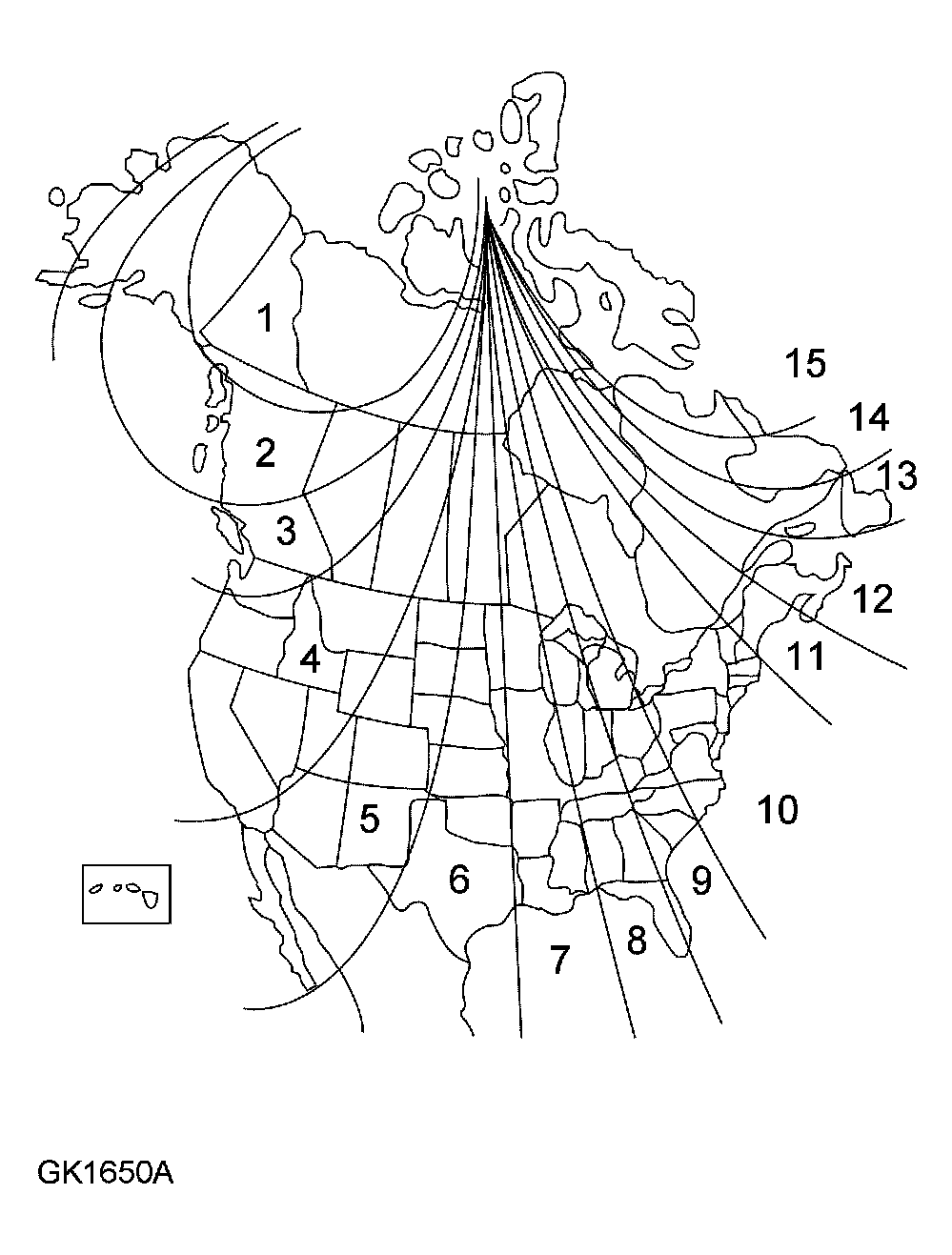

Fig 1: Identifying Compass Calibration Zones
G03924788Courtesy of FORD MOTOR CO.
  1. The factory zone setting is set to Zone 8. Check the Compass Calibration Zone map to verify the correct compass zone setting for your geographic location.
  2. Turn the ignition switch to the RUN position.
  3. From the info menu, press and hold the SETUP and RESET buttons simultaneously until the message center shows the current zone setting.
  4. Release the SETUP and RESET buttons. Press the SETUP button until the correct zone setting is displayed.
  5. To exit the zone setting mode, and to lock in the change, press and release the RESET button.
