Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the electrical connector.

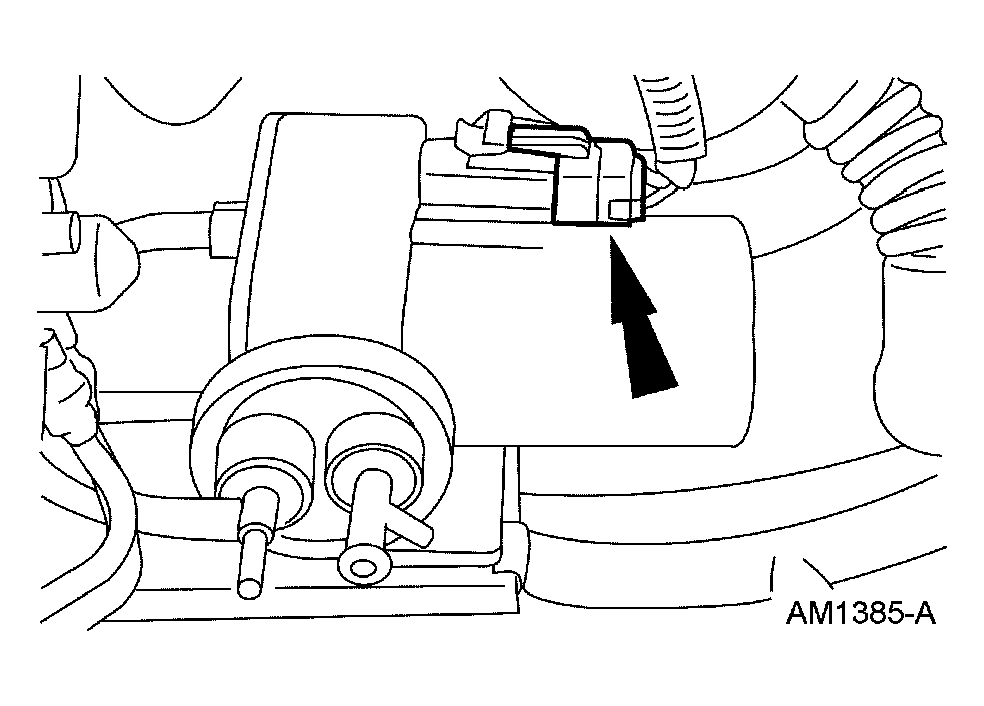

Fig 1: Locating Electrical Connector At Vacuum Pump
Courtesy of FORD MOTOR CO.
Remove the bolts.

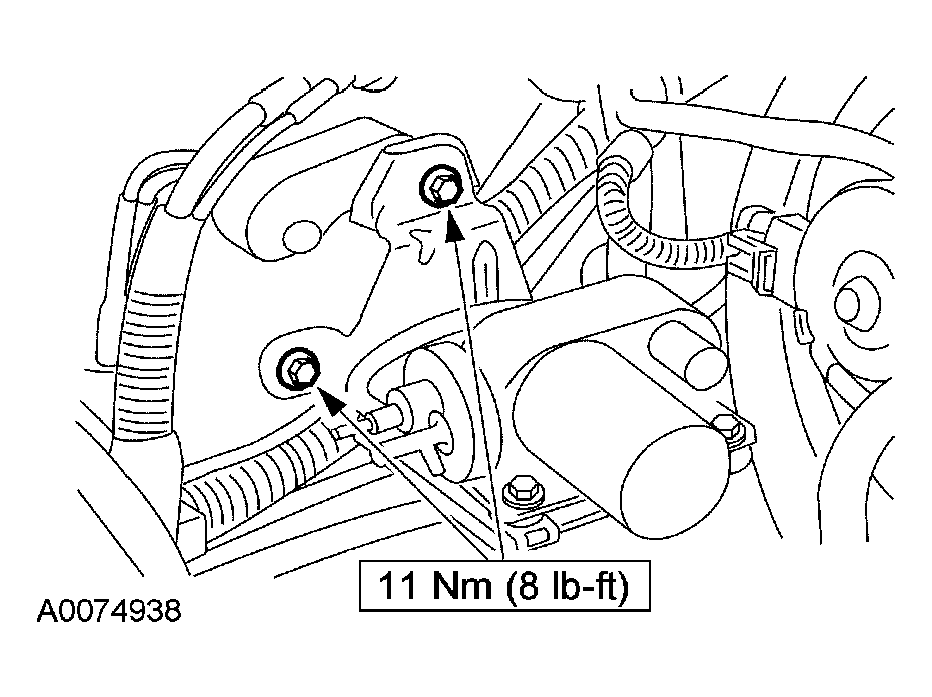

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.
Disconnect the vacuum hose and remove the vacuum pump and bracket.

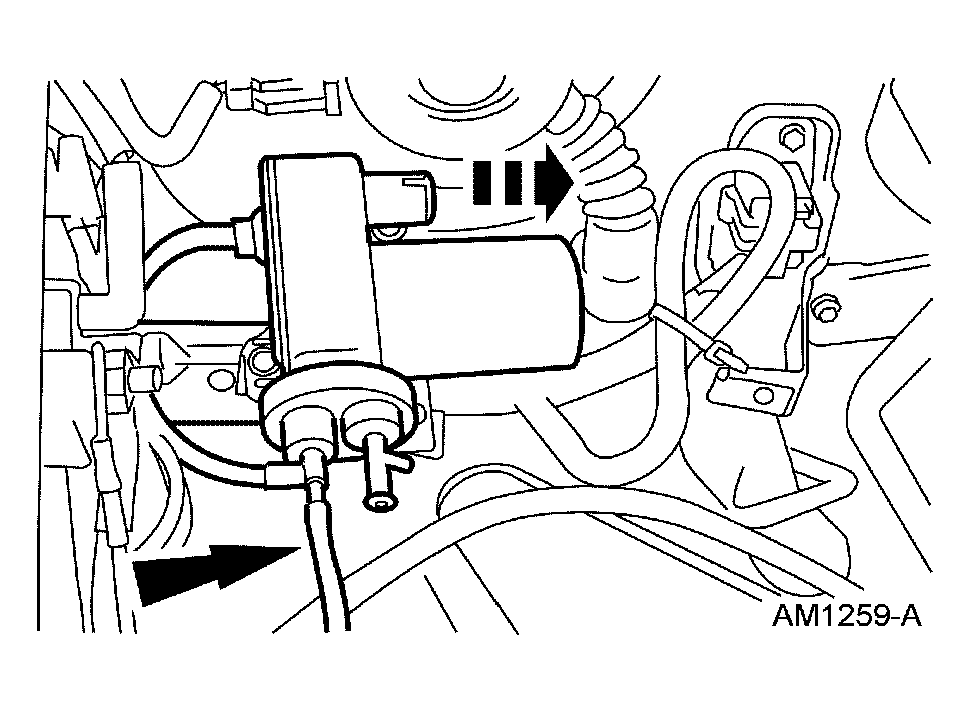

Fig 3: Disconnecting Vacuum Hose And Removing Vacuum Pump And Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
