Unable To Vent Fuel Tanks Or Fuel Lines: Pre-Inspection
WARNING: This page is about a different car, the 2002 Ford Pickup, 2002 Ford Econoline, 2002 Ford Cutaway, and 2002 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

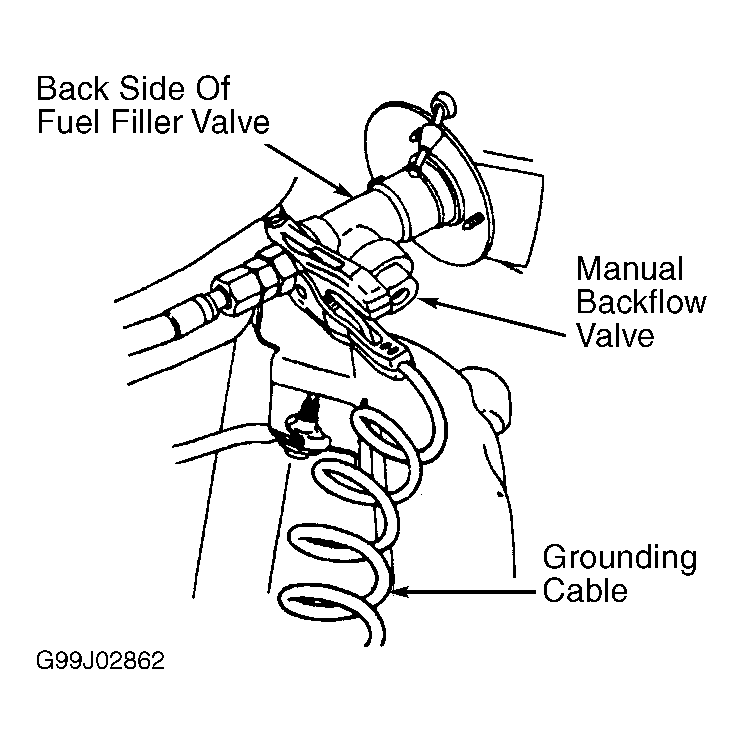

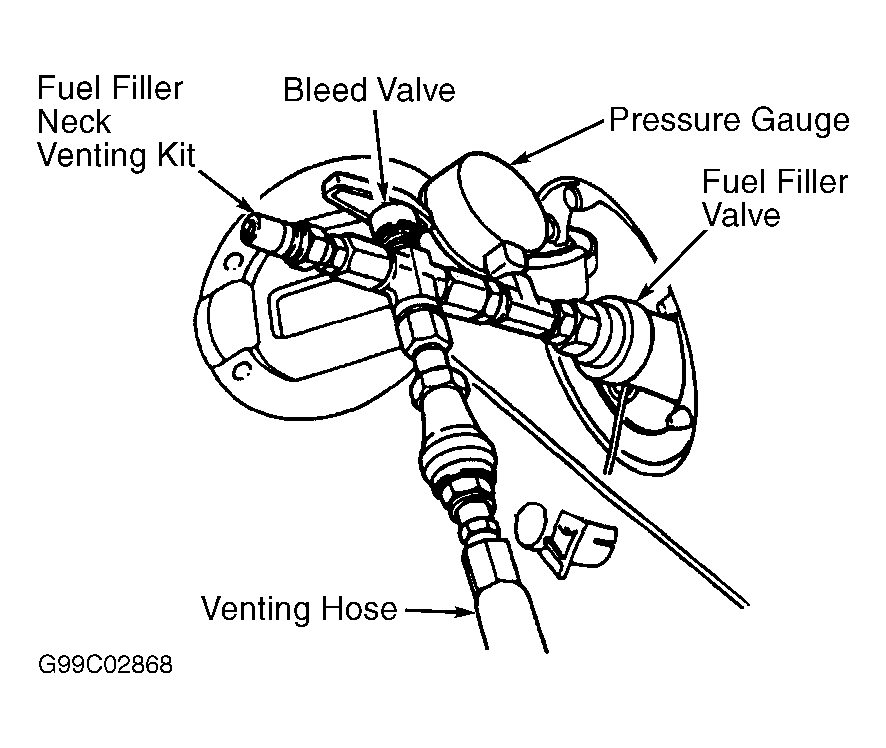

A DVOM, New Generation Star (NGS) tester and NGV Pressure and Venting Kit (134-00114) are necessary to perform the following test procedures. NGV pressure and venting kit includes Rotunda Fuel Filler Neck Venting Kit (134-00117), Grounding Cable (134-00121), Electrical Harness for Venting Tanks (134-00120) and Manual Override (134-00050). See Fig 1-Fig 3
.
Visually inspect fuel system for damaged fuel tanks, solenoids, fuel lines/hoses, fuses, relays and loose or corroded connectors. If any faults are indicated, repair as necessary. If no faults are indicated and system will not vent, proceed with TESTING (CROWN VICTORIA) , TESTING (ECONOLINE) or TESTING (F150) .
