Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the bolts and the skid plate (4x4 only).

Fig 1: Removing Skid Plate (4X4 Only)
Courtesy of FORD MOTOR CO.
Remove bolts and the air deflector.

Fig 2: Removing Air Deflector
Courtesy of FORD MOTOR CO.
Remove the cooler tube bracket and nut, then the fluid cooler tube bracket. Separate the fluid cooler tube bracket from the tubes.

Fig 3: Removing Cooler Tube Bracket
Courtesy of FORD MOTOR CO.

Fig 4: Removing Fluid Cooler Tube Bracket
Courtesy of FORD MOTOR CO.
Disconnect, and remove each fluid cooler tube, as necessary.

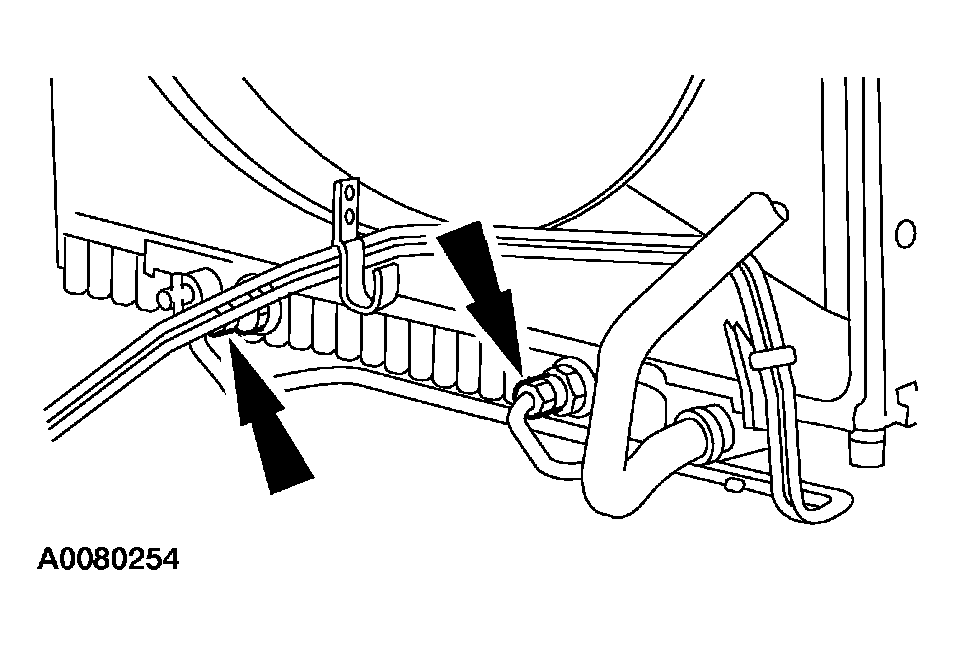

Fig 5: Removing Each Fluid Cooler Tubes (1 Of 2)
Courtesy of FORD MOTOR CO.

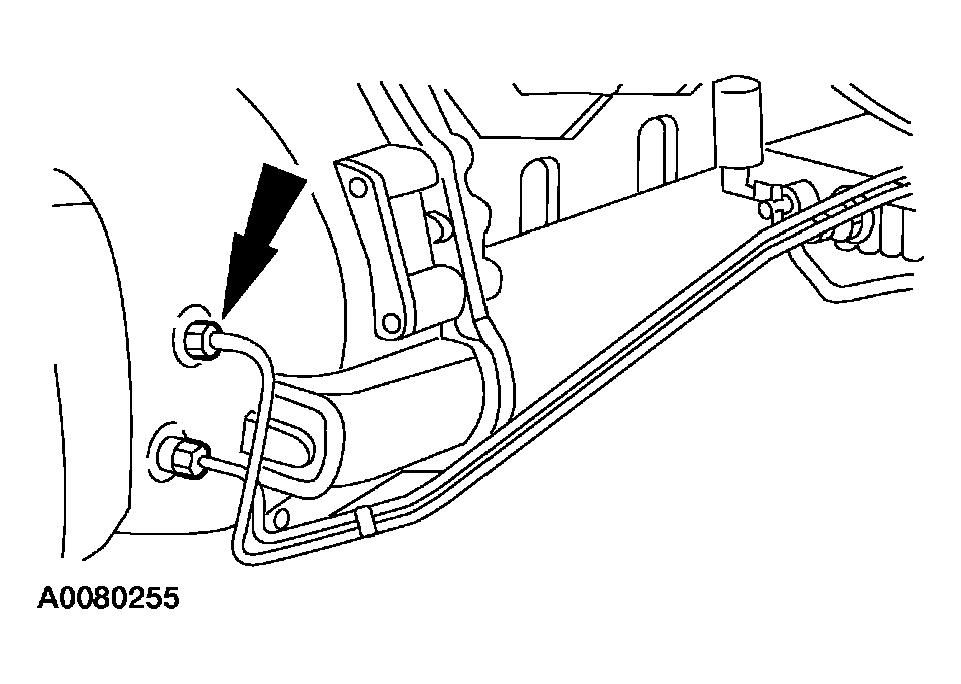

Fig 6: Removing Each Fluid Cooler Tubes (2 Of 2)

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Fill the transmission with Motorcraft MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting MERCON® specifications.
- Check for leaks.

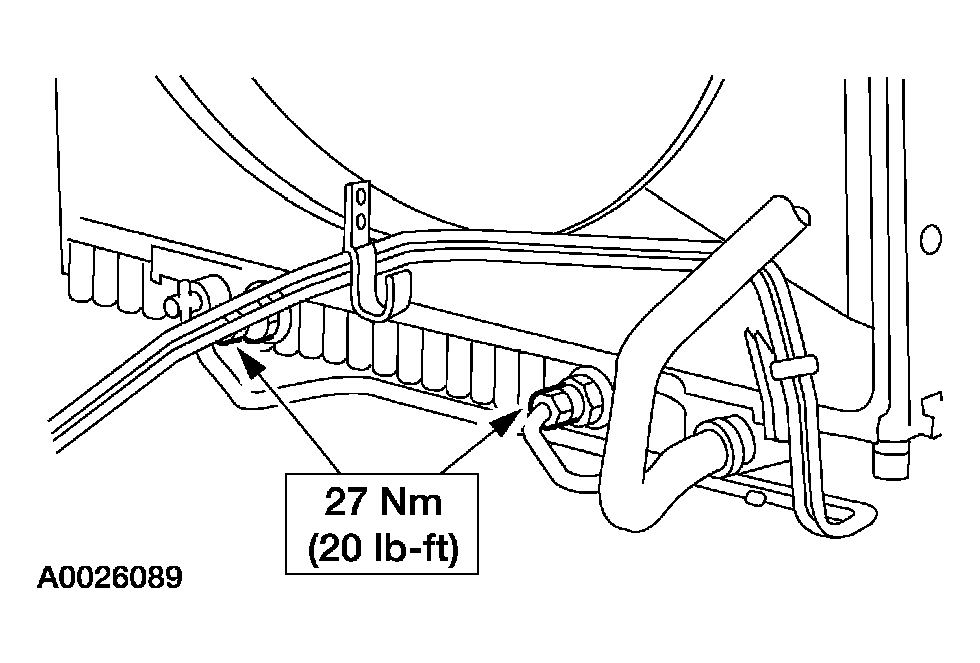

  Fig 7: Installing Each Fluid Cooler Tubes (1 Of 2)
  Courtesy of FORD MOTOR CO.

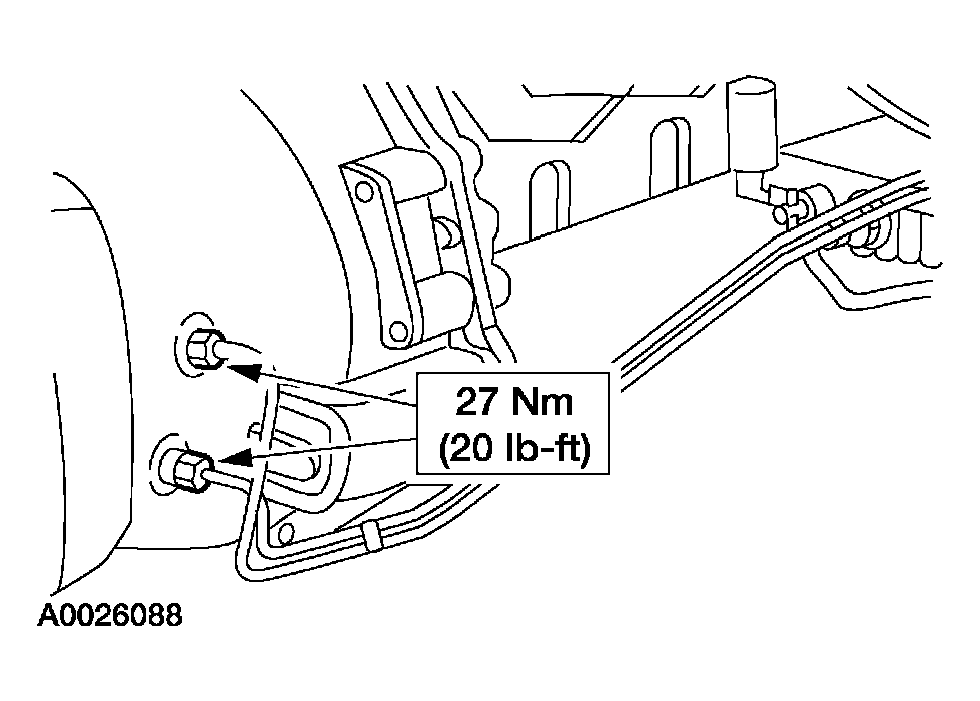

  Fig 8: Installing Each Fluid Cooler Tubes (2 Of 2)
  Courtesy of FORD MOTOR CO.
