Engine Emission Control - 5.4L (3V), 6.8L (3V)
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not remove any part of the engine emission control system. Operating the engine without the engine emission control system will reduce fuel economy and engine ventilation. This will weaken engine performance and shorten engine life.
The gasoline engine emission control system consists of the:
- positive crankcase ventilation (PCV) system.

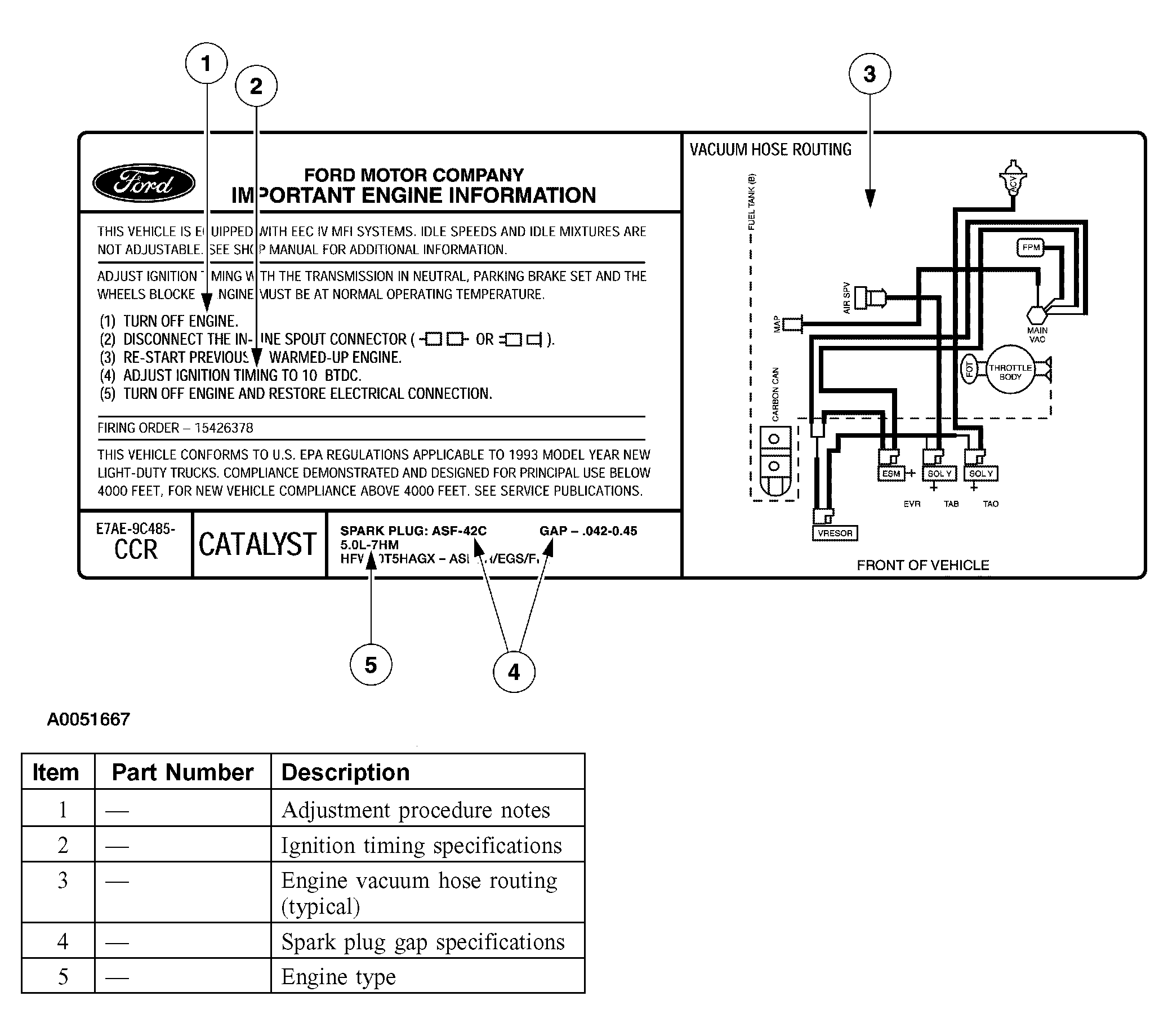

The Vehicle Emission Control Information (VECI) decal shows:
- components of the emission control system.
- the correct vacuum hose routing.
- the color stripe of the vacuum hoses.
For additional information, refer to IDENTIFICATION CODES .
The heated PCV system uses intake manifold vacuum to ventilate the crankcase and return the fumes to the intake manifold for combustion.
The PCV valve:
- controls the amount of ventilating air and blow-by gases going to the intake manifold.
- is an integral part of the LH valve cover.
- is not serviceable.
The PCV heater element:
- heats the ventilating air and blow-by gases going to the intake manifold.
