Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Open the tailgate.

Fig 1: Identifying Open Tailgate
Courtesy of FORD MOTOR CO.

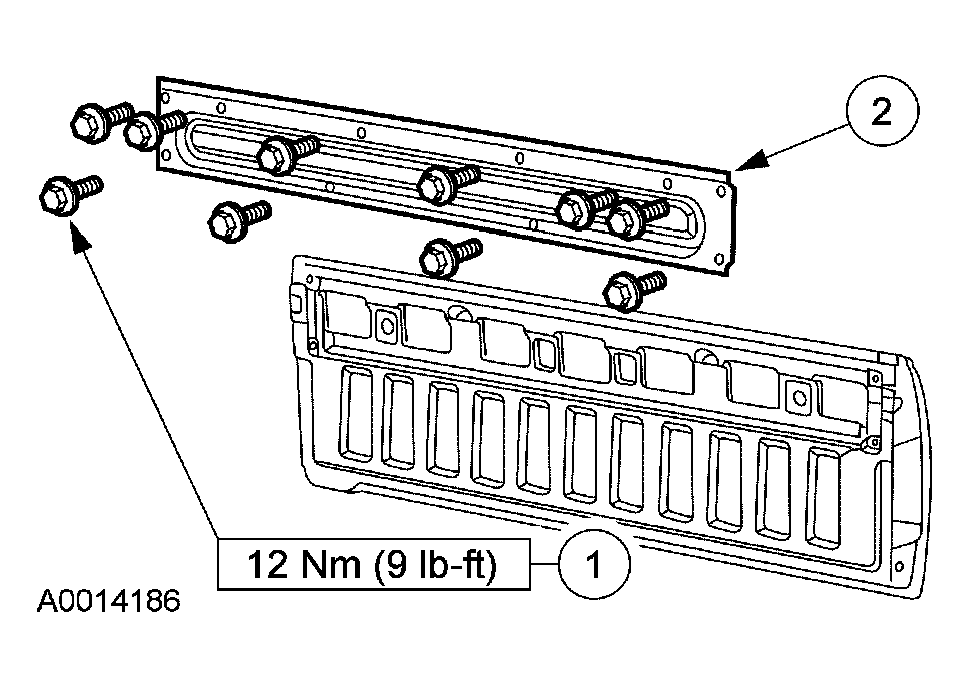

Remove the tailgate access panel.
1. Remove the screws.
2. Remove the tailgate access panel.

  Fig 2: Removing Tailgate Access Panel - With Torque Specifications
  Courtesy of FORD MOTOR CO.

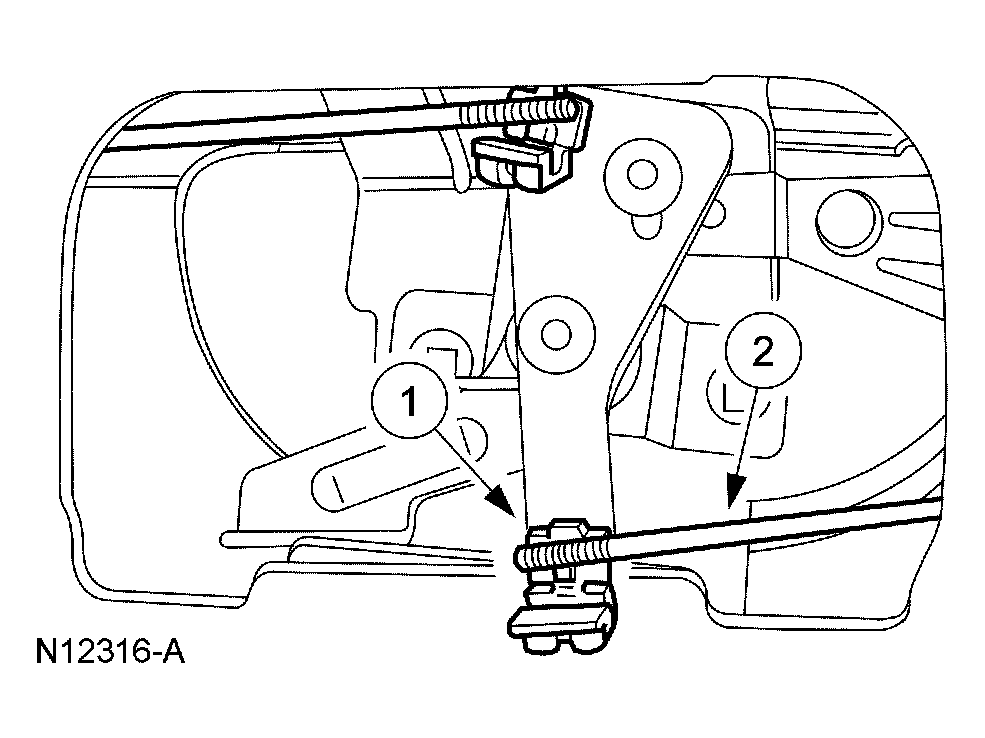

Disconnect the tailgate latch remote control actuating rods.
1. Open the locking clips.
2. Disconnect the rods.

  Fig 3: Disconnecting Tailgate Latch Remote Control Actuating Rods
  Courtesy of FORD MOTOR CO.

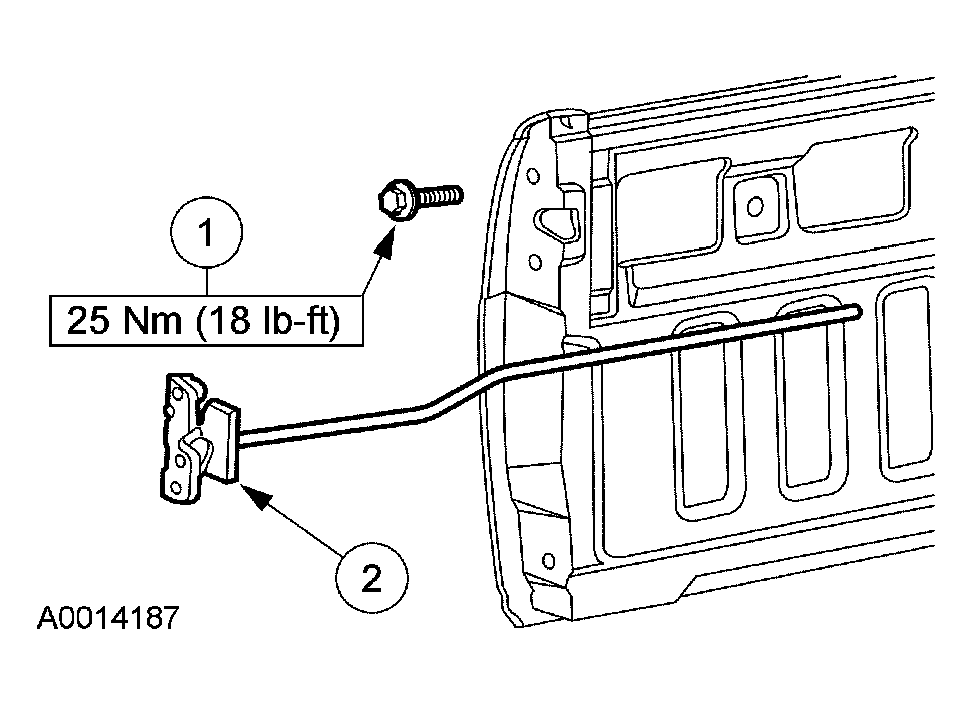

Remove the tailgate latch (RH shown, LH similar).
1. Remove the two screws.
2. Remove the tailgate latch.

  Fig 4: Removing Tailgate Latch - With Torque Specifications
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If necessary, use multi-purpose grease spray to lubricate the latches.
