Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Position the watershield aside.
  3. Remove the push button rod.
    1. Remove the push button rod guide clip.
    2. Remove the push button rod.

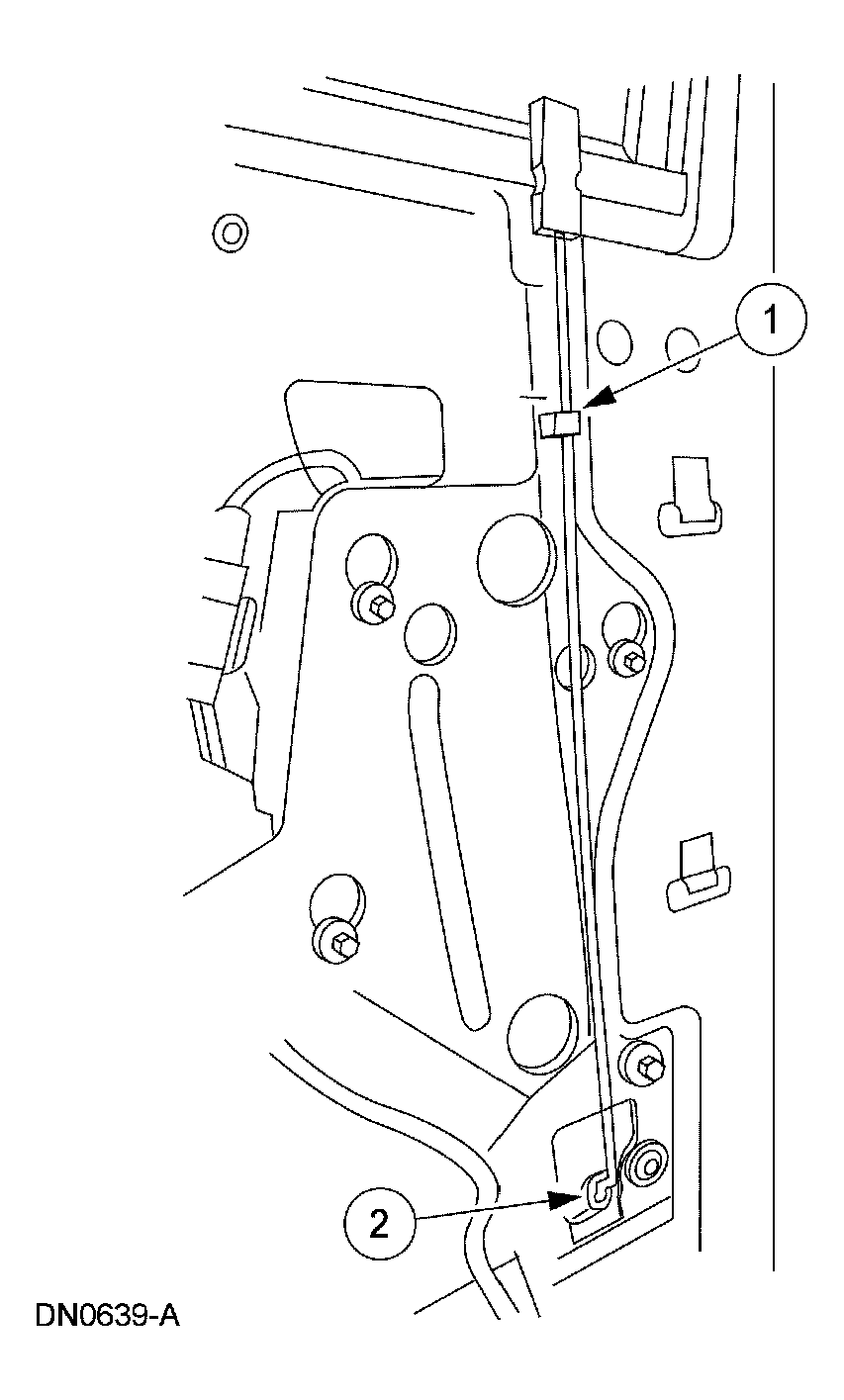

      Fig 1: Removing Push Button Rod
      G03911858Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
