Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the rear door push button rod. For additional information, refer to PUSH BUTTON ROD - REAR, CREW CAB  in this article.
  3. Remove the rear door push button rod linkage. For additional information, refer to PUSH BUTTON ROD - LINKAGE, HORIZONTAL, REAR DOOR, CREW CAB  in this article.
    4. CAUTION: When drilling out the push button rod bellcrank rivet, do not oversize the hole in the door sheet metal.
  4. Remove the push button rod bellcrank.
    1. Remove the rivet mandrel (center).
    2. Drill out the rivet.
    3. Remove the push button bellcrank.

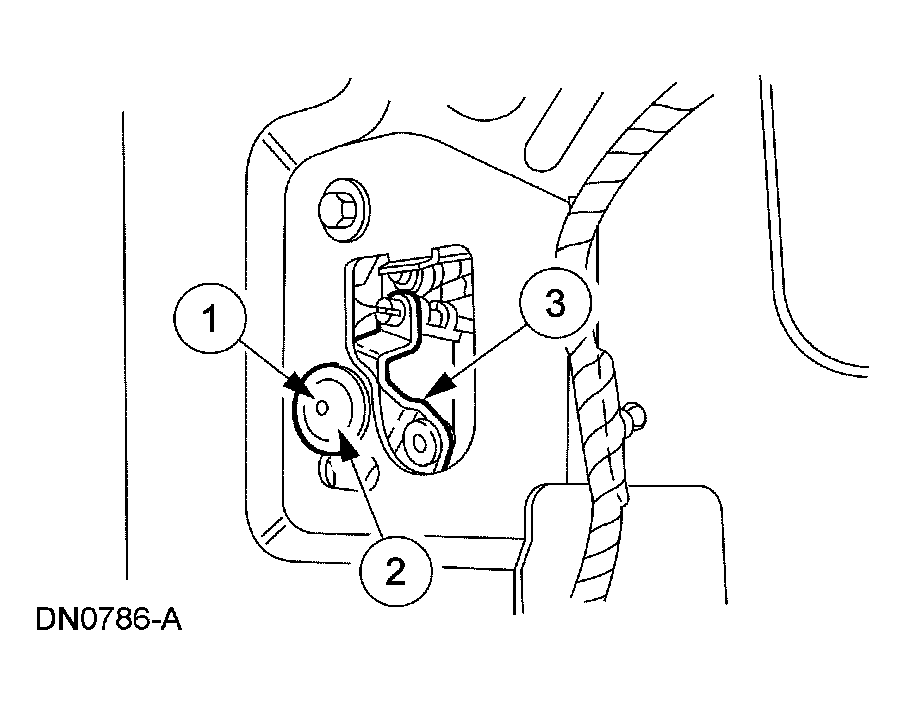

      Fig 1: Removing Push Button Rod Bellcrank
      G03911862Courtesy of FORD MOTOR CO.
    5. NOTE: If a new component is to be installed, refer to the Ford Master Parts Catalog for specific part information.
  5. To install, reverse the removal procedure.
