Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The left front door with power windows and power mirror is shown. The other doors and vehicles without power windows or power mirrors are similar.

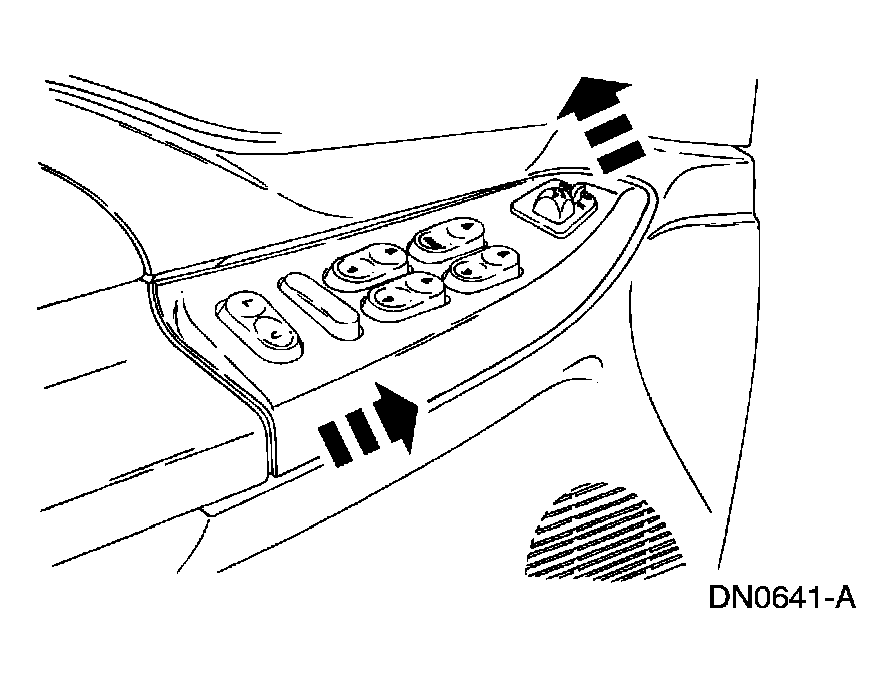

    Fig 1: Removing Door Command Center To Gain Access To Electrical Connectors
    G03911865Courtesy of FORD MOTOR CO.
  1. Remove the door command center enough to gain access to the electrical connectors.
  2. Disconnect the electrical connectors.

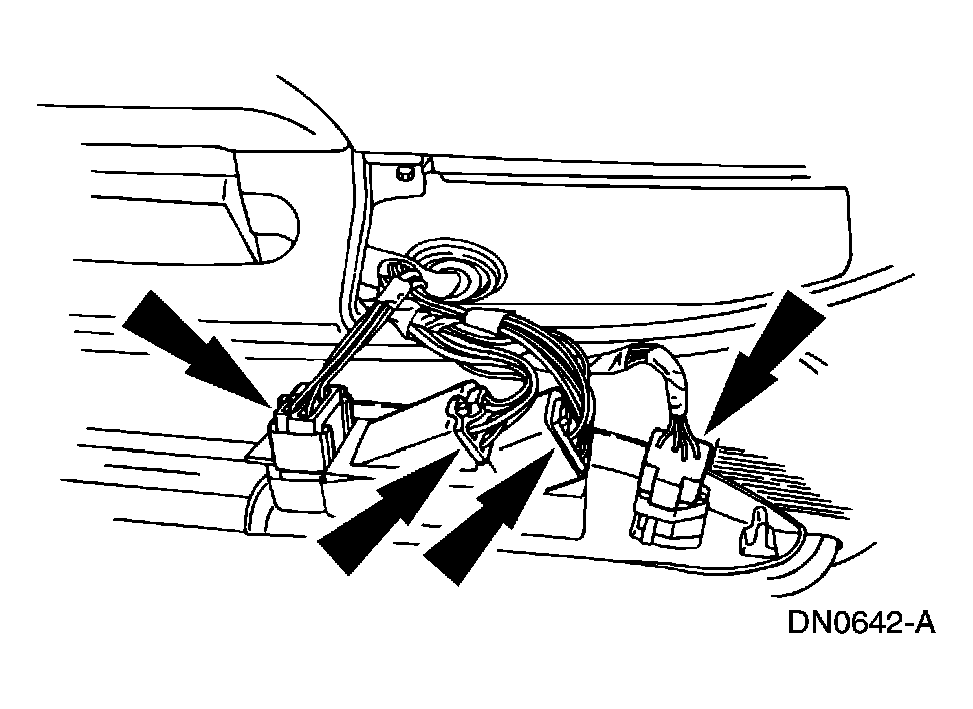

    Fig 2: Disconnecting Electrical Connectors
    G03911866Courtesy of FORD MOTOR CO.
  3. Remove the door command center.
  4. Release the front and back retaining clips on the door lock control switch and remove the switch.
    Fig 3: Releasing Front And Back Retaining Clips On Door Lock Control Switch
    G03911867Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
