Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Position the watershield aside.
    3. CAUTION: When drilling out the latch remote control rivets, do not oversize the holes in the door sheet metal. Make sure not to exceed a 6.25 mm (.25 in) drill bit.
  3. Remove the rear door latch remote control.
    1. Disconnect the necessary actuating rods and cables.
    2. Remove the rivets.
    3. Remove the rear door latch remote control.

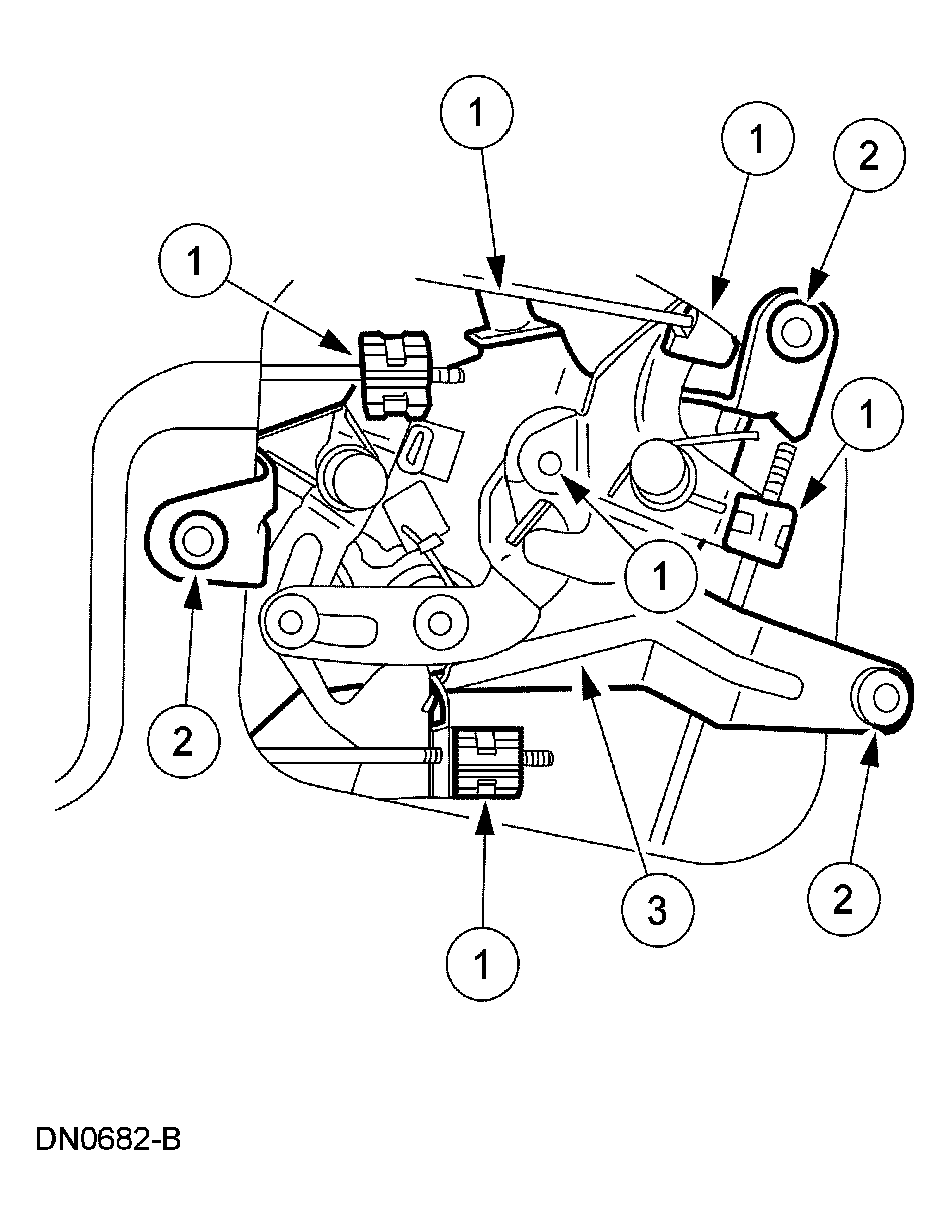

      Fig 1: Removing Rear Door Latch Remote Control
      G03925990Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
