Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the rear door speaker. For additional information, refer to SPEAKERS .
  3. Release the lower door latch cable and conduit from the remote control.
    1. Open the locking clip and release the cable.
    2. Release the cable conduit.

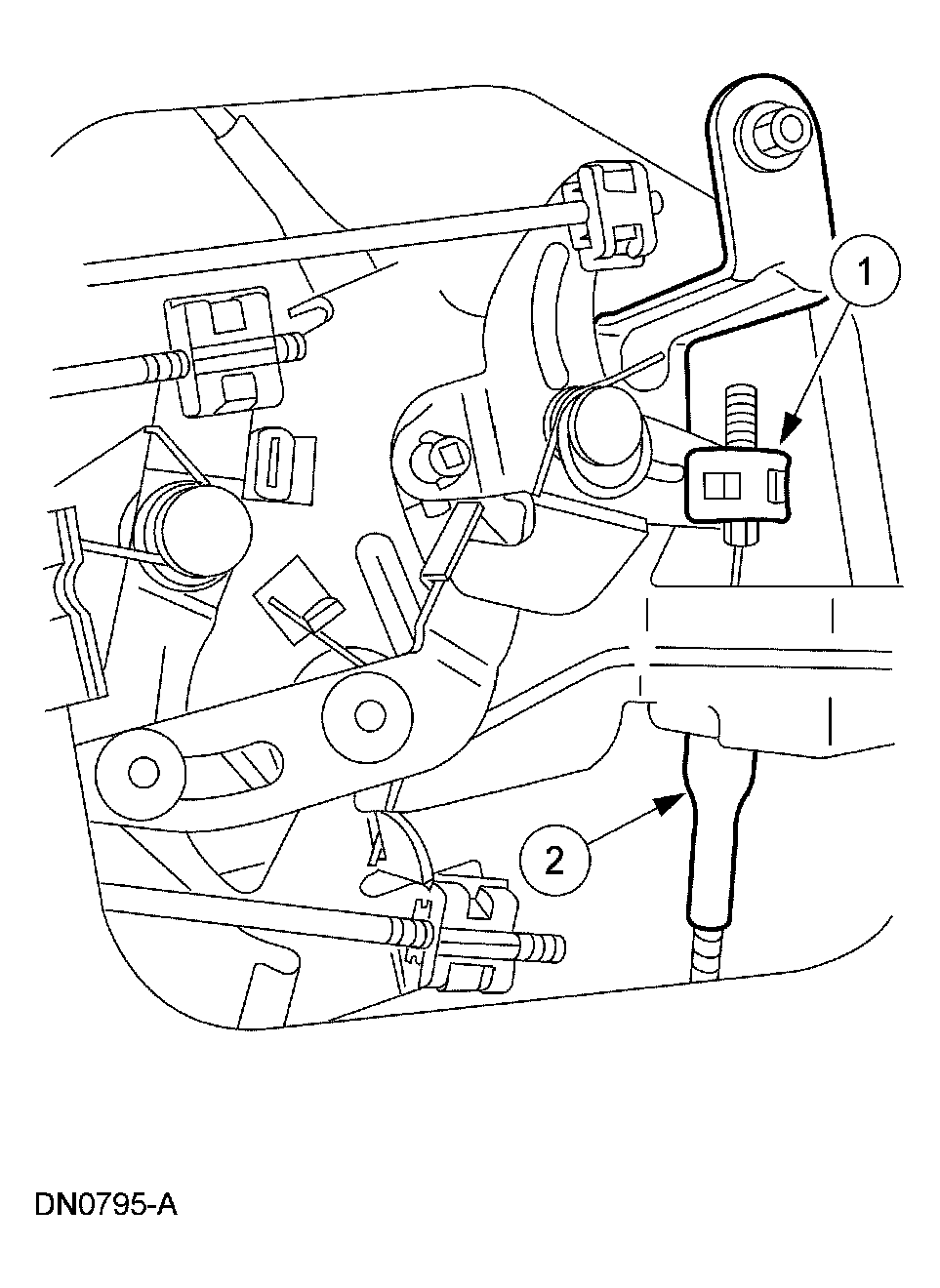

      Fig 1: Opening Locking Clip And Releasing Cable
      G03925942Courtesy of FORD MOTOR CO.
  4. Remove the lower rear door latch.
    • Remove the screws.
      Fig 2: Removing Screws - With Torque Specifications
      G03925943Courtesy of FORD MOTOR CO.
    5. NOTE: If a new component is to be installed, refer to the Ford Master Parts Catalog for specific part information. The linkage must be adjusted during installation. For additional information, refer to LATCH CABLE ADJUSTMENT - REAR, SUPERCAB  in this article.
  5. To install, reverse the removal procedure.
