Passenger Air Bag Module: Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Position the passenger air bag module into the instrument panel. Install the passenger air bag module retaining nuts and bolts.

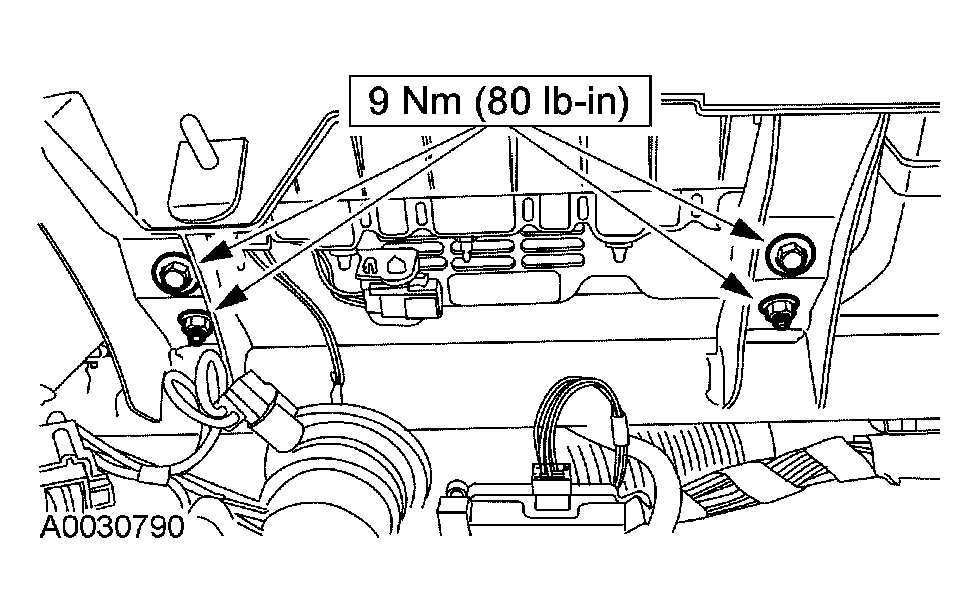

Fig 1: Installing Passenger Air Bag Module Retaining Nuts And Bolts - With Torque Specifications
Courtesy of FORD MOTOR CO.
Install the passenger air bag module door.
- Align the passenger air bag module door and push in seating the retaining clips.
  - Place six new offset fasteners onto the deployment door.

    Fig 2: Installing Passenger Air Bag Module Door
    Courtesy of FORD MOTOR CO.
Connect the passenger air bag module electrical connector.

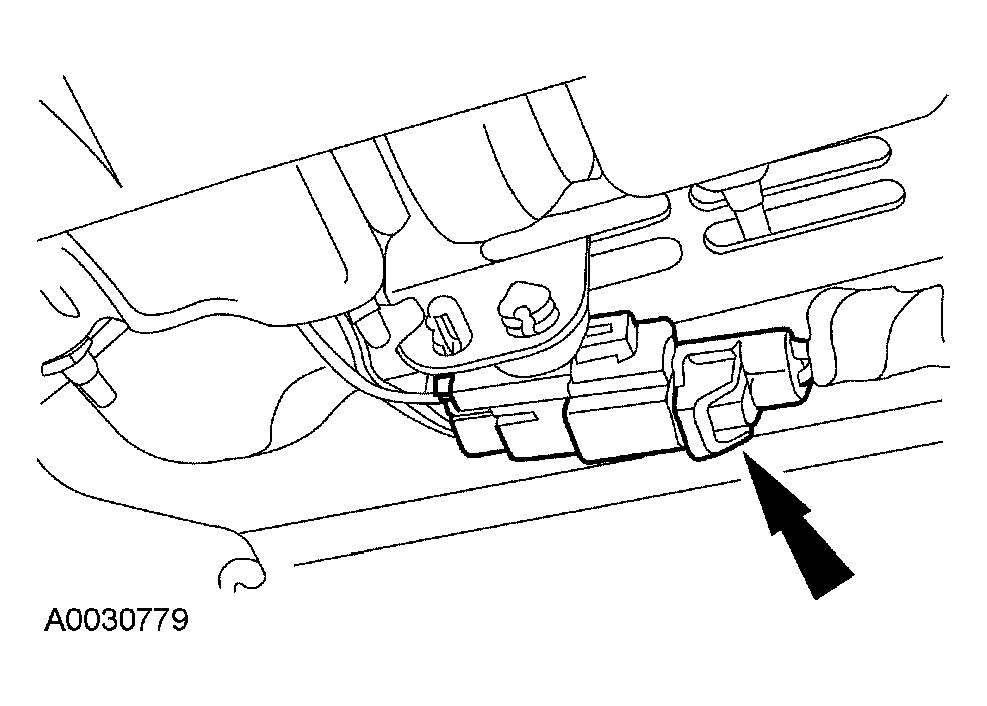

Fig 3: Locating Passenger Air Bag Module Electrical Connector
Courtesy of FORD MOTOR CO.
Close the glove compartment.
Repower the system. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING in this article.
