Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    Regular Cab and SuperCab vehicles

  1. Depower the supplemental restraint system (SRS). For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering in SUPPLEMENTAL RESTRAINT SYSTEM .

    2. All vehicles

  2. Remove the instrument panel cluster finish panel.
    • Disconnect the electrical connectors.

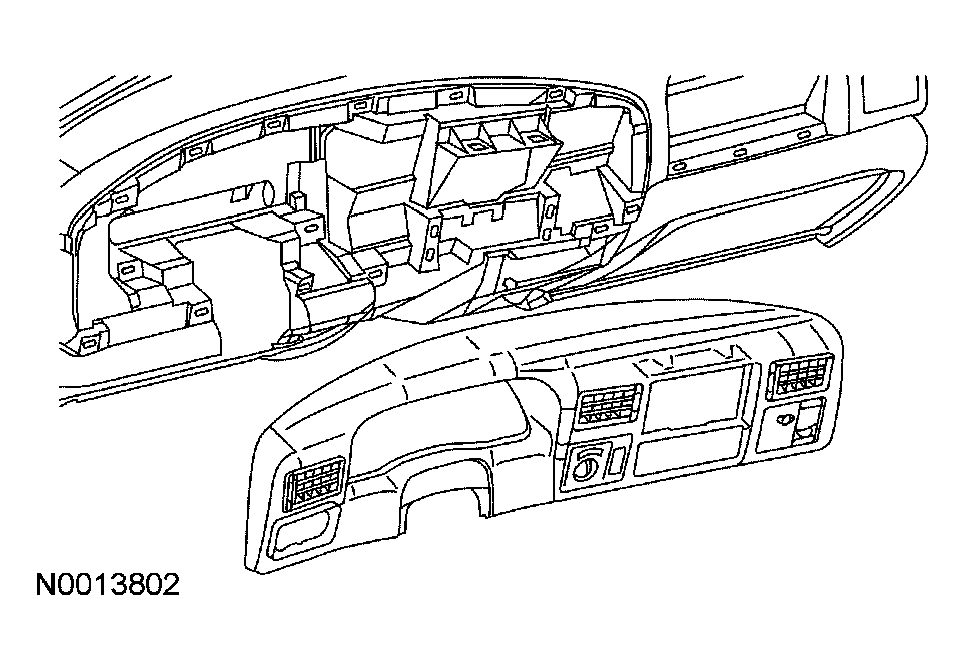

      Fig 1: Removing Instrument Panel Cluster Finish Panel
      G03925863Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
