Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. Disconnect the intake air temperature 2 (IAT2) electrical connector and wiring harness retainer.

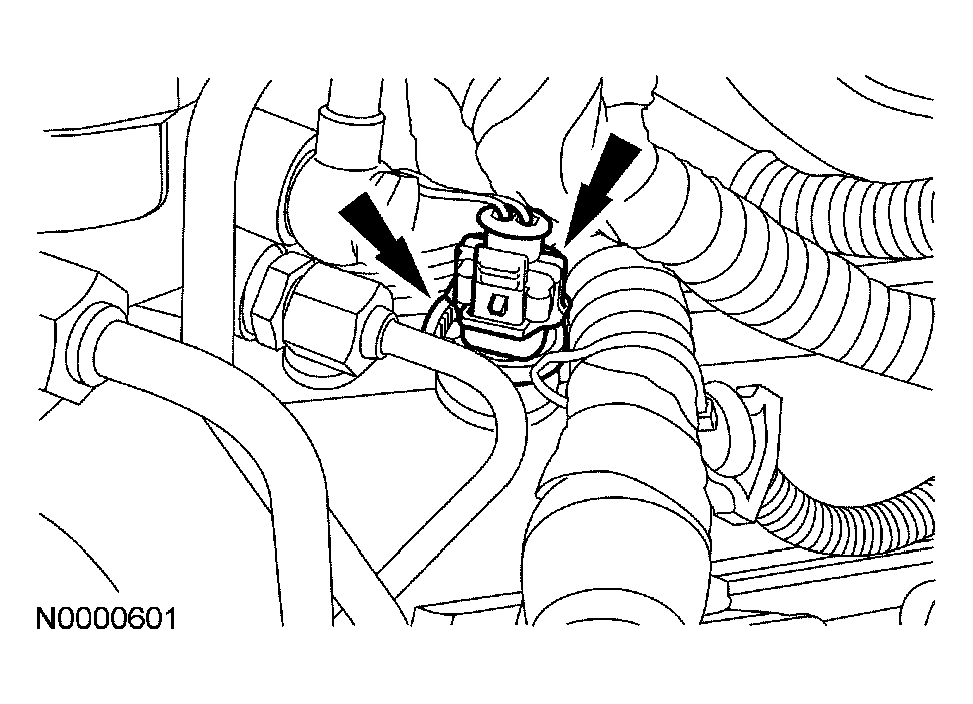

    Fig 1: Disconnecting Intake Air Temperature 2 Electrical Connector
    G03922562Courtesy of FORD MOTOR CO.
  3. Remove the IAT2 sensor.

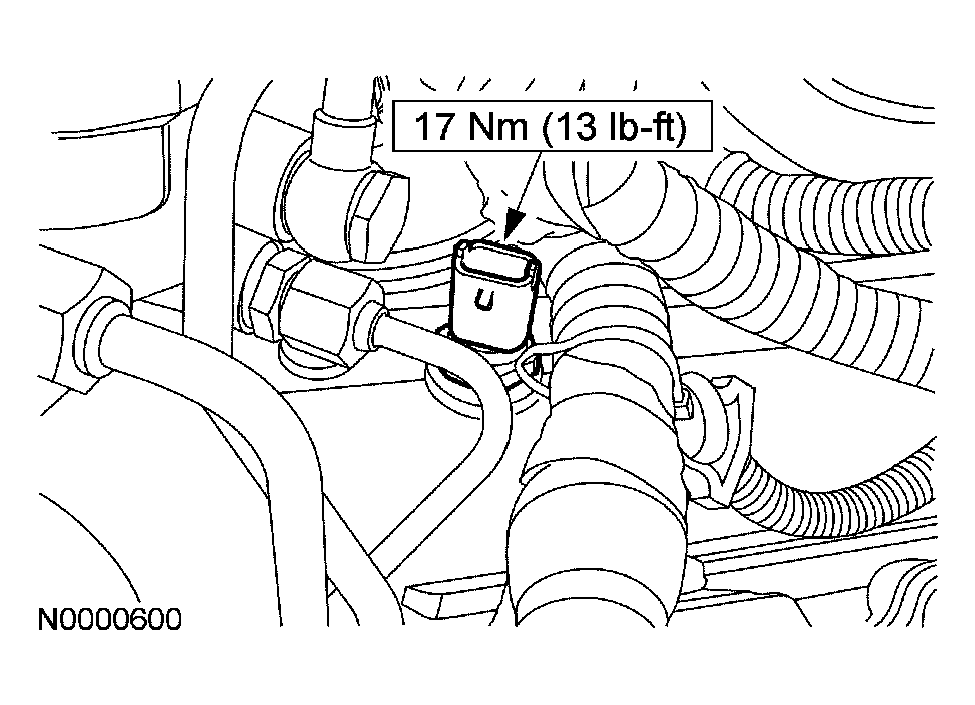

    Fig 2: Removing/Installing IAT2 Sensor With Torque Specifications
    G03922563Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
