Trailer Brake Control (TBC) Module: Removal
WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the manual control lever knob is missing, a separate service part is available, the entire module does not need to be replaced.
- Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL -- CENTER FINISH PANEL .

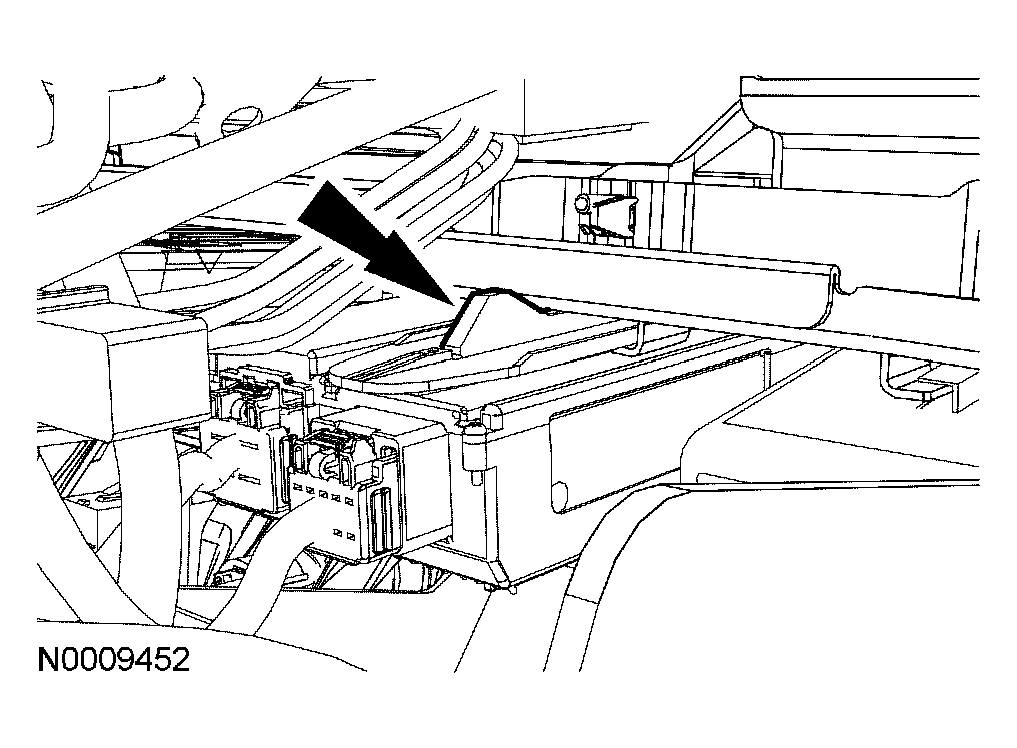

- Press down on the tab and push the trailer brake control (TBC) module part-way out of the instrument panel.

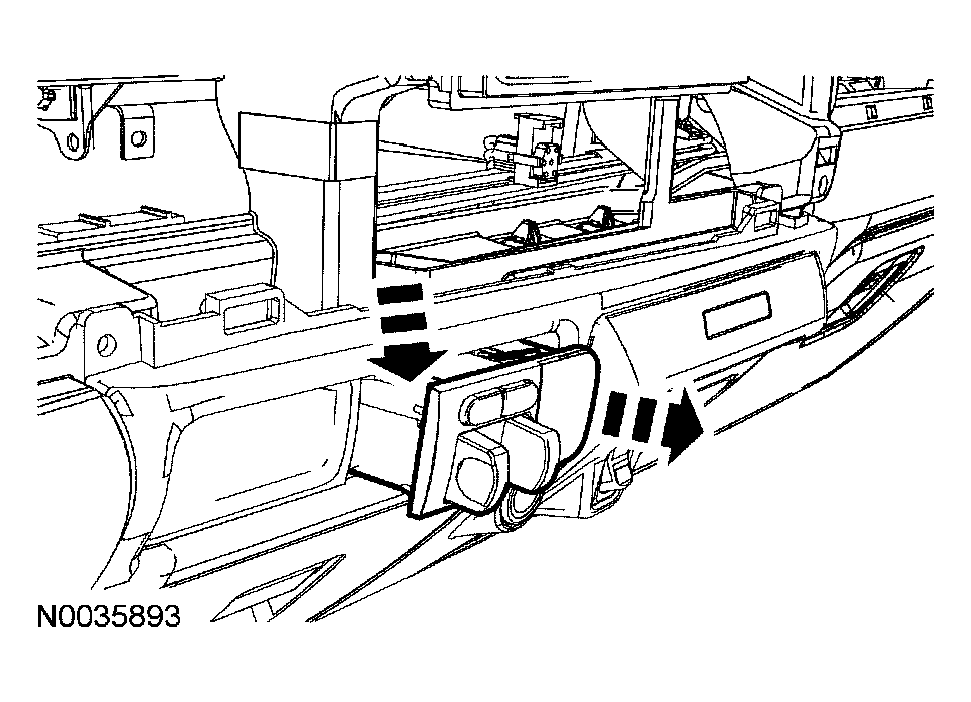

- Grasp the TBC module just behind the plastic face and, while carefully pushing down, pull the TBC module out of the instrument panel.
- Disconnect the 2 TBC module electrical connectors.
CAUTION:
Do not use any tools to remove the trailer brake control module. If tools are used, damage to the module may result.
CAUTION:
There is a detent on the TBC module clip that will contact the instrument panel. Do not use excessive force during removal or damage to the module or instrument panel may result.
CAUTION:
Do not push or pry on the plastic face of the module. Do not use tools to remove the TBC module.
