Trailer Brake Control (TBC) Module: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

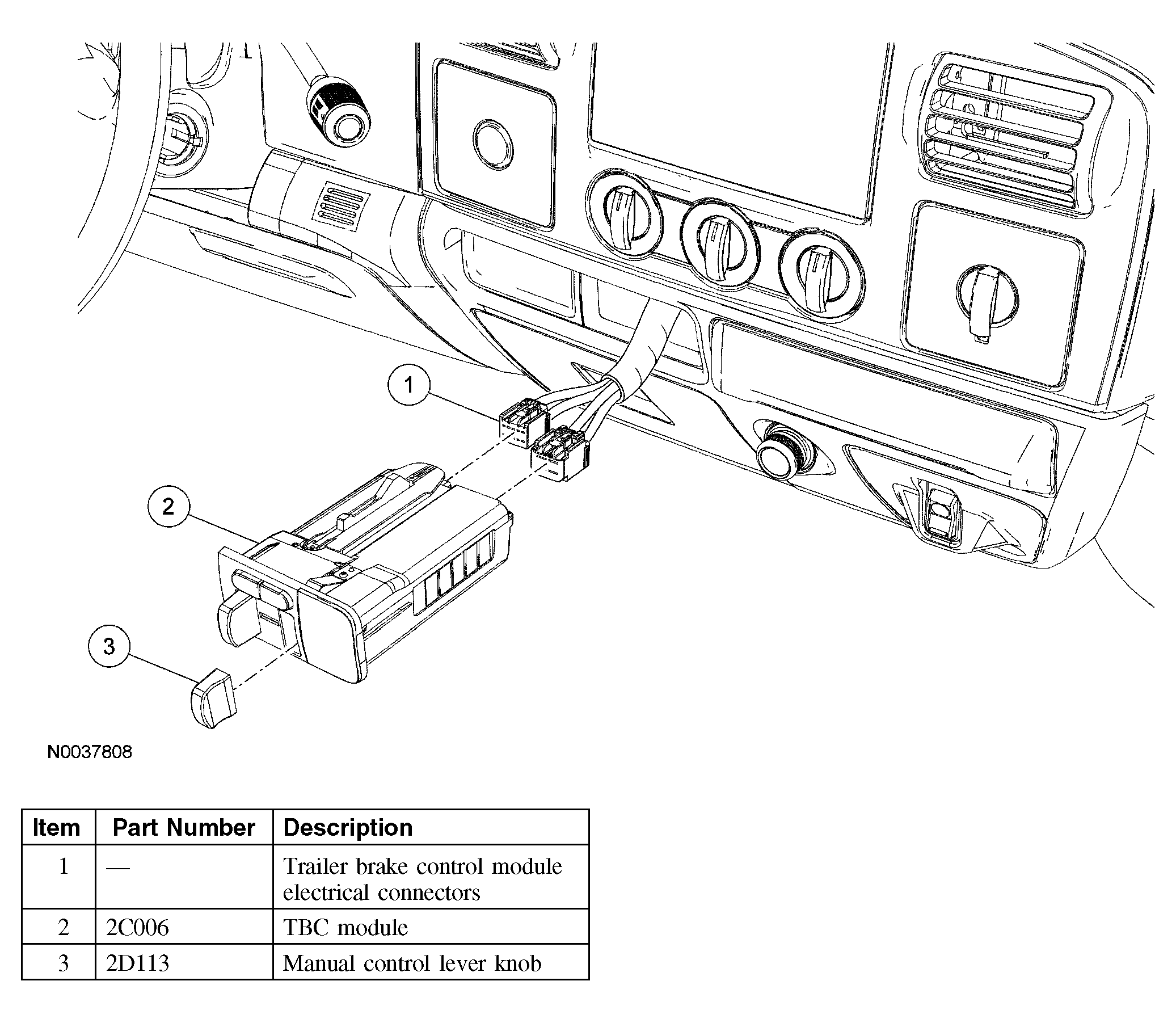

Fig 1: Identifying Trailer Brake Control (TBC) Module
G03919475Courtesy of FORD MOTOR CO.
